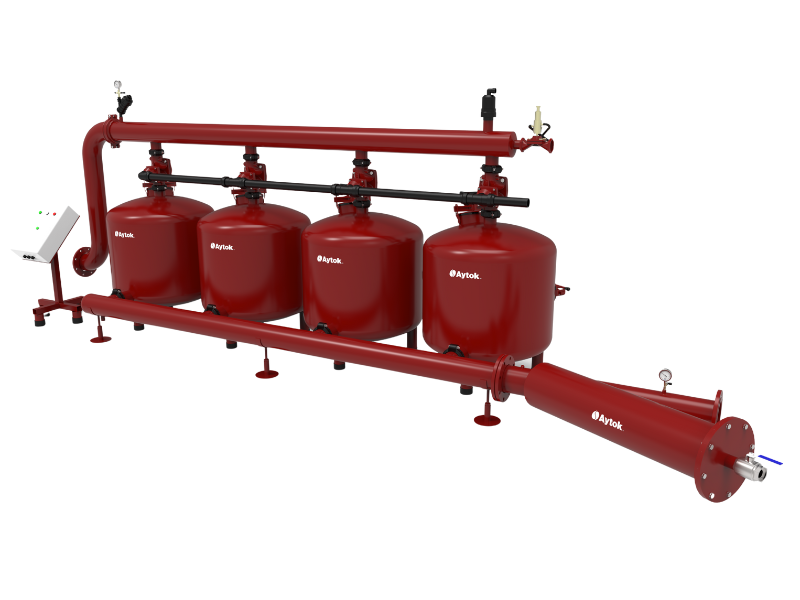

Aytok Automatic Sand Media Filter Systems With Metal Screen Filters

Automatic Sand Media Filter Systems With Metal Screen Filters.


Screen Material
:
SS304 / SS316L

Maximum Working Pressure
:
8 Bar (116 PSI)

Minimum Working Pressure
:
1 Bar (15 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Time interval or Pressure Differential

Backwash Controlling Unit
:
Electronic (AC/DC) Control

Filtration Degree
:
20-2000 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
Call for pricing
Manufacturer: Aytok Filters
SKU: A323030YE
Delivery date 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Automatic Sand Media Filter Systems With Metal Screen Filters

  • Screen Material: SS304 / SS316L
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 1 Bar (15 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)

Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
A323030YE 3"2X3"SAND MEDIA FILTER (24"Tank) + 1 X YE30 20-40
A433030YE 4"3X3"SAND MEDIA FILTER (24"Tank) + 1 X YE40 40-70
A443030YE 4"4X3"SAND MEDIA FILTER (24"Tank) + 1 X YE40S 10"BODY 70-100
A553030YE 5"5X3"SAND MEDIA FILTER (24"Tank) + 1 X YE50 100-130
A663030YE 6"6X3"SAND MEDIA FILTER (24"Tank) + 1 X YE60 130-180
A643060YE 6"4X3"SAND MEDIA FILTER (36"Tank) + 1 X YE60S 150-200
A853060YE 8"5X3"SAND MEDIA FILTER (36"Tank) + 1 X YE80 200-250
A863060YE 8"6X3"SAND MEDIA FILTER (36"Tank) + 1 X YE80 250-300
A873060YE 8"7X3"SAND MEDIA FILTER (36"Tank) + 2 X YE60 300-350
A1083060YE 10"8X3"SAND MEDIA FILTER (36"Tank) + 2 X YE60S 350-400
A1093060YE 10"9X3"SAND MEDIA FILTER (36"Tank) + 2 X YE80 400-450
A10103060YE 10"10X3"SAND MEDIA FILTER (36"Tank) + 2 X YE80 450-500



Aytok filtration system

Aytok Automatic Sand Media Filter Systems With Metal Screen Filters

  • Screen Material: SS304 / SS316L
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 1 Bar (15 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)

Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
A323030YE 3"2X3"SAND MEDIA FILTER (24"Tank) + 1 X YE30 20-40
A433030YE 4"3X3"SAND MEDIA FILTER (24"Tank) + 1 X YE40 40-70
A443030YE 4"4X3"SAND MEDIA FILTER (24"Tank) + 1 X YE40S 10"BODY 70-100
A553030YE 5"5X3"SAND MEDIA FILTER (24"Tank) + 1 X YE50 100-130
A663030YE 6"6X3"SAND MEDIA FILTER (24"Tank) + 1 X YE60 130-180
A643060YE 6"4X3"SAND MEDIA FILTER (36"Tank) + 1 X YE60S 150-200
A853060YE 8"5X3"SAND MEDIA FILTER (36"Tank) + 1 X YE80 200-250
A863060YE 8"6X3"SAND MEDIA FILTER (36"Tank) + 1 X YE80 250-300
A873060YE 8"7X3"SAND MEDIA FILTER (36"Tank) + 2 X YE60 300-350
A1083060YE 10"8X3"SAND MEDIA FILTER (36"Tank) + 2 X YE60S 350-400
A1093060YE 10"9X3"SAND MEDIA FILTER (36"Tank) + 2 X YE80 400-450
A10103060YE 10"10X3"SAND MEDIA FILTER (36"Tank) + 2 X YE80 450-500



Aytok filtration system
