Automatic-Sand-Media-Filter-Systems-With-Self-Clean-Screen-filters-Hydrocyclone Aytok-Automatic-Sand-Media-Filter-Systems-With-Self-Clean-Screen-filters-Hydrocyclone

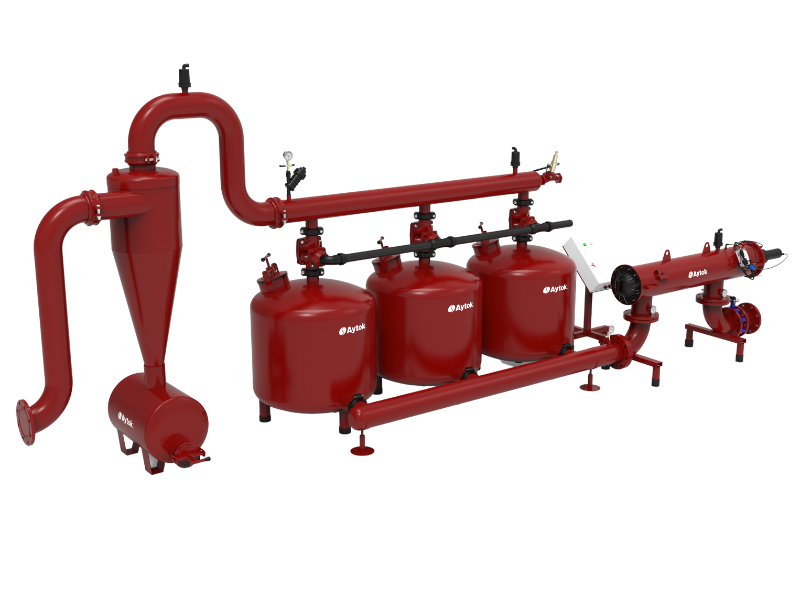

Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

Be the first to review this product

Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone.


Screen Material
:
SS316

Maximum Working Pressure
:
8 Bar (116 PSI)

Minimum Working Pressure
:
2 Bar (29 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Time interval or Pressure Differential

Backwash Controlling Unit
:
Electronic (AC/DC) Control

Filtration Degree
:
20-2000 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
Call for pricing
Manufacturer: Aytok Filters
SKU: MHA223020VEF
Delivery date 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

  • Screen Material: SS316
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-2000 micron (µ)
  • Painting Method: Electrostratic Powder Coating Painting
  • Material: Epoxy Polyester



Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
MHA223020VEF 2"HYDROCYCLONE+2"2X2"SAND MEDIA FILTER(18"TANK)+1 X VEF102F 10-20
MHA323030VEF 3"HYDROCYCLONE+2"2X3"SAND MEDIA FILTER(24"TANK)+1 X VEF103 20-50
MHA433030VEF 4"HYDROCYCLONE+4"3X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 50-70
MHA443030VEF 4"HYDROCYCLONE+4"4X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 70-100
MHA553030EF 5"HYDROCYCLONE+5"5X3"SAND MEDIA FILTER(24"TANK)+1 X EF105 100-130
MHA663030EF 6"HYDROCYCLONE+6"6X3"SAND MEDIA FILTER(24"TANK)+1 X EF106 130-180
MHA643060EF 6"HYDROCYCLONE+6"4X3"SAND MEDIA FILTER(36"TANK)+1 X EF126S 150-200
MHA853060EF 2X5"HYDROCYCLONE+8"5X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 200-250
MHA863060EF 2X6"HYDROCYCLONE+8"6X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 250-300
MHA873060EF 2X6"HYDROCYCLONE+8"7X3"SAND MEDIA FILTER(36"TANK)+2 X EF106 300-350
MHA1083060EF 2X6"HYDROCYCLONE+10"8X3"SAND MEDIA FILTER(36"TANK)+2 X EF126S 350-400
MHA1063080EF 3X6"HYDROCYCLONE+10"6X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 400-450
MHA1073080EF 3X6"HYDROCYCLONE+10"7X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 450-500
MHA1083080EF 3X6"HYDROCYCLONE+10"8X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 500-550
MHA1293080EF 4X6"HYDROCYCLONE+12"9X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 550-640



Aytok filtration system

Aytok Automatic Sand Media Filter Systems With Self Clean Screen Filters Hydrocyclone

  • Screen Material: SS316
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-2000 micron (µ)
  • Painting Method: Electrostratic Powder Coating Painting
  • Material: Epoxy Polyester



Availability: 8-10 weeks



CODE SYSTEM CAPACITY (m³/h)
MHA223020VEF 2"HYDROCYCLONE+2"2X2"SAND MEDIA FILTER(18"TANK)+1 X VEF102F 10-20
MHA323030VEF 3"HYDROCYCLONE+2"2X3"SAND MEDIA FILTER(24"TANK)+1 X VEF103 20-50
MHA433030VEF 4"HYDROCYCLONE+4"3X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 50-70
MHA443030VEF 4"HYDROCYCLONE+4"4X3"SAND MEDIA FILTER(24"TANK)+1 X VEF104 70-100
MHA553030EF 5"HYDROCYCLONE+5"5X3"SAND MEDIA FILTER(24"TANK)+1 X EF105 100-130
MHA663030EF 6"HYDROCYCLONE+6"6X3"SAND MEDIA FILTER(24"TANK)+1 X EF106 130-180
MHA643060EF 6"HYDROCYCLONE+6"4X3"SAND MEDIA FILTER(36"TANK)+1 X EF126S 150-200
MHA853060EF 2X5"HYDROCYCLONE+8"5X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 200-250
MHA863060EF 2X6"HYDROCYCLONE+8"6X3"SAND MEDIA FILTER(36"TANK)+1 X EF128 250-300
MHA873060EF 2X6"HYDROCYCLONE+8"7X3"SAND MEDIA FILTER(36"TANK)+2 X EF106 300-350
MHA1083060EF 2X6"HYDROCYCLONE+10"8X3"SAND MEDIA FILTER(36"TANK)+2 X EF126S 350-400
MHA1063080EF 3X6"HYDROCYCLONE+10"6X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 400-450
MHA1073080EF 3X6"HYDROCYCLONE+10"7X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 450-500
MHA1083080EF 3X6"HYDROCYCLONE+10"8X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 500-550
MHA1293080EF 4X6"HYDROCYCLONE+12"9X4"SAND MEDIA FILTER(48"TANK)+2 X EF128 550-640



Aytok filtration system
