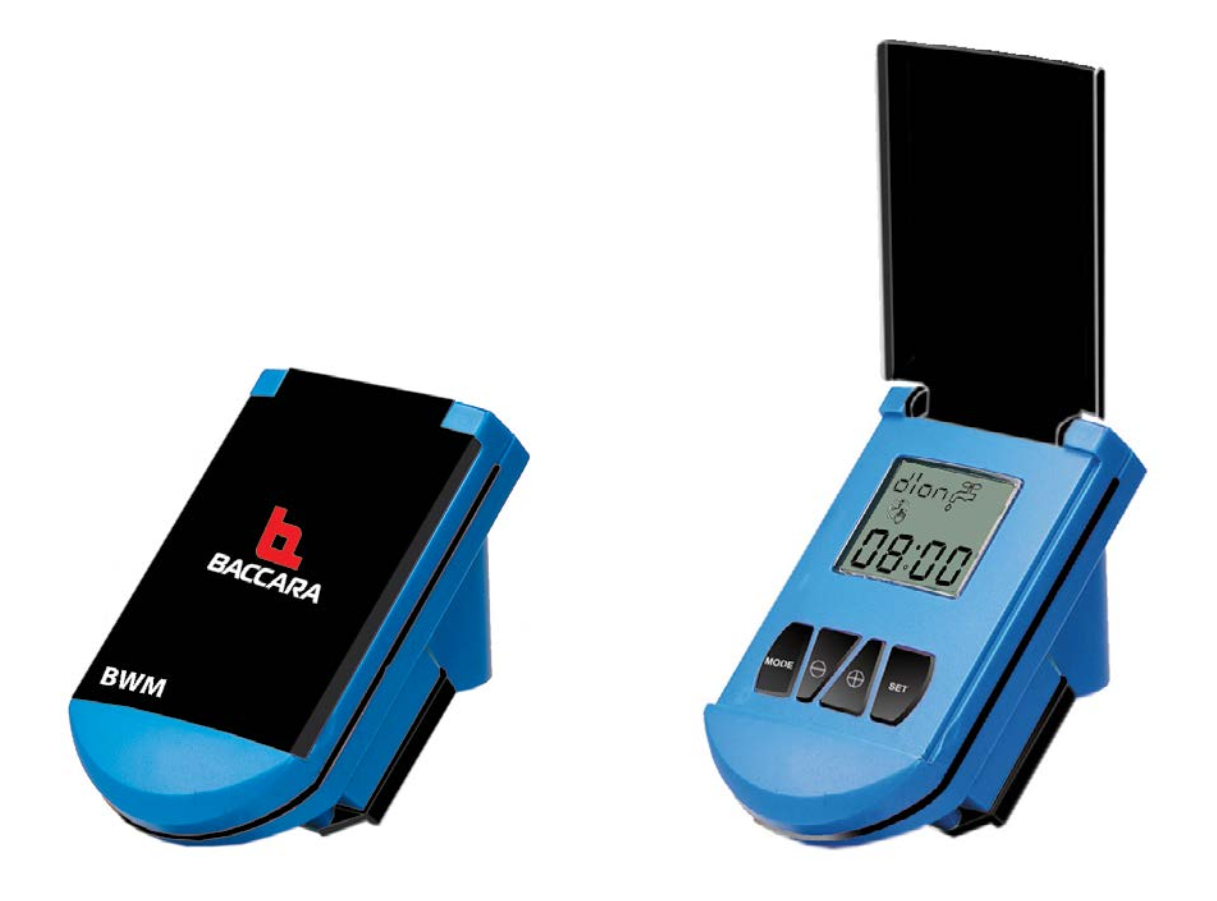

G75-BWM | Water meter controller without Valve

Operating Temp.
:
-10° - 60° C
Options
:
Solar panel, charger
Battery
:
9V alkaline battery included
Mounting
:
Horizontal, vertical, wall mounting
123,00 €
Manufacturer: Baccara
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Highlights

  • Single station water volume controller
  • Connected to a water meter with pulse outlet
  • Opens at a set time and closes when required water volume has been reached
  • Operating temp: -10° to 60°C
  • Option: Solar panel, charger
  • Battery: 9V alkaline battery included
  • Mounting: Horizontal, vertical, wall mounting

Programming Key Features

Set start time
Set required water volume
Day select
OFF

Technical Data

Operating temperature -10º to 60ºC
Electrical Powered by single 9V alkaline battery; use best quality to
ensure at least one year's autonomous operation
• Back-up memory
• Low battery warning
• Power saving LCD
• Battery included
Mounting Various mounting options :
Directly on a 28mm diameter solenoid in horizontal or
vertical position with adaptor
• Wall mounting with four screws
• Accessories provided
Solenoid Compatible with G75 4latch operator
Measurement units per pulse 100 liters | 1m3 | 10m3 | 100 gallons | 1000 gallons
Software • 24 hours real time clock
• See 'Programming key features' table
Options Solar panel, charger
Standard protection class • Dust and watertight
• IP67 and NEMA 4X

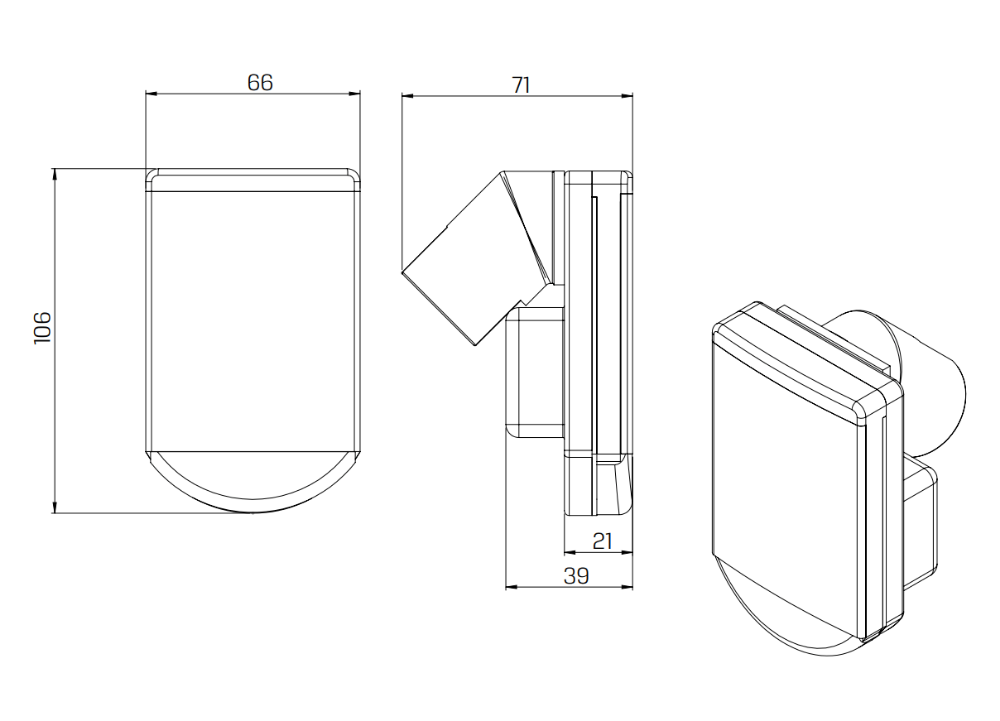

G75-BWM-water-meter-controller-without-valve-dimensions

Highlights

  • Single station water volume controller
  • Connected to a water meter with pulse outlet
  • Opens at a set time and closes when required water volume has been reached
  • Operating temp: -10° to 60°C
  • Option: Solar panel, charger
  • Battery: 9V alkaline battery included
  • Mounting: Horizontal, vertical, wall mounting

Programming Key Features

Set start time
Set required water volume
Day select
OFF

Technical Data

Operating temperature -10º to 60ºC
Electrical Powered by single 9V alkaline battery; use best quality to
ensure at least one year's autonomous operation
• Back-up memory
• Low battery warning
• Power saving LCD
• Battery included
Mounting Various mounting options :
Directly on a 28mm diameter solenoid in horizontal or
vertical position with adaptor
• Wall mounting with four screws
• Accessories provided
Solenoid Compatible with G75 4latch operator
Measurement units per pulse 100 liters | 1m3 | 10m3 | 100 gallons | 1000 gallons
Software • 24 hours real time clock
• See 'Programming key features' table
Options Solar panel, charger
Standard protection class • Dust and watertight
• IP67 and NEMA 4X

G75-BWM-water-meter-controller-without-valve-dimensions
