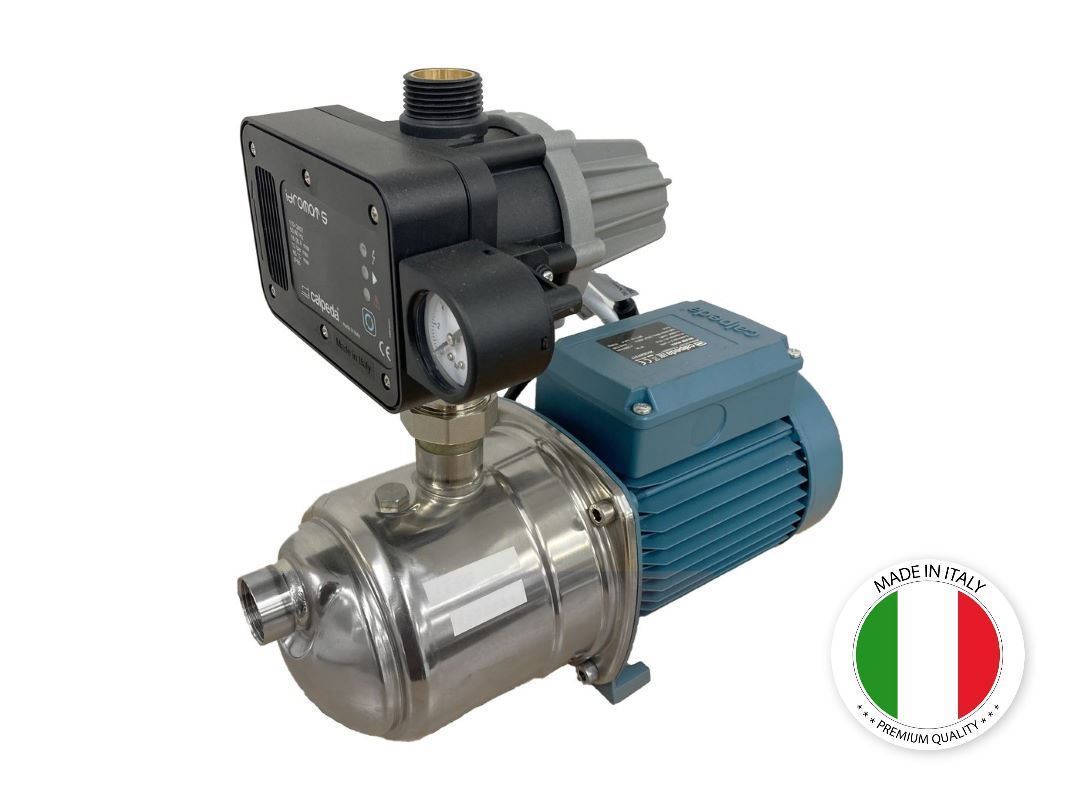

Calpeda MXHLM Horizontal Multistage Pressure Pump with Electronic Pressure Control

Horizontal MULTISTAGE close coupled pressure pumps in stainless steel! Premium quality, reliable, self-priming, compact domestic pump.

Motor Range
:
0.45 KW (0.6 HP) - 1.1 KW (1.5 HP)
Impeller
:
Chrome-nickel steel
Body
:
Stainless steel
Suction lift
:
Up to 8 m
Controller
:
Electronic Idromat 5 Controller
736,00 €
873,00 €
Manufacturer: Calpeda Pumps
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Features

  • Self-Priming Multistage Pump
  • AISI 316L Stainless Steel Body, Impellers & Diffusers
  • Loss of Prime Protection
  • Liquid temperature up to 65 oC
  • Non Return Valve @ Pressure Gauge
  • Suction lift up to 8m
  • Idromat 5 Controller (Restart pressure 1.5 bar for PI15 models, 2.2 bar for PI22 models)
  • Drinking water AS4020 certification pending
  • Made in Italy

Applications:

  • For water supply.
  • For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
  • Universal pump, for domestic use, for civil and industrial applications, for garden use and irrigation.

Extra safety

against running dry, with the suction port above pump axis and with the self-priming construction.

Reliable

All hydraulic parts in contact with the pumped liquid are of stainless steel.
For liquids from -15 °C to 110 °C.

Robust

Single-piece barrel casing.

Compact

Single-piece lantern bracket and base.

Greater protection

against leakage, with the pump casing cover separated from the motor shield.
Possibility of inspecting the seal through the side apertures between the two walls.
Greater protection against water entering the motor from outside provided by an extension of the pump casing around the lantern bracket.

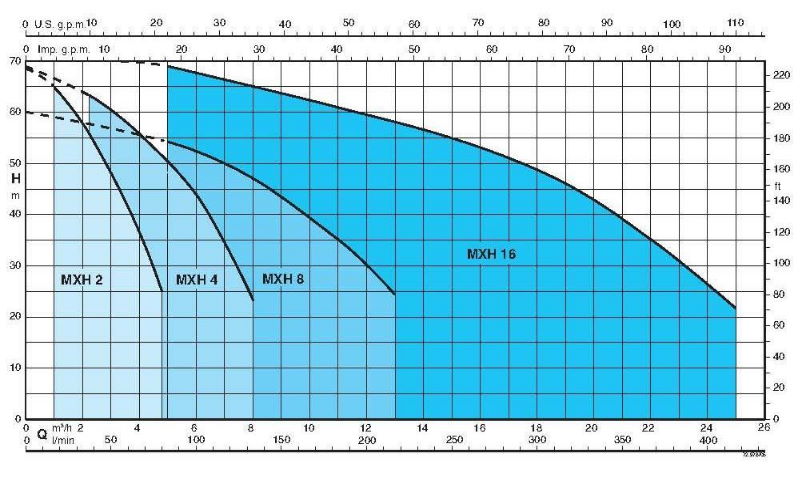

Calpeda-MXHM-curves

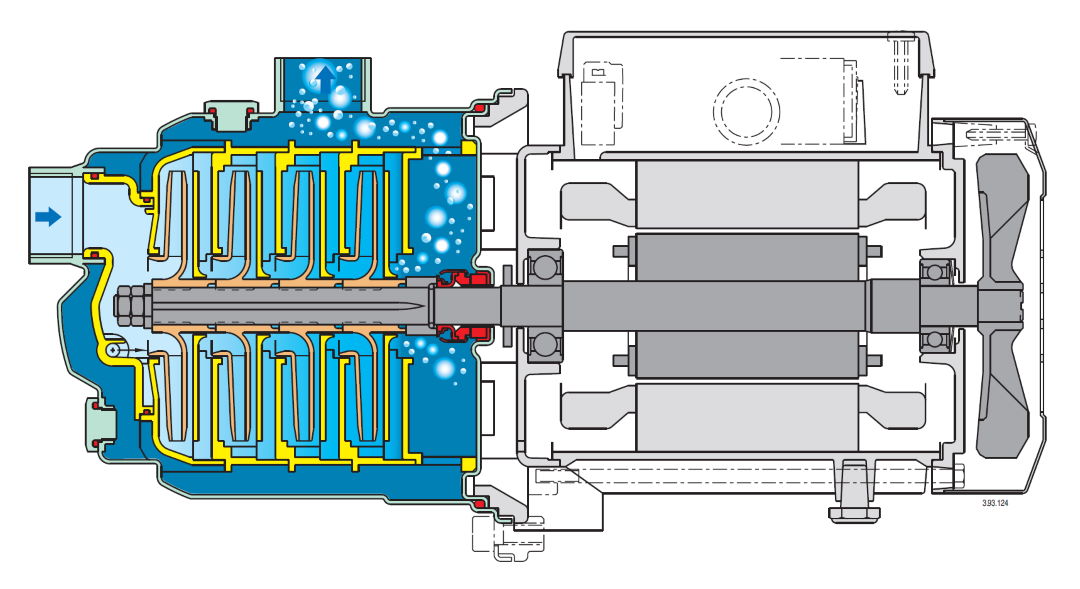

Calpeda-MXA-Features

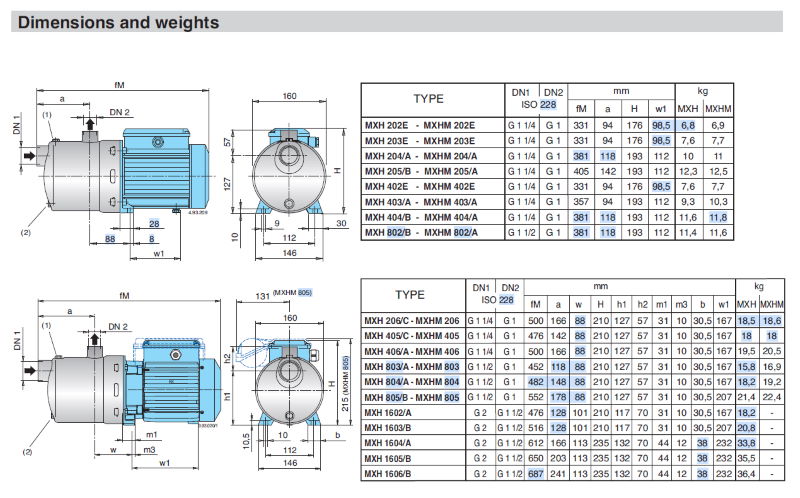

Calpeda-MXHM-Dimensions-Weights

Features

  • Self-Priming Multistage Pump
  • AISI 316L Stainless Steel Body, Impellers & Diffusers
  • Loss of Prime Protection
  • Liquid temperature up to 65 oC
  • Non Return Valve @ Pressure Gauge
  • Suction lift up to 8m
  • Idromat 5 Controller (Restart pressure 1.5 bar for PI15 models, 2.2 bar for PI22 models)
  • Drinking water AS4020 certification pending
  • Made in Italy

Applications:

  • For water supply.
  • For clean liquids, without abrasives, which are non-aggressive for stainless steel (with suitable seal materials, on request).
  • Universal pump, for domestic use, for civil and industrial applications, for garden use and irrigation.

Extra safety

against running dry, with the suction port above pump axis and with the self-priming construction.

Reliable

All hydraulic parts in contact with the pumped liquid are of stainless steel.
For liquids from -15 °C to 110 °C.

Robust

Single-piece barrel casing.

Compact

Single-piece lantern bracket and base.

Greater protection

against leakage, with the pump casing cover separated from the motor shield.
Possibility of inspecting the seal through the side apertures between the two walls.
Greater protection against water entering the motor from outside provided by an extension of the pump casing around the lantern bracket.



Calpeda-MXHM-curves
Calpeda-MXA-Features
Calpeda-MXHM-Dimensions-Weights
