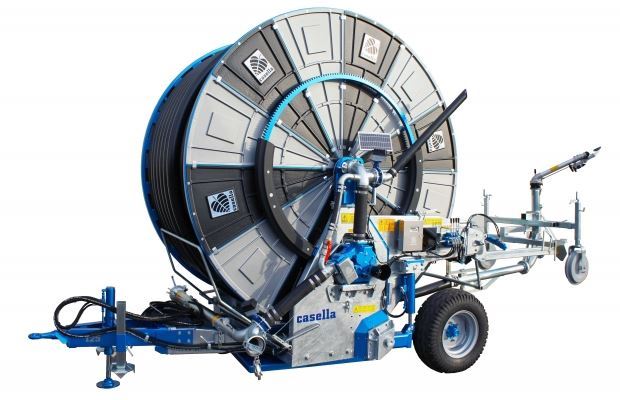

Casella HY-TURBINE P 125/400 Hard Hose Irrigator

Squad type (sitting on the ground while operated) cutting-edge technology, turbine driven hard hose travelling irrigator for high volume and pressure irrigation applications.

Hose Length
:
400 m
Hose Diameter
:
125 mm
Hose Thickness
:
9 mm
Working Pressure
:
90 - 150 psi
Water Flow
:
1200 - 1800 l/min
Effective Spray Width (Diameter)
:
90 - 100 m
Total Irrigated Area
:
31 - 45 Hectares for 40 mm rainfall in 8 days
Sprinkler
:
DuCaR JET 200
Weight
:
4200 kg
Mechanism
:
4-Speed Gear Box directly integrated to turbine
Rewind Speed Control
:
Solar-Powered Hydro Computer 260 with slow closing shut-off mechanism
Call for pricing
Manufacturer: Casella
SKU: HY-TURB P
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

CASELLA Hard Hose Irrigator HY-TURBINE P 125/400

Applications

Agriculture: Medium crops, pastures and dairy farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

  • Heavy duty design
  • Hot dip galvanised chassis
  • Individaully controlled hydraulick tyre lifting system
  • Travel shut-off mechanism
  • High efficient turbine
  • 4-speed Italian made gear box: By adjusting the most efficient turbine rotation and speed, you can save energy.
  • Sensitive speed control
  • Solar energy powered computer 260 system will allow you to adjust the rewinding speed, pausing at the beginning and end of the run and slowly closing the solenoid valve at the end of run to stop the water in the entire system.
  • Hydraulic rotation of platform (360°) with tractor connection
  • Hydraulic lifting for sprinkler trolley
  • Trolley with 2 Concrate Wheels and skid
  • Flexible hose for water inlet
  • Double (two sides) water inlets
  • Tyres : 11.5 / 80-15.3
  • Mechanical front brackets
  • Hdraulic front foot
  • Joint for PTO drive shaft
  • Water Flow : 1200 - 1800 l/min
  • Comes with Ducar JET 200 Sprinkler Head
  • Excellent Water Uniformity
  • Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
  • Easy and safe operation
  • Very low labour requirement : The Cassella HY-TURB-P can easily be operated by one man and the labour consists mostly of driving a tractor.
  • Made in Italy



This machine is specifically designed for the highest stability and durability for irrigation applications require long and big hose sizes. The machine can be configured with hose diameter up to 140 mm and 450 m length. Its hydraulic control mechanism will allow you to run the machine securely when it sits on the ground.

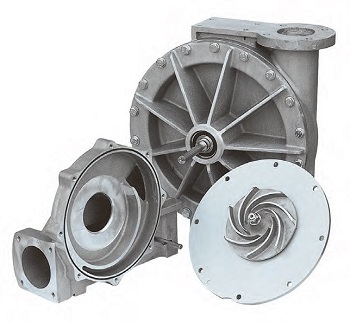

Casella Turbine

CASELLA Turbine

This type of machines picks the power necessary
to the hose recovery by exploiting
the flow of water through a turbine: Two solutions
are available:

1 - The classical turbine which has been used over 15 years; large diameter and solid aluminium alloy body and bronze impellers with closed blades. Both components have been precision engineered by numerical control lathe for accurate coupling and minimization of pressure losses. Stainless steel shaft with Widia seal ensure a longer life even in the presence of sand and other impurities.


2 - New volumetric turbine conceived for operation with even lower pressure losses and recommended flows over 50 to 60 m3/h.


The construction is in die-cast aluminium processed on CNC centre with stainless steel shafts and Widia seal, for operation with electronic compensation for the LT-LLT-LLTS models.

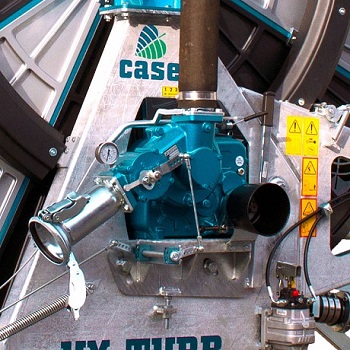

The gear box is directly connected with turbine and ring gear with ultimate technology in order to provide minimum pressure loss and enhanced performance for the hose reel.
HY-TURB-M-110-400-Turbine
Casella Hydraulic Lift
 Hydraulic pump and lifting system for trolley.

Casella Hydro Control 260

Hose re-winding control 5 to 250 m/h.
During irrigation the back-lit display shows:
irrigator recovery speed in m/h, remaining
length to be rewound, remaining time to the
end of irrigation.

Solar energy powered rewinding speed control panel.

Casella Computer
HY-TURB-M-110-400 Pipe Sizes

Largest diameters on all major connection pipes to save energy.

HY-TURB-M-110-400 double inlet

1. Strong Double Water Inlet

2.Flexible hose connection to reduce vibrations

HY-TURB-M-110-400-Drum

Big Cassella Quality Drum

HY-TURB-M-110-400-drum-support

Support for Big Drum

HY-TURB-S-75-300-Wheel

Wide wheels for maximum stability

Casella label
Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
20 0,78 3 44 34 112 463,3 28 122 3846 0,95 7,2
20 0,78 4 56 38 125 548,33 33 145 4534 1,12 7,3
20 0,78 5 70 42 138 616,7 37 163 5538 1,37 6,7
22 0,86 3 44 37 121 566,7 34 150 4534 1,12 7,5
22 0,86 4 56 40 131 680,0 41 180 5024 1,24 8,1
22 0,86 5 70 44 144 753,3 45 199 6079 1,50 7,4
22 0,86 6 85 47 154 818,3 49 216 6936 1,71 7,1
24 0,94 4 44 43 141 730 43,74 193 5806 1,43 7,5
24 0,94 5 56 49 161 815 48,90 215 7539 1,86 6,5
24 0,94 6 70 52 171 893 53,58 236 8491 2,10 6,3
26 1,02 4 56 49 161 856 51,36 226 7539 1,86 6,8
26 1,02 5 70 50 164 957 57,42 253 7850 1,94 7,3
26 1,02 6 85 54 177 1048 62,88 277 9156 2,26 6,9
28 1,1 4 56 51 167 992 59,52 262 8167 2,02 7,3
28 1,1 5 70 55 180 1109 66,54 293 9499 2,35 7,0
28 1,1 6 85 58 190 1215 72,9 321 10563 2,61 6,9
30 1,18 5 70 56 184 1222 73,32 323 9847 2,43 7,4
30 1,18 6 85 62 203 1393 83,58 368 12070 2,98 6,9
30 1,18 7 100 64 210 1505 90,3 398 12861 3,18 7,0
32 1,25 5 85 62 203 1449 86,94 383 12070 2,98 7,2
32 1,25 6 100 64 210 1587 95,22 419 12861 3,18 7,4
32 1,25 7 100 66 216 1814 108,84 479 13678 3,38 8,0
