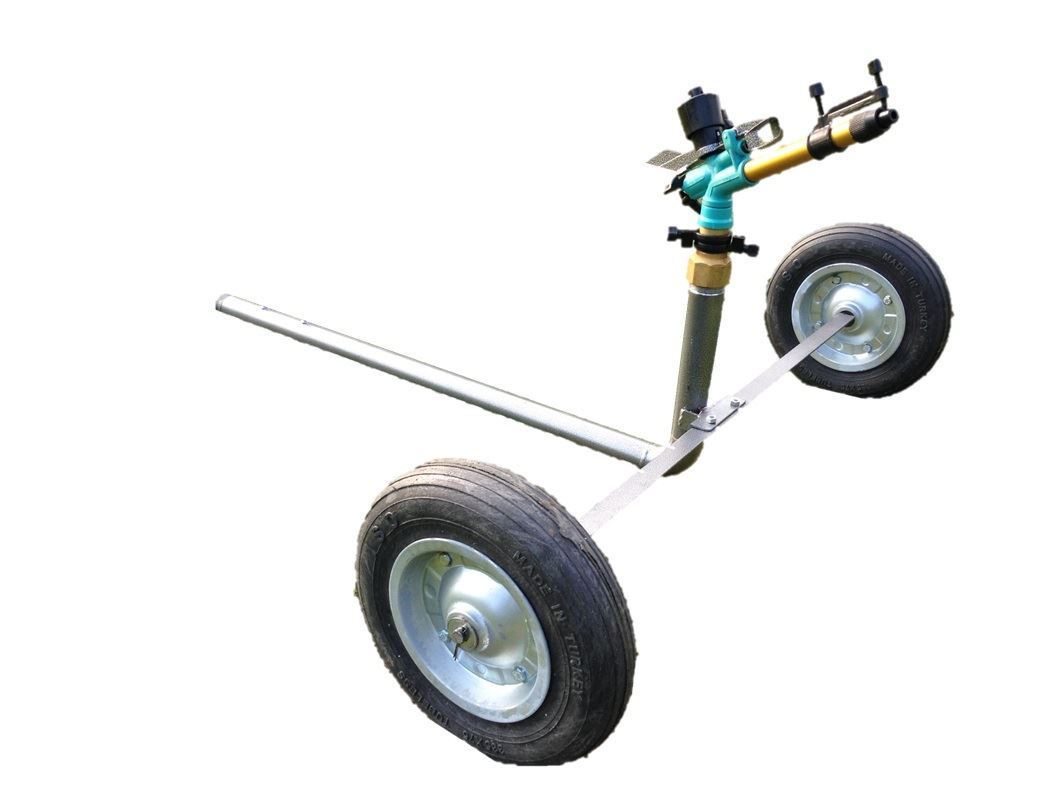

DuCaR B 25 with 1.5 inch wheeled cart

Portable, double-nozzle, brass housing, long throw, clean water irrigation sprinkler with 1.5 inch inlet/outlet wheeled cart.


Water Input
:
1.5" Female BSP

Working Pressure
:
29 - 56 psi

Water Flow
:
100 - 242 l/min

Shooting Radius
:
17 - 25 m

Free Nozzles
:
8, 10, 12 mm

Body Angle
:
27°

Operation
:
Full & Part Circle

Body Material
:
Plastic & Aluminium

Housing
:
Brass

Made in
:
Turkey
£211.00
£236.00
Manufacturer: DuCaR Sprinklers
SKU: B 25 PC w/wheeled
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox proudly presents DuCar Sprinklers to Australia and Asia Pacific! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar B25 PC brass sprinkler with 1.5 inch Wheeled Cart is a great set for mid water pressure and volume irrigation systems. Heavy duty 1.5 inch inlet/outlet wheeled cart provides great mobility for perfect and easy irrigation.


Some unique benefits of DuCaR B25 PC sprinkler:

  • BRASS Lower Body Rotation Mechanism
  • Full and part (angle-adjusted) circle irrigation
  • Comes with 3 different nozzles
  • 2 water sprays: secondary spray rotates the sprinkler, hence why it is recommended to use with CLEAN water
  • Operates on pressure range between 29 to 56 psi
  • Irrigates up to 48m diameter
  • Made of composite bearing, stainless spindle and teflon speed washer
  • Lays down 6 to 14 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.

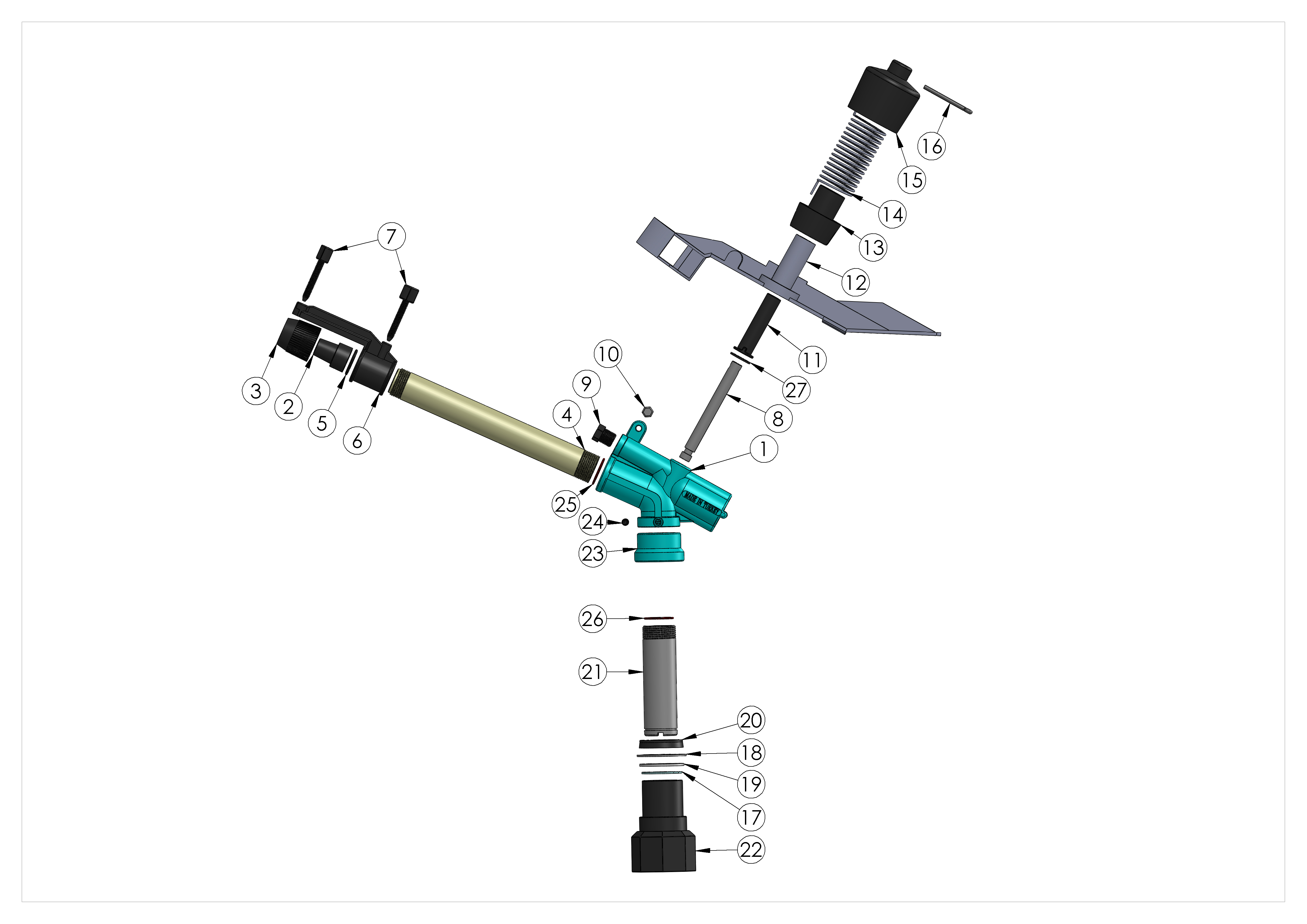

DuCaR B25 ECON Technical

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
8 .31 2 29 17,0 56 100 6,0 26 907 0,22 6,6
8 .31 3 44 19 62 121 7,25 32 1134 0,28 6,4
8 .31 4 56 21 69 142 8,5 37 1385 0,34 6,1
10 .39 2 29 18 59 130 7,8 34 1017 0,25 7,7
10 .39 3 44 21 69 160 9,6 42 1385 0,34 6,9
10 .39 4 56 23 74 185 11,1 49 1590 0,39 7,0
12 .47 2 29 19 62 168 10,10 44 1134 0,28 8,9
12 .47 3 44 22 72 207 12,40 55 1520 0,38 8,2
12 .47 4 56 25 82 242 14,50 64 1963 0,48 7,4

IrrigationBox proudly presents DuCar Sprinklers to Australia and Asia Pacific! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar B25 PC brass sprinkler with 1.5 inch Wheeled Cart is a great set for mid water pressure and volume irrigation systems. Heavy duty 1.5 inch inlet/outlet wheeled cart provides great mobility for perfect and easy irrigation.


Some unique benefits of DuCaR B25 PC sprinkler:

  • BRASS Lower Body Rotation Mechanism
  • Full and part (angle-adjusted) circle irrigation
  • Comes with 3 different nozzles
  • 2 water sprays: secondary spray rotates the sprinkler, hence why it is recommended to use with CLEAN water
  • Operates on pressure range between 29 to 56 psi
  • Irrigates up to 48m diameter
  • Made of composite bearing, stainless spindle and teflon speed washer
  • Lays down 6 to 14 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
DuCaR B25 ECON Technical

Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
8 .31 2 29 17,0 56 100 6,0 26 907 0,22 6,6
8 .31 3 44 19 62 121 7,25 32 1134 0,28 6,4
8 .31 4 56 21 69 142 8,5 37 1385 0,34 6,1
10 .39 2 29 18 59 130 7,8 34 1017 0,25 7,7
10 .39 3 44 21 69 160 9,6 42 1385 0,34 6,9
10 .39 4 56 23 74 185 11,1 49 1590 0,39 7,0
12 .47 2 29 19 62 168 10,10 44 1134 0,28 8,9
12 .47 3 44 22 72 207 12,40 55 1520 0,38 8,2
12 .47 4 56 25 82 242 14,50 64 1963 0,48 7,4
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1.5"
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 100 l/min
Maximum Water Flow 250 l/min
Minimum Shooting Range 16 - 20 m
Maximum Shooting Range 20 - 25 m
Box Dimension 25x40x6 cm
Nozzles 8, 10, 12 mm
Weight 1.3
