THE HIGHEST VOLUME PRO fire fighter sprinkler in the market!


Water Input
:
3" Flanged

Working Pressure
:
56 - 114 psi

Water Flow
:
1220 - 2435 l/min

Shooting Radius
:
49 - 70 m

Free Nozzles
:
30, 32, 34, 36 mm

Body Angle
:
23°

Box Dimensions
:
20x33x130 cm

Weight
:
15 kg

Connection
:
Flange

Made in
:
Turkey
818,00 €
1.091,00 €
Manufacturer: DuCaR Sprinklers
SKU: FIRE-JET-PRO
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

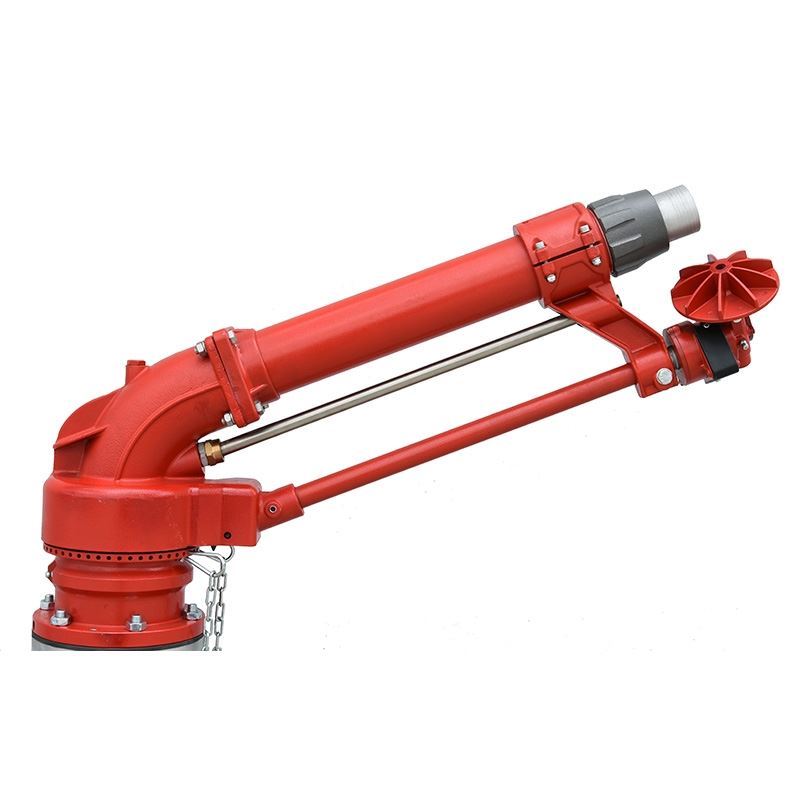

Ducar FIRE JET PRO is the biggest gear driven, part and full circle fire fighter sprinkler in the market. It features medium to high pressure operations (4 to 8 Bars), and provides perfectly even distribution at a great price!

Some unique benefits of DuCaR FIRE JET PRO:

  • Features smooth part or full circle operation at the same speed
  • Very reliable with low maintenance requirements
  • Highest quality among 3" input big gun sprinklers
  • Comes with 4 different nozzles.
  • Runs on from 56 to 114 psi
  • Throws up to a 140m diameter circle!!!
  • Great for fire fighting, large turf areas, Crops (including delicate ones), Dust control, Mining, and so much more.
  • Suitable for portable and fixed pipe systems
  • Very easy to set up and run
  • Perfect replacement for Sime, Nodolini, Nelson, Rainbird, Komet sprinklers
  • Provides perfect irrigation with the performance, technology, reliability and the feature of uniform coverage.

Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high-speed rotation at low pressure, slow rotation at high pressure. This important function makes it suitable for firefighting and all kinds of irrigation applications.

Extra Properties: It ensures even water distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism.





Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
30 1.18 4 56 49 161 1220 73,2 322 7539 1.86 9.7
30 1.18 5 70 52 184 1383 83 365 8491 2.1 9.8
30 1.18 6 85 57 187 1488 89,3 393 10202 2.52 8.8
32 1.25 4 56 51 167 1383 83 365 8167 2.02 10.2
32 1.25 5 70 55 180 1550 93 409 9499 2.35 9.8
32 1.25 6 85 60 197 1733 104 458 11304 2.79 9.2
32 1.25 7 100 63 207 1850 111 489 12463 3.08 8.9
34 1.33 5 70 57 187 1750 105 462 10202 2.52 10.3
34 1.33 6 85 60 197 1950 117 515 12861 3.18 9.5
34 1,33 7 100 64 210 2033 122 537 12861 3.18 9.5
36 1.42 6 85 62 213 2117 127 559 12070 2.98 10.5
36 1.42 7 100 66 216 2253 135 595 13678 3.38 9.9
36 1.41 8 114 70 230 2435 146 643 15386 3.80 9.5

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar FIRE JET PRO is the biggest gear driven, part and full circle fire fighter sprinkler in the market. It features medium to high pressure operations (4 to 8 Bars), and provides perfectly even distribution at a great price!

Some unique benefits of DuCaR FIRE JET PRO:

  • Features smooth part or full circle operation at the same speed
  • Very reliable with low maintenance requirements
  • Highest quality among 3" input big gun sprinklers
  • Comes with 4 different nozzles.
  • Runs on from 56 to 114 psi
  • Throws up to a 140m diameter circle!!!
  • Great for fire fighting, large turf areas, Crops (including delicate ones), Dust control, Mining, and so much more.
  • Suitable for portable and fixed pipe systems
  • Very easy to set up and run
  • Perfect replacement for Sime, Nodolini, Nelson, Rainbird, Komet sprinklers
  • Provides perfect irrigation with the performance, technology, reliability and the feature of uniform coverage.

Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high-speed rotation at low pressure, slow rotation at high pressure. This important function makes it suitable for firefighting and all kinds of irrigation applications.

Extra Properties: It ensures even water distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism.





Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm inch atm psi m feet l/min m3/h G.P.M m2 acre mm/h
30 1.18 4 56 49 161 1220 73,2 322 7539 1.86 9.7
30 1.18 5 70 52 184 1383 83 365 8491 2.1 9.8
30 1.18 6 85 57 187 1488 89,3 393 10202 2.52 8.8
32 1.25 4 56 51 167 1383 83 365 8167 2.02 10.2
32 1.25 5 70 55 180 1550 93 409 9499 2.35 9.8
32 1.25 6 85 60 197 1733 104 458 11304 2.79 9.2
32 1.25 7 100 63 207 1850 111 489 12463 3.08 8.9
34 1.33 5 70 57 187 1750 105 462 10202 2.52 10.3
34 1.33 6 85 60 197 1950 117 515 12861 3.18 9.5
34 1,33 7 100 64 210 2033 122 537 12861 3.18 9.5
36 1.42 6 85 62 213 2117 127 559 12070 2.98 10.5
36 1.42 7 100 66 216 2253 135 595 13678 3.38 9.9
36 1.41 8 114 70 230 2435 146 643 15386 3.80 9.5
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 3"
Circle Full & Part
Minimum Required Pressure 44 psi (3 bar)
Maximum Working Pressure 115 psi (8 bar)
Minimum Required Water Flow 720 l/min
Maximum Water Flow 3350 l/min
Minimum Shooting Range 36 - 40 m
Maximum Shooting Range 61 - 85 m
Box Dimension 25x33x130 cm
Nozzles 25, 28, 30, 32, 34, 36, 38, 40, 42 mm
Weight 16 kg
Flanged Connected Yes
