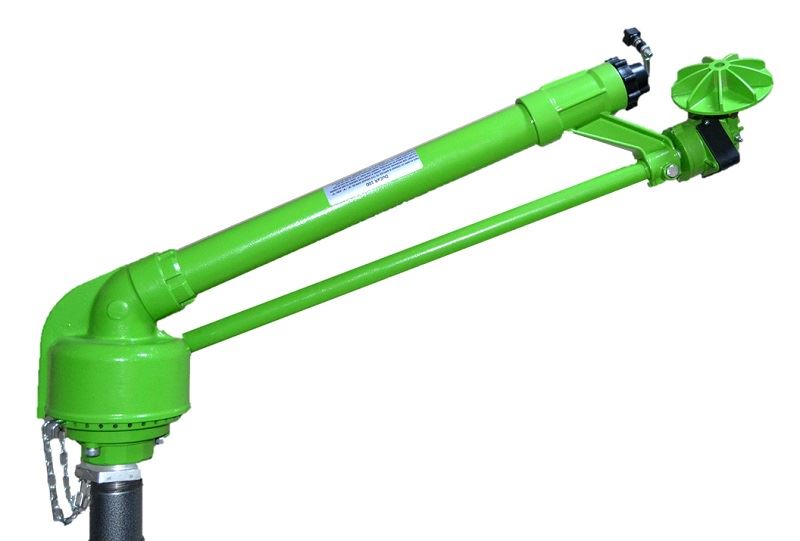

DuCaR Green 100

Low cost - high flow - effluent & clean water sprinkler


Water Input
:
2" Female BSP

Working Pressure
:
44 - 100 psi

Water Flow
:
246 - 1266 l/min

Shooting Radius
:
34 - 53 m

Free Nozzles
:
14, 16, 18, 20, 22, 24, 26, 28 mm

Body Angle
:
27°

Box Dimensions
:
22x22x86 cm

Weight
:
8 kg

Made in
:
Turkey
473,00 €
Manufacturer: DuCaR Sprinklers
SKU: GRN100
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Some unique benefits of DuCaR Green 100:

  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.





Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity
mm inch atm psi m feet l/min m3/h G.P.M
14 0.55 3 44 29 95 246.67 14.8 65
14 0.55 4 56 32 105 286.67 17.2 76
14 0.55 5 70 34 112 315 18.9 83
16 0.62 3 44 30 98 308.33 18.5 81
16 0.62 4 56 34 112 358.33 21.5 95
16 0.62 5 70 35 115 391.67 23.5 103
18 0.7 3 44 32 105 390 23.4 103
18 0.7 4 56 35 115 445 26.7 118
18 0.7 5 70 37 121 498.33 29.9 132
20
(2 Hole)
0.78 3 45 34 112 450 27 119
20
(2 Hole)
0.78 4 56 37 121 525 31.5 139
20
(2 Hole)
0.78 5 70 40 131 600 36 159
22
(2 Hole)
0.86 4 56 37 121 633 38 167
22
(2 Hole)
0.86 5 70 40 131 700 42 185
22
(2 Hole)
0.86 6 85 43 141 733 44 194
24
(2 Hole)
0.94 4 56 38 125 666 40 176
24
(2 Hole)
0.94 5 70 41 134 750 45 198
24
(2 Hole)
0.94 6 85 43 141 800 48 211
26 1 4 56 43 141 833.3 50 220
26 1 5 70 45 148 950 57 251
26 1 6 85 48 157 1050 63 277
28 1.1 5 70 47 154 1100 66 291
28 1.1 6 85 50 164 1200 72 317
28 1.1 7 100 53 174 1266.7 76 335

IrrigationBox proudly presents DuCar Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Some unique benefits of DuCaR Green 100:

  • High capacity, Medium and  high pressure (3 - 7 atm) and gear drive sprinkler head rotating
  • Replaceable nozzle ends and movable water jet breaker system allow you to water your land excellently with a unique water distribution.
  • It rotates full and part circle in the same speed.
  • The smallest nozzle is 20mm. It requires minimum 27 tons of water per hour thanks to this nozzle. The biggest nozzle, 28mm, consumes 76 tons of water per hour. It is the multifaceted model in the range of our products. It is widely used for field crops such as corn, sugar beet, potato, alfalfa, wheat, etc.
  • Appropriate for all Agricultural and Industrial applications.
  • Quick-adjustable nozzle that comes as standard with the product allows quick adjustment for high rotation at low pressure, slow rotation at high pressure, thus appropriate for all kinds of irrigation applications.

Extra Properties: It ensures event distribution of water excellently for short, medium and long distance thanks to two-hole nozzle mechanism; movable and adjustable water jet breaker and body angle of 27º  makes this multifaceted model easy to use for irrigation and cooling of the orchards, field crops and for industrial applications.





Technical Specifications



Nozzle Diameter Pressure Jet Length Capacity
mm inch atm psi m feet l/min m3/h G.P.M
14 0.55 3 44 29 95 246.67 14.8 65
14 0.55 4 56 32 105 286.67 17.2 76
14 0.55 5 70 34 112 315 18.9 83
16 0.62 3 44 30 98 308.33 18.5 81
16 0.62 4 56 34 112 358.33 21.5 95
16 0.62 5 70 35 115 391.67 23.5 103
18 0.7 3 44 32 105 390 23.4 103
18 0.7 4 56 35 115 445 26.7 118
18 0.7 5 70 37 121 498.33 29.9 132
20
(2 Hole)
0.78 3 45 34 112 450 27 119
20
(2 Hole)
0.78 4 56 37 121 525 31.5 139
20
(2 Hole)
0.78 5 70 40 131 600 36 159
22
(2 Hole)
0.86 4 56 37 121 633 38 167
22
(2 Hole)
0.86 5 70 40 131 700 42 185
22
(2 Hole)
0.86 6 85 43 141 733 44 194
24
(2 Hole)
0.94 4 56 38 125 666 40 176
24
(2 Hole)
0.94 5 70 41 134 750 45 198
24
(2 Hole)
0.94 6 85 43 141 800 48 211
26 1 4 56 43 141 833.3 50 220
26 1 5 70 45 148 950 57 251
26 1 6 85 48 157 1050 63 277
28 1.1 5 70 47 154 1100 66 291
28 1.1 6 85 50 164 1200 72 317
28 1.1 7 100 53 174 1266.7 76 335
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 2"
Circle Full & Part
Minimum Required Pressure 44 psi (3 bar)
Maximum Working Pressure 100 psi (7bar)
Minimum Required Water Flow 250 l/min
Maximum Water Flow 1000 l/min
Minimum Shooting Range 31 - 35 m
Maximum Shooting Range 51 - 60 m
Box Dimension 22x22x86 cm
Nozzles 14, 16, 18, 20, 22, 24, 26, 28 mm
Weight 8 kg
