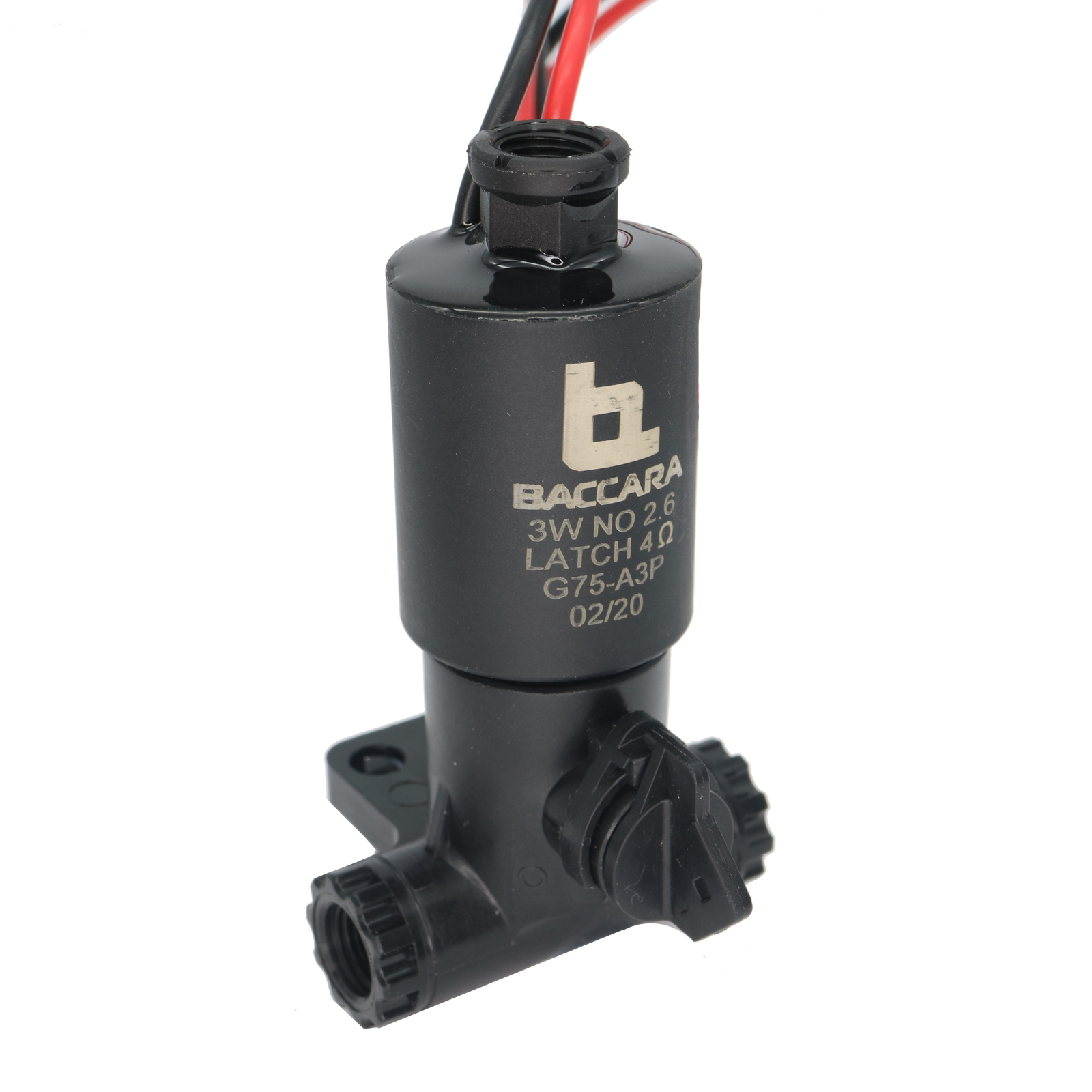

Technical Data
| Function |
2 Way NC, 3 Way NC, NO |
| Ports size |
1/8” BSP & NPT |
| Orifice size |
2.6 mm |
| Pressure range |
NC 2 Way : 10 bar
NC 3 Way : 8 bar
NO 3 Way : 10 bar |
| Temperature range |
Fluid : 5ºC to 50ºC (no freezing)
Ambient : 10ºC to 50ºC |
Materials in contact
with media |
Manual override:
Plastic
Main Valve:
UV Stabilized - Reinforced Nylon 6 30% GF
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
NBR |
| Mounting |

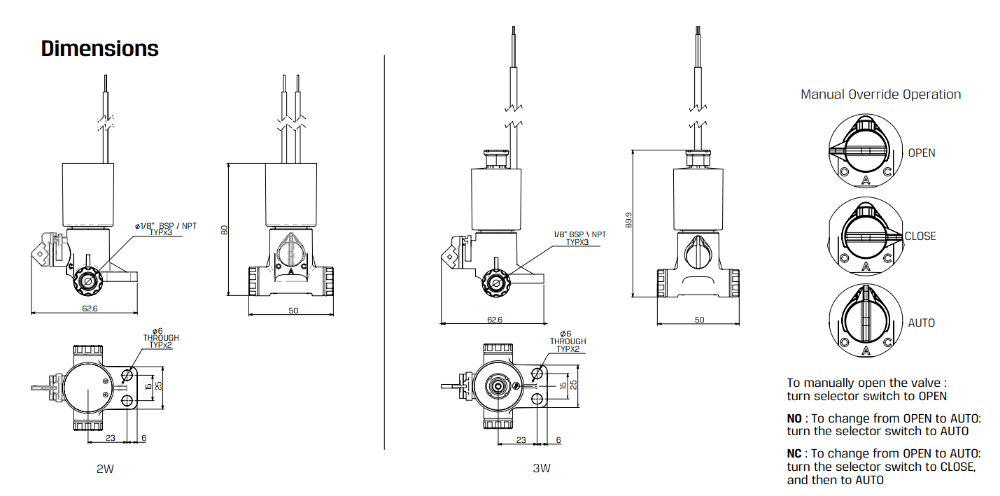

2 x Ø6 mm holes |
| Manual override |
3 positions (Open/Auto/Close) |
| Media |
Air, water |
| Coil voltage |
Latch |
| Switching time |
40-60 msec |
| Electric connection |
22AWG cable |
| Standard protection class |
IP66 |
* Can only be operated with supplied coil
Coil resistance vs input voltage range
| Resistance [Ω] |
Suitable input voltage range [V] |
| 1 |
8 - 12 |
| 4 |
12 - 18 |

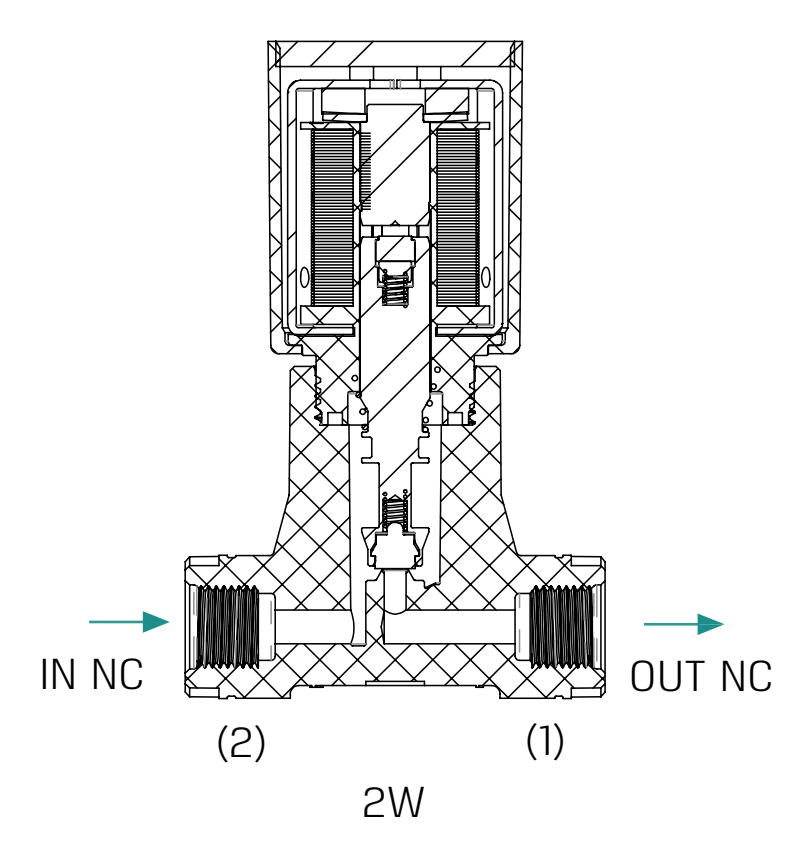

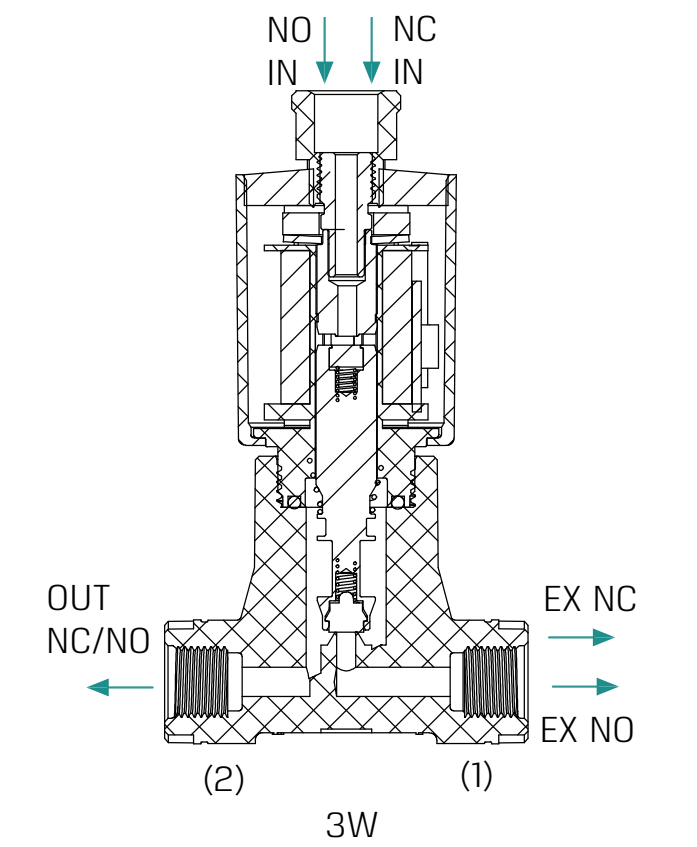

G75-A3P-2W-Plumbing-Diagram
