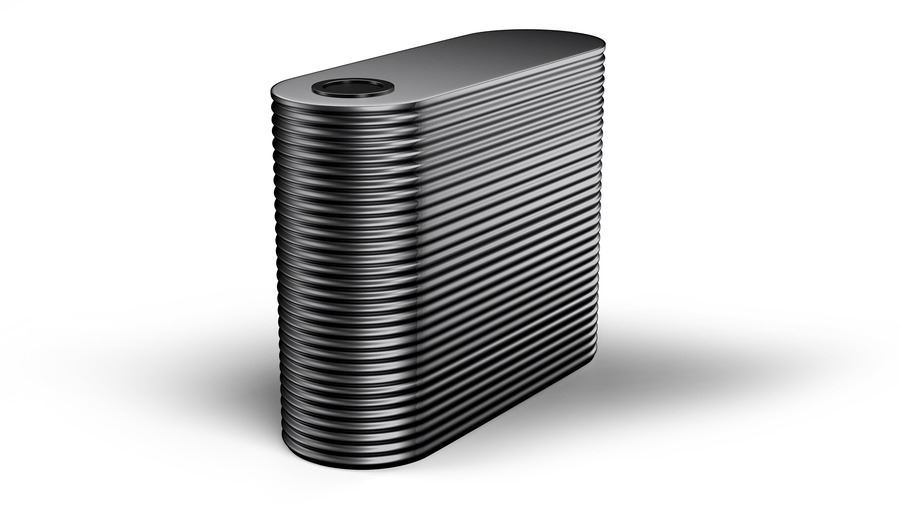

Kingspan Slimline Water Tanks

SKU: Kingspan-Slimline
Manufacturer: Kingspan

The rounded ends of a Slimline Tank create a sleek, modern look, elevating the aesthetics of water storage.

Height
:
580mm - 2470mm
Width
:
550mm - 1150mm
Length
:
1200mm - 4000mm
Size
:
600 - 10,000 litres
Verticall Wall
:
Precision roll formed 0.6mm AQUAPLATE® steel
Base
:
Double sided AQUAPLATE® steel (internal & external polymer lining)
Lid
:
Colorbond® or Z450 grade material
Rivets V Tek Screws
:
Henrob self piercing rivets. Reinforced 6mm, grade 304 stainless steel tension rods
Sealing
:
Neutral cure silicone sealant potable water approved
Corrugations
:
Corrugations for the tank walls comply with AS1445
Corrosion Protection
:
Z450 Galvanised, Z275 Colorbond®, Painted – Low VOC Acrylic type paint
Thermal Resistance
:
Do not store water at temperatures in excess of 65°C
Call for pricing
*
*

Kingspan Slimline - Space saving rainwater tank made to suit tight spaces.

The rounded ends of a Slimline Tank create a sleek, modern look, elevating the aesthetics of water storage. Choose from a range of popular sizes, or you can customize the length, width and height to perfectly fit the space available, and choose from a wide range of Colorbond® colours to suit. Manufactured using genuine Bluescope AQUAPLATE® Steel with a fully engineered internal stainless steel support frame. Available in capacities from 600 litres up to 8,700 litres.

FEATURES

  • Storage of drinking water AS4020
  • Aesthetical modern design to suit narrow space
  • Made to measure to suit your property
  • Built to withstand the Australian climate
  • Made with genuine Australian Bluescope AQUAPLATE® Steel, which is specifically designed for constructing water tanks.
  • Lined with a food grade polymenr lining so that water never comes in contact with the steel.
  • Fully engineered internal stainless steel support frame.
  • Tanks meet Australian Standard AS4020 for storage of drinking water and carries Watermark certification.
  • Wide range of colours to choose from
  • Industry leading warranty: 10 year construction warranty +20 year warranty against corrosion.



The rounded ends of our Slimline Water Tank create a sleek, modern look, elevating the aesthetics of water storage in a small footprint. A 2,000 Litre tank is great for a small household and perfect for the side of your house or the garden.

Trusted by thousands of Australian families to harvest rainwater for their home, our tanks are made to last using genuine Bluescope AQUAPLATE® Steel with a fully engineered internal stainless steel support frame.

The high quality Slimline water tanks are manufactured locally in company's Melbourne, Sydney, and Brisbane facilities for optimum precision and quality. NOW get a detailed quote including delivery to your property.

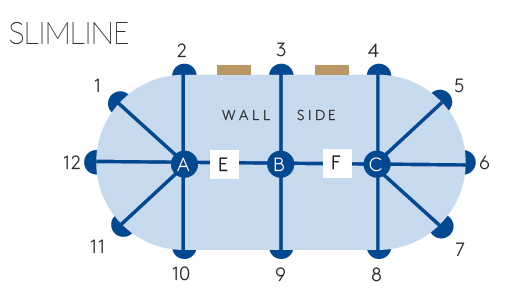

 InletsOutletOverflowValve

We include a generous number of quality inclusions to get you water tank going sooner. Below are some information on the default fitting positions which you can consider to suit your property.

Our friendly team will work with you to decide and confirm the best fitting positions before the production of your water tank begins.

water-tank-inlets water-tank-outlet water-tank-overflow water-tank-valve
water-tank-slimline-fittings-positions 2 x 400mm inlet strainers with light guards Positions A & C 1 x 25mm fitted outlet with watermarked ball valve Position 6 2 x 90mm (100mm NSW only) fitted overflows with mosquito screen Positions 6 & 12 1 x 25mm WaterMarked Brass Ball Valve fitted to the Outlet



Tank and Pump Packages

You can also opt for our tank and pump packages to take the guess work out of choosing the right pump or fitting that is right for you. With a range of internal and external use packages, you'll find one that is right for you.

Premium Performance Evolution Package

Includes our Evolution MkIII Pump, powered by a submersible Grundfos SB3-45A pump with PM Rain Controller. Suits large or 3 storey homes.

High Performance Submersible Pump Package

Includes a submersible Grundfos SBA3 pump with wall mounted Acquasaver Controller. Suitable for large or 2 storey homes.

slimline-premium-performance-evolution-package
slimline-high-performance-submersible-pump-package

High Performance External Pump Package For Indoor Water Use

Includes an external self-priming Grundfos JPC 3-PMR pump with Controller. Switches to mains when tank is empty. Suits most homes.

Submersible Garden Pump Package

Includes a submersible, automatic start / stop SBA3-35A pump with Controller for a quiet operation. Perfect for watering your garden and lawn.

slimline-performance-external-pump-package
slimline-submersible-pump-package

External Garden Pump With Cover

Includes a self priming Claytech C3 Pump with Controller for a seamless operation, great for watering your garden and lawn or topping up your pool.

Bucket High Garden Tap Package

This is a pump free, gravity fed system where a tap is installed high enough to fill a watering can.

slimline-external-pump-package
slimline-bucket-high-tap-package



Colour Range

Our comprehensive range of Colorbond colours come in both Standard and Painted options and they differ by state.

kingspan-water-colorbond-range-v3

Kingspan Slimline - Space saving rainwater tank made to suit tight spaces.

The rounded ends of a Slimline Tank create a sleek, modern look, elevating the aesthetics of water storage. Choose from a range of popular sizes, or you can customize the length, width and height to perfectly fit the space available, and choose from a wide range of Colorbond® colours to suit. Manufactured using genuine Bluescope AQUAPLATE® Steel with a fully engineered internal stainless steel support frame. Available in capacities from 600 litres up to 8,700 litres.

FEATURES

  • Storage of drinking water AS4020
  • Aesthetical modern design to suit narrow space
  • Made to measure to suit your property
  • Built to withstand the Australian climate
  • Made with genuine Australian Bluescope AQUAPLATE® Steel, which is specifically designed for constructing water tanks.
  • Lined with a food grade polymenr lining so that water never comes in contact with the steel.
  • Fully engineered internal stainless steel support frame.
  • Tanks meet Australian Standard AS4020 for storage of drinking water and carries Watermark certification.
  • Wide range of colours to choose from
  • Industry leading warranty: 10 year construction warranty +20 year warranty against corrosion.



The rounded ends of our Slimline Water Tank create a sleek, modern look, elevating the aesthetics of water storage in a small footprint. A 2,000 Litre tank is great for a small household and perfect for the side of your house or the garden.

Trusted by thousands of Australian families to harvest rainwater for their home, our tanks are made to last using genuine Bluescope AQUAPLATE® Steel with a fully engineered internal stainless steel support frame.

The high quality Slimline water tanks are manufactured locally in company's Melbourne, Sydney, and Brisbane facilities for optimum precision and quality. NOW get a detailed quote including delivery to your property.



 InletsOutletOverflowValve

We include a generous number of quality inclusions to get you water tank going sooner. Below are some information on the default fitting positions which you can consider to suit your property.

Our friendly team will work with you to decide and confirm the best fitting positions before the production of your water tank begins.

water-tank-inlets water-tank-outlet water-tank-overflow water-tank-valve
water-tank-slimline-fittings-positions 2 x 400mm inlet strainers with light guards Positions A & C 1 x 25mm fitted outlet with watermarked ball valve Position 6 2 x 90mm (100mm NSW only) fitted overflows with mosquito screen Positions 6 & 12 1 x 25mm WaterMarked Brass Ball Valve fitted to the Outlet



Tank and Pump Packages

You can also opt for our tank and pump packages to take the guess work out of choosing the right pump or fitting that is right for you. With a range of internal and external use packages, you'll find one that is right for you.

Premium Performance Evolution Package

Includes our Evolution MkIII Pump, powered by a submersible Grundfos SB3-45A pump with PM Rain Controller. Suits large or 3 storey homes.

High Performance Submersible Pump Package

Includes a submersible Grundfos SBA3 pump with wall mounted Acquasaver Controller. Suitable for large or 2 storey homes.

slimline-premium-performance-evolution-package
slimline-high-performance-submersible-pump-package

High Performance External Pump Package For Indoor Water Use

Includes an external self-priming Grundfos JPC 3-PMR pump with Controller. Switches to mains when tank is empty. Suits most homes.

Submersible Garden Pump Package

Includes a submersible, automatic start / stop SBA3-35A pump with Controller for a quiet operation. Perfect for watering your garden and lawn.

slimline-performance-external-pump-package
slimline-submersible-pump-package

External Garden Pump With Cover

Includes a self priming Claytech C3 Pump with Controller for a seamless operation, great for watering your garden and lawn or topping up your pool.

Bucket High Garden Tap Package

This is a pump free, gravity fed system where a tap is installed high enough to fill a watering can.

slimline-external-pump-package
slimline-bucket-high-tap-package



Colour Range

Our comprehensive range of Colorbond colours come in both Standard and Painted options and they differ by state.

kingspan-water-colorbond-range-v3
Write your own review
  • Only registered users can write reviews
*
*
  • Bad
  • Excellent
Slimline-inclusions
kingspan-residential-water-tanks-brochure

Kingspan Residential Water Tanks Brochure

kingspan-water-slimline-water-tank-brochure

Kingspan Slimline Water Tank Brochure 2019

kingspan-residential-tank-order-form

Kingspan Residential Tanks Order Form

*
*
*

Delivery

Ensuring new water tanks arrive in perfect condition is important to us. Our professionally trained delivery staff will operate from purpose fitted trucks to position the tank on the prepared tank base. Please download the delivery information brochure to find out the details.

Tank-delivery-information

Tank Base Preparation

This brief guide for base preparation should be followed to ensure a correct foundation is laid for your AQUAPLATE ® tank. Damage to your tank due to failure or movement of the tank base is not covered by the warranty. Please keep in mind that 1000L of water weighs 1000kg, and this is a significant force. Soft ground may subside under the weight of a full tank.

The base of your tank is made with double sided AQUAPLATE ® i.e. the inside and outside of the tank base is coated with a polymer film to prevent corrosion. The tank may be in direct contact with the tank base and the tank will not corrode. Hence there is no reason to elevate the tank above ground level.

This base preparation guide should be taken as a guide only. Specific details on the construction of a tank base should be referred to an engineer for formal advice. Kingspan Water accept no responsibility for the failure of a tank base.

Tank-base-preparation



StandConcrete Paver BaseConcrete BaseCrusher Dust Base
base-stand base-concrete-paver base-concrete base-crusher-dust
Stand construction must be certified as strong enough to support the tank’s weight. Consult a structural engineer to ensure the construction and footing is sufficient for the tank. The top of the stand must be flat, smooth and level. Tank stands may be made with varying leg lengths to accommodate a sloping site. Kingspan Water tank stands are available to suit a range of tanks. To use a concrete paver base, the area must be cleared down to firm earth. A paver base installed on soft ground (i.e. a garden bed) will subside over time, and is not advisable. Once dug down to a firm surface, spread sand and cement mix 75mm thick over the entire base, level out then proceed to place concretepavers flat on top. Once laid, shower the pavers with water to set the sand and cement off. Paver base is to be large enough to support all edges of the tank. Tank may be placed on to paver base straight away. Do not fill tank above 2 corrugations for at least 48 hours. A concrete slab base is the most suitable base for your AQUAPLATE® rainwater tank. Construction of a concrete base needs a minimum of 100mm thick concrete and F62 mesh, on a flat level area. If the tank is to be positioned in an area that is on a slope then the thickness of the slab is to be increased and the mesh to be a higher grade. The slab must be flat, smooth and level. Finish with a metal trowel is advisable. Slabs must be large enough to support all edges of the tank, and should be at least 100mm longer and wider than the tank. Slabs must be allowed to cure for at least five days prior to placing tank on slab. Crusher dust bases are only suitable for larger diameter round tanks. The crusher dust must have no particles larger than 5mm diameter. The crusher dust is to be 100mm thick. It must be compacted, level and flat. A border must be placed around the crusher dust to ensure it does not erode over time or is undermined by heavy rain or burrowing animals. The base should be large enough to support all edges of the tank. Tank may be filled straight away. Coarse aggregate should be spread over any exposed crusher dust, after the tank is positioned, to prevent erosion.

Note: Care must be taken when positioning the tank on a crusher dust base to ensure it does not dig in and create an uneven surface.

With a Kingspan tank, you can rest assured that you have support for the long term. Kingspan Environmental Pty Limited warrants the AQUAPLATE® range of steel water tanks as follows:

  • 20 year minimum life prior to perforation due to corrosion, as detailed in the AQUAPLATE® product warranty*.
  • 10 year construction warranty* covering the assembly and sealing of the tank.

*All our tanks come with a 10 year construction warranty and 20 year warranty against corrosion.

Refer to the Kingspan Environmental Terms & Conditions document and Warranty document for further information.

Warranty-certificate

Kingspan Residential Tank Warranty Form

Terms-and-conditions-of-sale

Kingspan Terms & Conditions of Sale
