Powaflex Vacman PVC Suction Hose

Be the first to review this product

An extra flexible, lightweight, high abrasive suction hose.

Inside Diameter Range

1 1/2" (38 mm) - 8" (203 mm)

Bending Radius (mm)

150 - 480mm

Working Pressure Range

45 psi

Price: 14,00 €

Old price: 9,00 €

Manufacturer: Advanced Industrial Products

SKU: Powaflex Vacman PVC Suction Hose

Shipping

Delivery date 3-5 business days (PLEASE CONTACT US FOR THE SHIPPING COST)

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Hose Inside Diameter: *

*Indicated prices are per metre. Please select a hose size to update the price above.

1 1/2" (38 mm)
2" (51 mm) [+4,00 €]
2 1/2" (63 mm) [+8,00 €]
3" (76 mm) [+16,00 €]
4" (102 mm) [+26,00 €]
5" (127 mm) [+43,00 €]
6" (152 mm) [+59,00 €]
8" (203 mm) [+99,00 €]

This product has a minimum quantity of 3

Qty:

POWAFLEX VACMAN PVC SUCTION HOSE

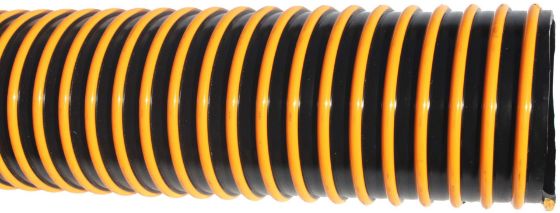

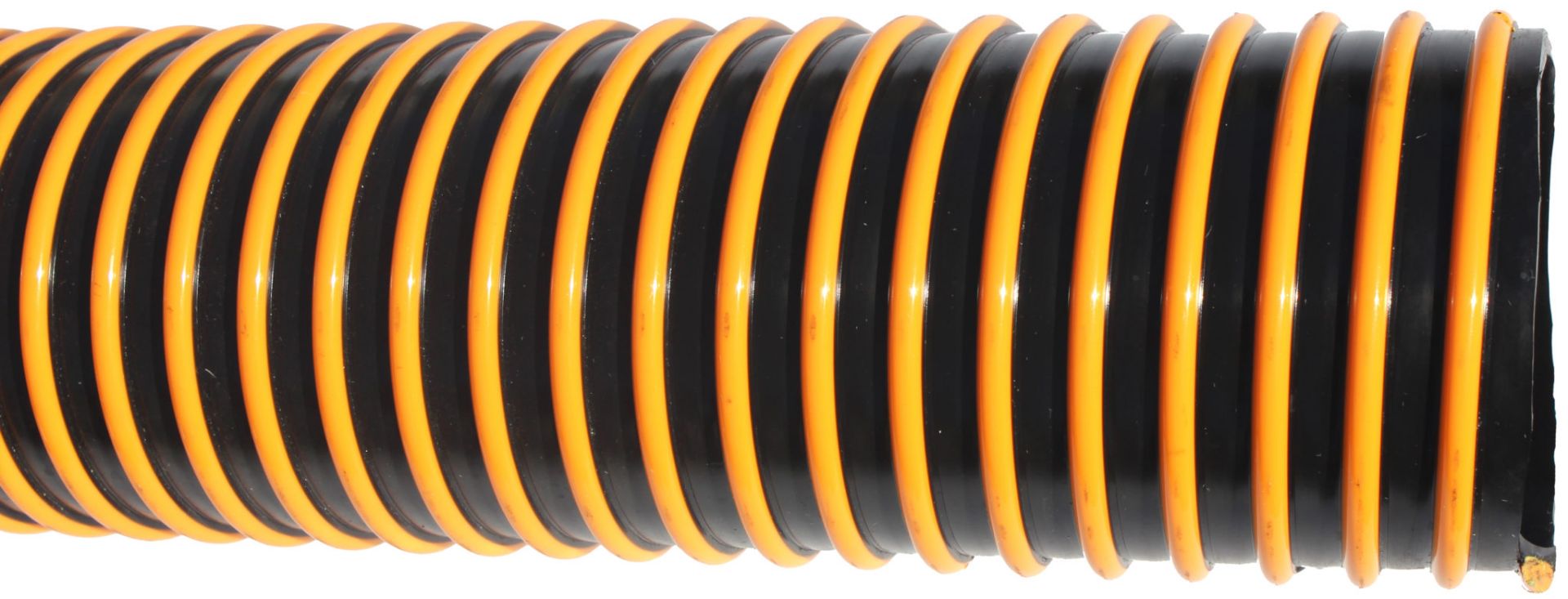

Powaflex Vacman Suction hose is an extra flexible, lightweight, high abrasive suction hose. Smooth bore, PVC/Nitrile blend, black wall and orange spiral. It is suitable for water slurries and abrasive materials applications.

Working Temperature: -10ºC to 60 ºC

Technical Specifications

Inside diameter mm	Inside diameter inches	Working Pressure PSI (20ºC)	VAC rating mm/hg 20ºC	Bending radius mm	Weight gm/mtr	Standard Coil
38	1½”	45	700	150	0.70	30 m
51	2”	45	700	160	0.83	30 m
63	2 1/2″	45	700	180	1.35	30 m
76	3”	45	650	210	1.60	30 m
102	4″	45	600	270	2.80	30 m
127	5”	45	600	350	4.40	30 m
152	6″	45	500	420	5.30	30 m
203	8”	45	350	480	7.50	30 m
