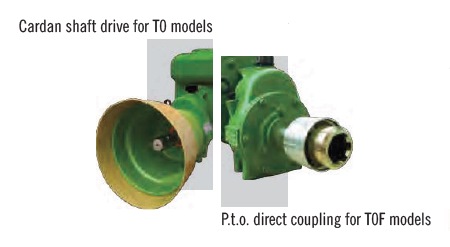

Overgear driven by cardan shaft of PTO (TOF-50A) or direct connection (TOF-50). Axial inlet and scroll outlet.

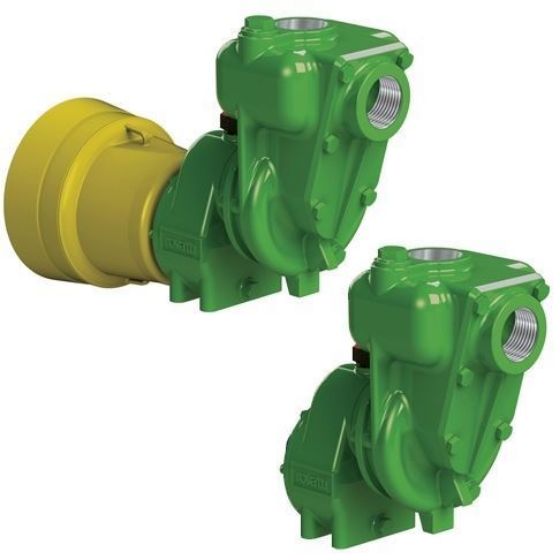

Rovatti T0F-50 series compact and portable user friendly tractor driven centrifugal pumps have been designed by ROVATTI to satisfy a wide range of applications, including water transfer, irrigation, wash-down and bowser/tank filling, etc....The selection of plastic suction and delivery fittings reduces the overall weight to allow for a rapid transfer between tractors for emergency pumping duties. Constructed from high specification cast-iron, each pump incorporates robustly engineered helical gears, oil bath lubrication of bearings and a quality mechanical seal to guarantee high efficiencies and a reliable and long maintenance free operational life. These pumps are fitted with the most modern devices and ensure an easy and reliable coupling to any type of tractor. Available both in centrifugal and self-priming centrifugal version. Each model is available both in cardan shaft driven version and with direct coupling to tractor p.t.o.

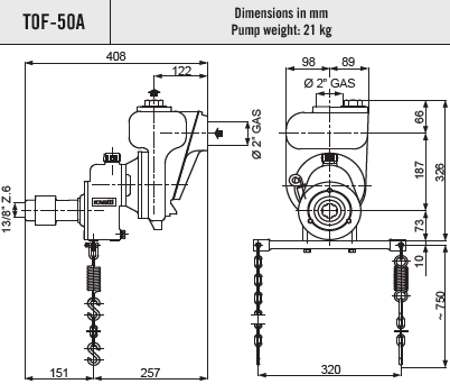

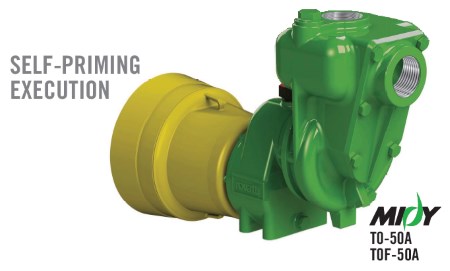

Rovatti T0F-50A mini compact and portable user friendly tractor driven pump with cardan shaft driven.

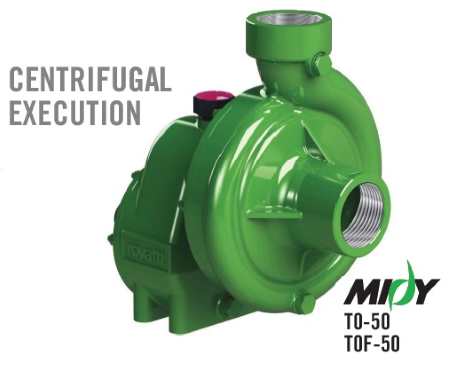

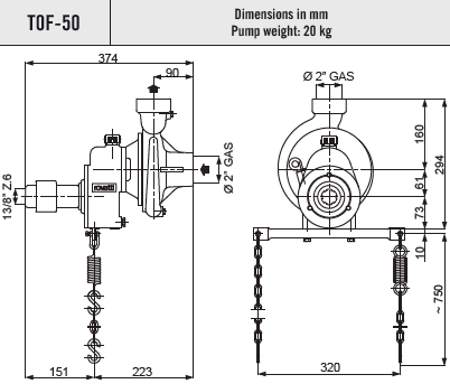

Rovatti T0F-50 mini compact and portable user friendly tractor driven pump with direct coupling to tractor p.t.o.
Features■ Light and compact pump■ Easy installation■ Application flexibility■ Available in self-priming execution■ Available with trolleys and threepoint linkage
Inlet X Outlet
(mm)
T0-50
T0F-50
Centrifugal
50 X 50
(2" x 2")
T0-50A
T0F-50A
Self-Priming
