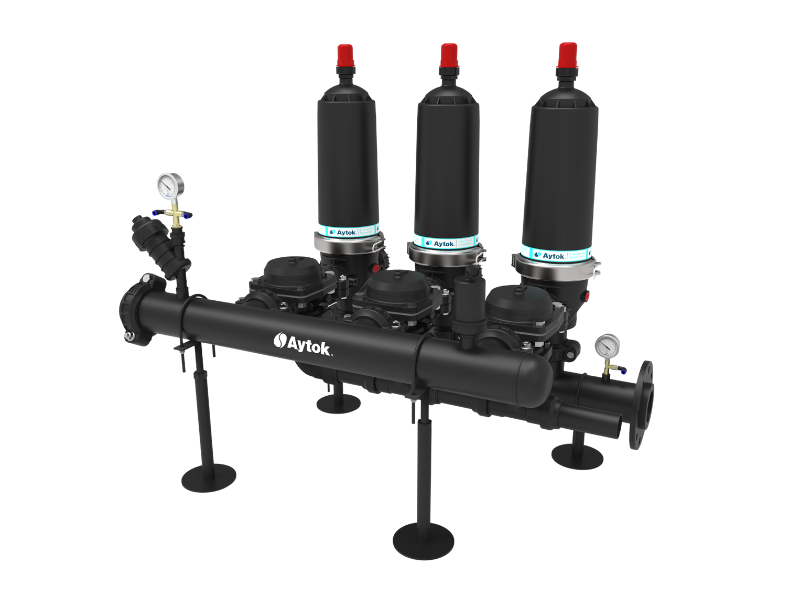

Aytok Plastic Automatic Disc Filter System

Plastic automatic filter system with steel manifold.


Body Material
:
PA6GFR30

Disc Material
:
PP

Maximum Working Pressure
:
8 Bar (116 PSI)

Minimum Working Pressure
:
2 Bar (29 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Time interval or Pressure Differential

Backwash Controlling Unit
:
Electronic (AC/DC) Control

Filtration Degree
:
20-50-100-130 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
Call for pricing
Manufacturer: Aytok Filters
SKU: A222-323-433-443
Delivery date 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Automatic Plastic Disc Filter System

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*



Availability: 8-10 weeks



Code SYSTEM CAPACITY (m³/h)
A222 2"2X2"PLASTIC DISC FILTER SYSTEM 10 - 30
A323 3"2X3"PLASTIC DISC FILTER SYSTEM 30 - 50
A433 4"3X3"PLASTIC DISC FILTER SYSTEM 50 - 70
A443 4"4X3"PLASTIC DISC FILTER SYSTEM 70 - 100



Aytok filtration system

Aytok Automatic Plastic Disc Filter System

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*



Availability: 8-10 weeks



Code SYSTEM CAPACITY (m³/h)
A222 2"2X2"PLASTIC DISC FILTER SYSTEM 10 - 30
A323 3"2X3"PLASTIC DISC FILTER SYSTEM 30 - 50
A433 4"3X3"PLASTIC DISC FILTER SYSTEM 50 - 70
A443 4"4X3"PLASTIC DISC FILTER SYSTEM 70 - 100



Aytok filtration system
