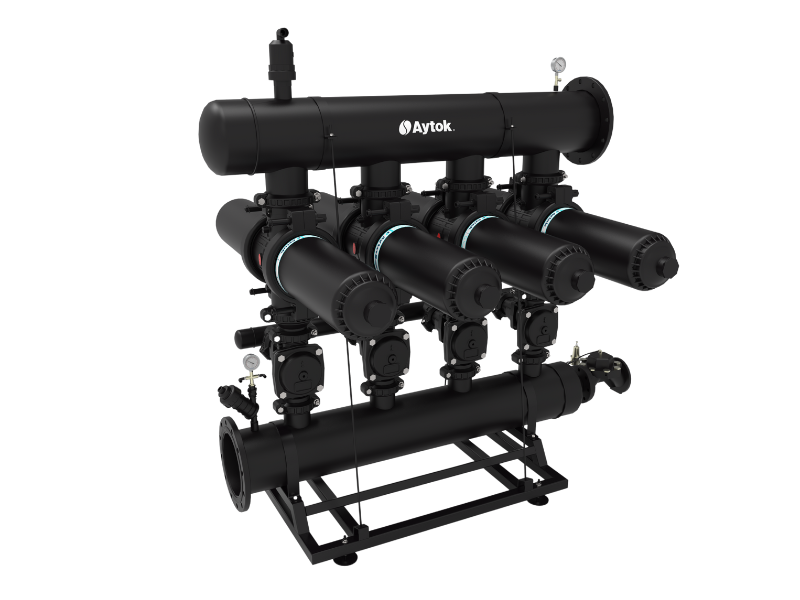

Aytok Plastic Automatic Double Disc Filter System

Plastic automatic double disc filter system with steel manifold.


Body Material
:
PA6GFR30

Disc Material
:
PP

Maximum Working Pressure
:
8 Bar (116 PSI)

Minimum Working Pressure
:
2 Bar (29 PSI)

Maximum Working Temperature
:
60 °C (140 °F)

Backwash Operation Criteria
:
Time interval or Pressure Differential

Backwash Controlling Unit
:
Electronic (AC/DC) Control

Filtration Degree
:
20-50-100-130 micron (µ)

Painting
:
Epoxy Polyester, Electrostatic Powder Coating

Made in
:
Turkey
Call for pricing
Manufacturer: Aytok Filters
SKU: A534-644-836-846-1046-1056-1066-1276
Delivery date 2 to 3 weeks
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Aytok Automatic Plastic Double Disc Filter System

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code SYSTEM CAPACITY (m³/h)
A534 5"3x4"DOUBLE PLASTIC DISC FILTER SYSTEM 100 - 130
A644 6"4x4"DOUBLE PLASTIC DISC FILTER SYSTEM 130 - 200
A836 8"3x6"DOUBLE PLASTIC DISC FILTER SYSTEM 200 - 280
A846 8”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM 280 - 330
A1046 10”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM 330 - 380
A1056 10"5x6"DOUBLE PLASTIC DISC FILTER SYSTEM 380 - 480
A1066 10"6x6"DOUBLE PLASTIC DISC FILTER SYSTEM 480 - 570
A1276 12"7x6"DOUBLE PLASTIC DISC FILTER SYSTEM 570 -670



Aytok filtration system

Aytok Automatic Plastic Double Disc Filter System

  • Filter Body Material: PA6GFR30
  • Disc Material: PP
  • Maximum Working Pressure: 8 Bar (116 PSI)
  • Minimum Working Pressure: 2 Bar (29 PSI)
  • Maximum Working Temperature : 60 °C (140 °F)
  • Back Flush Operation Criteria: Time and/or Pressure Differential
  • Back Flush Controlling Unit : Electronic (AC/DC) Control
  • Filtration Degree: 20-50-100-130 micron (µ)
  • Manifold Material: Steel painted in red powder coated, steel grade S195T
  • Manifold Painting Method: Red powder coated
  • Painting Material: Epoxy Polyester*

Availability: 8-10 weeks

Code SYSTEM CAPACITY (m³/h)
A534 5"3x4"DOUBLE PLASTIC DISC FILTER SYSTEM 100 - 130
A644 6"4x4"DOUBLE PLASTIC DISC FILTER SYSTEM 130 - 200
A836 8"3x6"DOUBLE PLASTIC DISC FILTER SYSTEM 200 - 280
A846 8”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM 280 - 330
A1046 10”4x6”DOUBLE PLASTIC DISC FILTER SYSTEM 330 - 380
A1056 10"5x6"DOUBLE PLASTIC DISC FILTER SYSTEM 380 - 480
A1066 10"6x6"DOUBLE PLASTIC DISC FILTER SYSTEM 480 - 570
A1276 12"7x6"DOUBLE PLASTIC DISC FILTER SYSTEM 570 -670



Aytok filtration system
