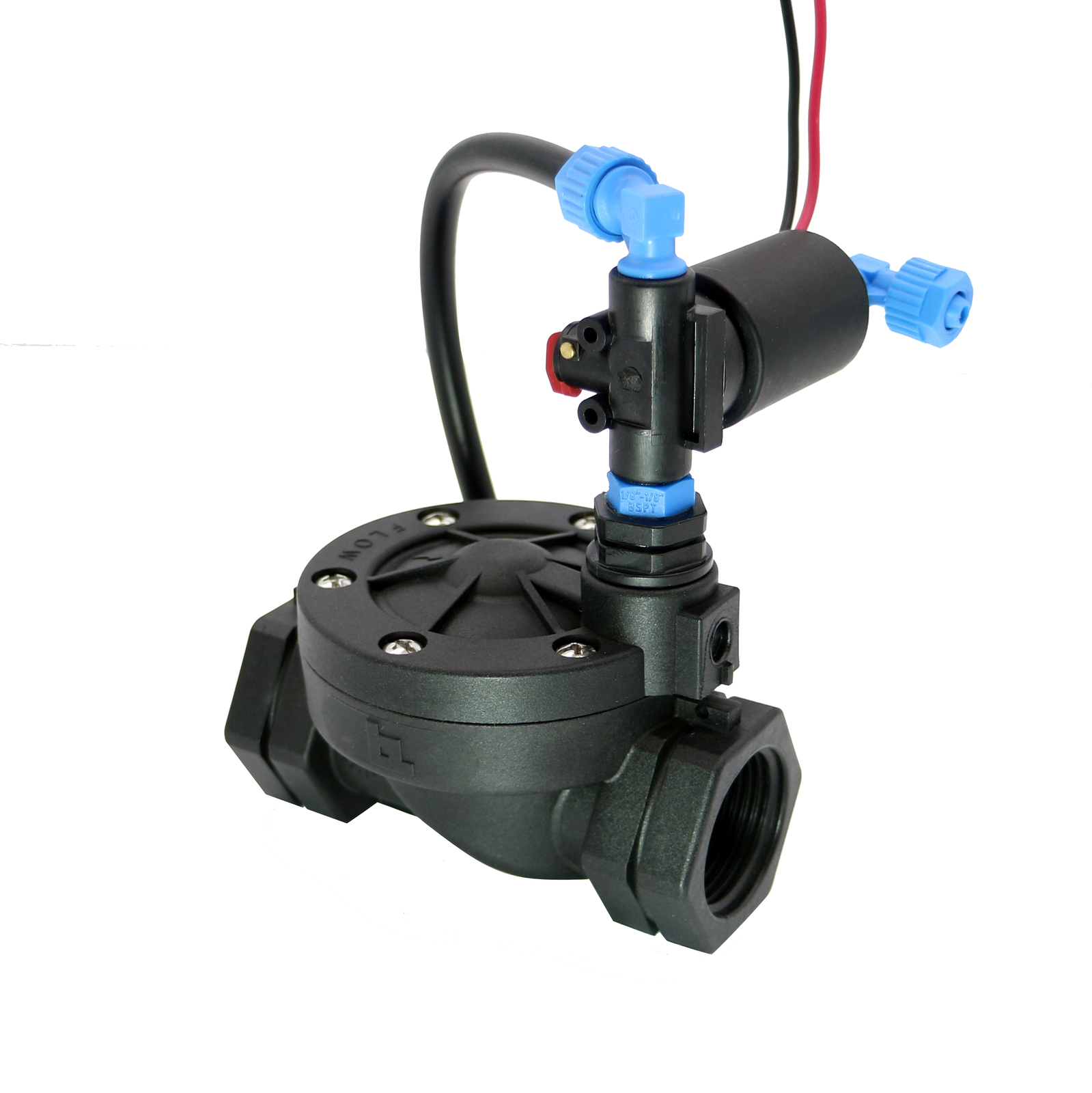

Solenoid |
Supplied with 3W 1.2mm G75 solenoid |
Assembly |
Supplied with finger filter and accessories |
Technical Data
Function |
2 Way NC |
Ports size |
3/4", 1", 1-1/2", 2" BSPT |
Pressure range |
0.3 to 10 bar |
Temperature range |
Fluid : 5ºC to 50ºC (no freezing) Ambient : -10ºC to 50ºC |
Materials in contact with media |
Manual override: Reinforced Nylon Main Valve: Reinforced Nylon Solenoid Operator: Stainless Steel AISI 300 & 400 series Diaphragm: NR Seals: NBR Spring: Stainless Steel AISI 300 series |
Solenoid |
• G75, 2W NC solenoids, all voltages. • AC, DC and Latch |
Coil voltage |
• Voltage and power consumption - see table • All Baccara coil voltages are ± 10% of nominal |
Voltage & Power Consumption
|
AC (W) 50 Hz |
DC (W) |
V |
2 |
4.5 |
12 |
• |
• |
24 |
• |
• |
110 |
• |
• |
* Available Options
Voltage & Current Table
Solenoid |
Voltage |
Inrush [A] |
Holding [A] |
2W 50 Hz |
+10% n-20% V |
0.3 |
0.19 |
2W 60 Hz |
0.2 |
0.14 |
3W 50/60 Hz |
0.125 |
0.125 |
DC |
4.5W |
Coil Resistance vs Input Voltage Range
Resistance [Ω] |
Suitable input voltage range [V] |
4 |
6 - 9 |
9 |
12 - 14 |
12 |
14 - 16 |
23 |
18 - 21 |

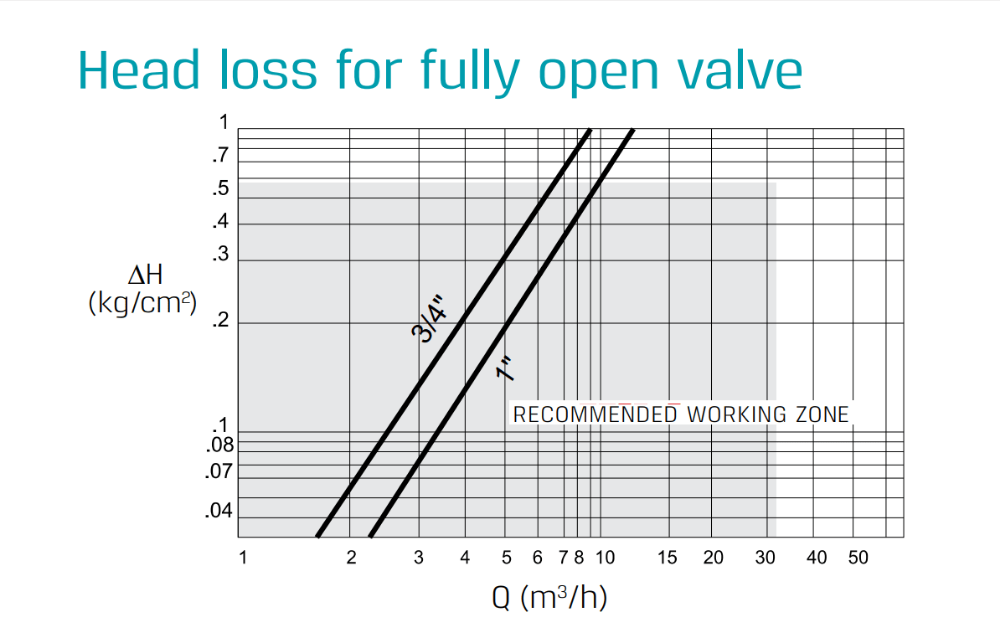

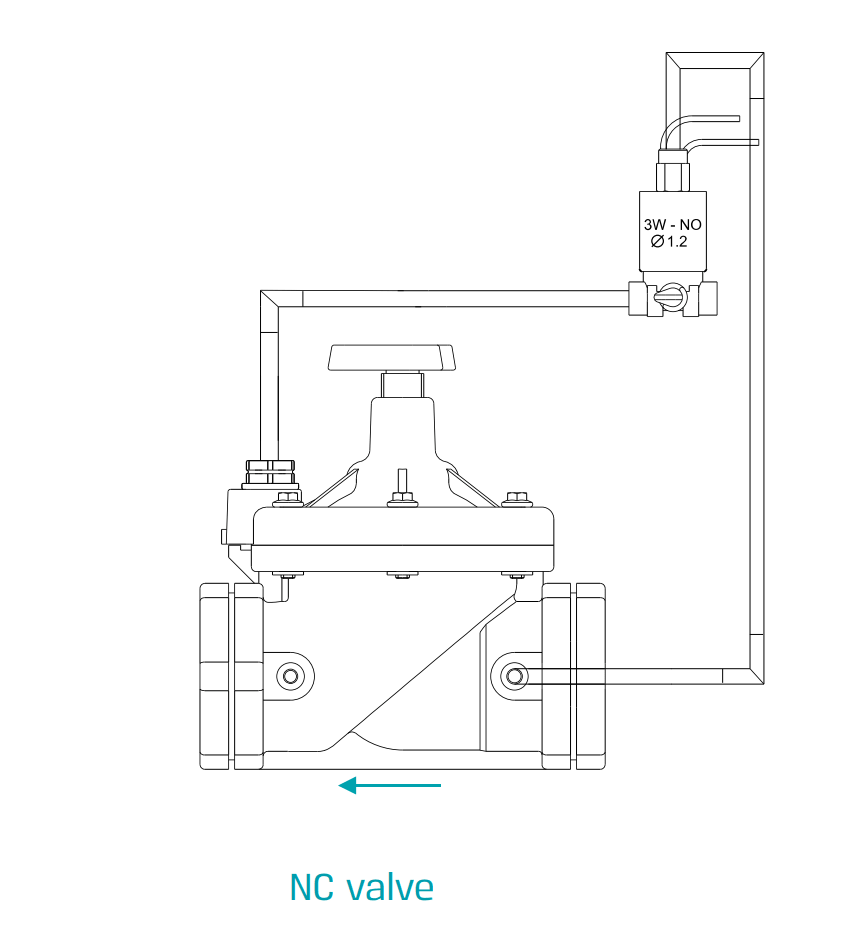

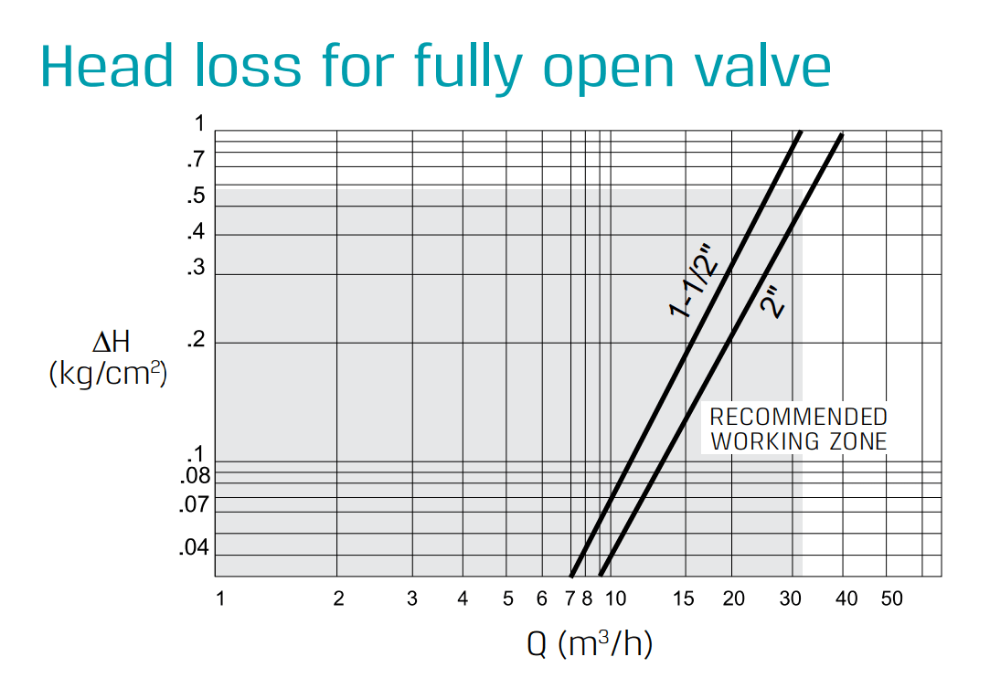

3 Way External Solenoid Pilot Control Irrigation Valve NC | G75-SE Plumbing Diagram
