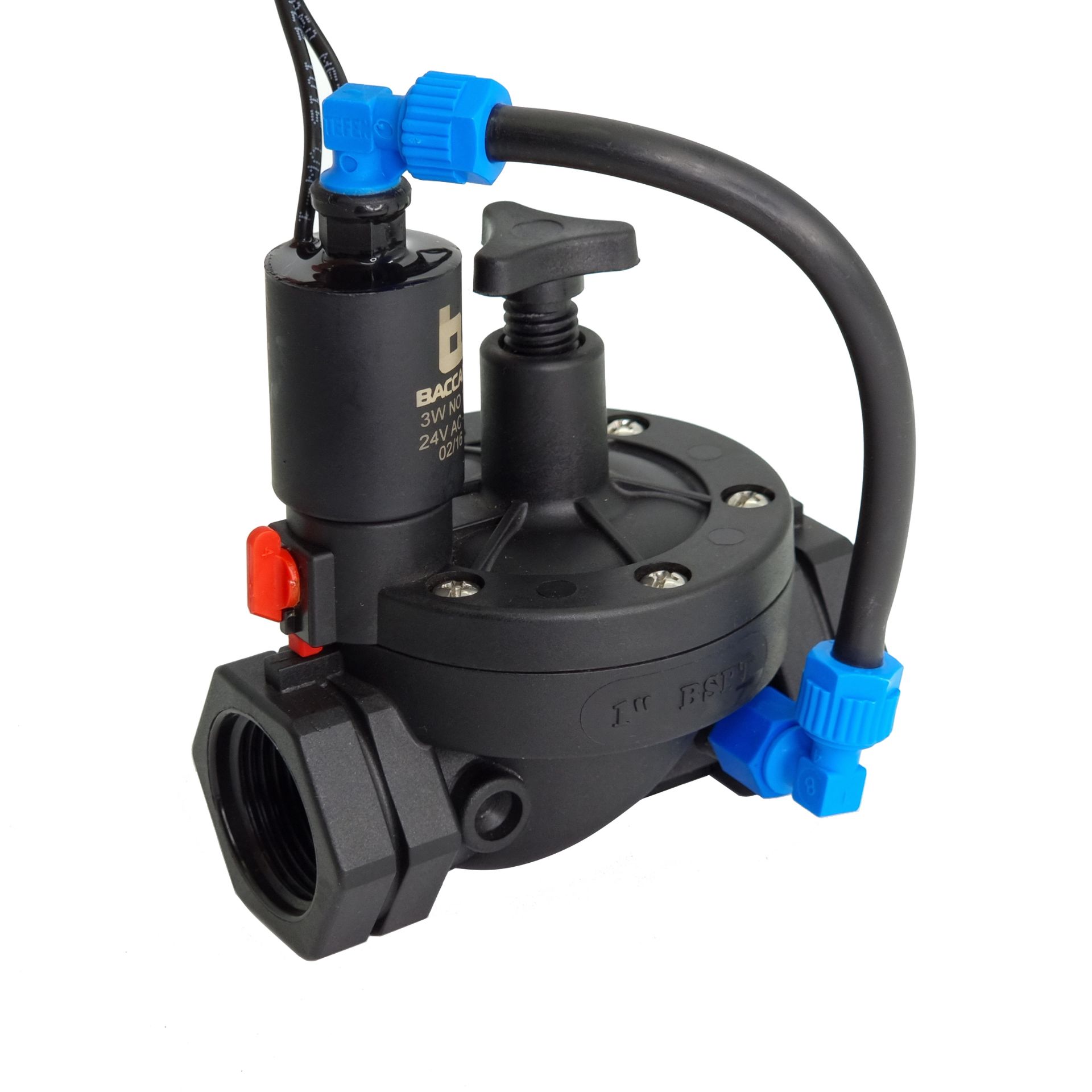

1" BSPT Plastic 2W NC 24V AC Solenoid Valve with Finger Filter, Manual Override & Flow Control

Size
:
1" BSP
Function
:
2 Way NC
Valve Operation
:
Body Material
:
Plastic
Seal
:
NBR
Pressure Range
:
0.3 - 10 bar
Media
:
Water
70,00 €
Manufacturer: Baccara
Delivery date 3-5 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Technical Data

Solenoid Supplied with 3W NO 1 2mm G75 operator
Assembly Upstream pilot control valve is supplied with
finger filter and accessories



Function 2 Way NC
Ports size 3/4", 1", 1-1/2", 2" BSPT
Pressure range 0.3 to 10 bar
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Reinforced Nylon
Main Valve:
Reinforced Nylon
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Diaphragm:
NR
Seals:
NBR
Spring:
Stainless Steel AISI 300 series
Solenoid • G75, 2W NC solenoids, all voltages.
• AC, DC and Latch
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal



Voltage and Power Consumption

  AC (W)
50 Hz
DC (W)
V 2 4.5
12
24
110



Voltage and Current Table

Solenoid Voltage Inrush [A] Holding [A]
2W 50 Hz +10%
n-20%

V
0.3 0.19
2W 60 Hz 0.2 0.14
3W 50/60 Hz 0.125 0.125
DC 4.5W



Coil Resistance vs Input voltage range

Resistance [ Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21

two-way-normally-closed-solenoid-valve-diagram

two-way-normally-closed-solenoid-valve-head-loss-for-fully-opened-valve-diagram

G75-S-Plumbing-Diagram

two-way-normally-closed-solenoid-valve-plumbing-diagram

Technical Data

Solenoid Supplied with 3W NO 1 2mm G75 operator
Assembly Upstream pilot control valve is supplied with
finger filter and accessories



Function 2 Way NC
Ports size 3/4", 1", 1-1/2", 2" BSPT
Pressure range 0.3 to 10 bar
Temperature range Fluid : 5ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC
Materials in contact
with media
Manual override:
Reinforced Nylon
Main Valve:
Reinforced Nylon
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Diaphragm:
NR
Seals:
NBR
Spring:
Stainless Steel AISI 300 series
Solenoid • G75, 2W NC solenoids, all voltages.
• AC, DC and Latch
Coil voltage • Voltage and power consumption - see table
• All Baccara coil voltages are ± 10% of nominal



Voltage and Power Consumption

  AC (W)
50 Hz
DC (W)
V 2 4.5
12
24
110



Voltage and Current Table

Solenoid Voltage Inrush [A] Holding [A]
2W 50 Hz +10%
n-20%

V
0.3 0.19
2W 60 Hz 0.2 0.14
3W 50/60 Hz 0.125 0.125
DC 4.5W



Coil Resistance vs Input voltage range

Resistance [ Suitable input voltage range [V]
4 6 - 9
9 12 - 14
12 14 - 16
23 18 - 21

two-way-normally-closed-solenoid-valve-diagram

two-way-normally-closed-solenoid-valve-head-loss-for-fully-opened-valve-diagram

G75-S-Plumbing-Diagram

two-way-normally-closed-solenoid-valve-plumbing-diagram
