Technical Data
| Function |
3 Way NC, NO |
| Ports size |
1/8” BSPT & NPT |
| Orifice size |
1 8 mm |
| Pressure range |
0 to 8 bar |
| Switching time |
30-50 ms |
| Temperature range |
Fluid : 0ºC to 50ºC (no freezing)
Ambient : -10ºC to 50ºC |
Materials in contact
with media |
Manual override:
Plastic (Reinforced Nylon)
Main Valve:
Plastic (Reinforced Nylon & POM)
Solenoid Operator:
Stainless Steel AISI 300 & 400 series
Seals:
EPDM |
| Mounting |
Lock nut on the bottom COM port |
| Manual override |
3 positions latch : Auto, Close, Open |
| Media |
Air, water |
| Coil voltage |
Latch |
| Standard protection class |
IP66 |
* Can only be operated with supplied coil

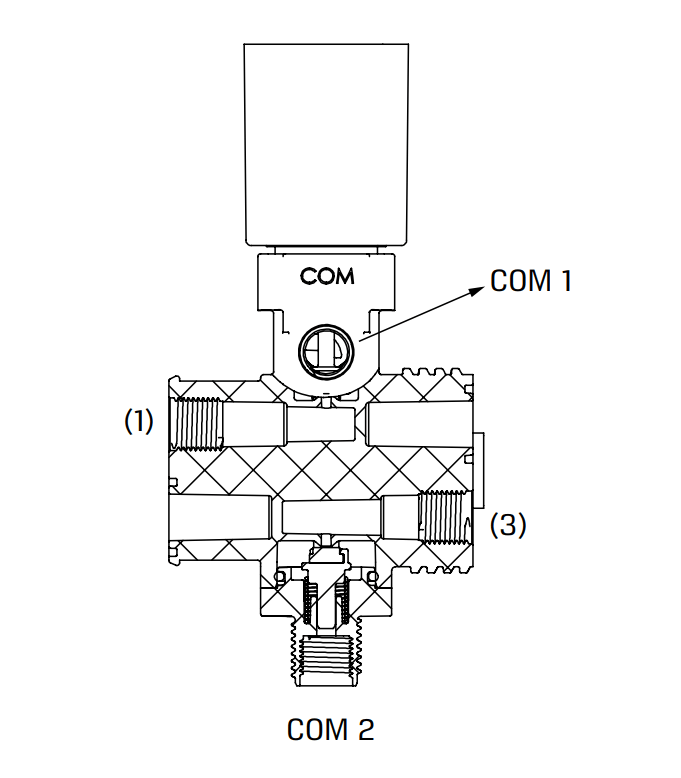

| PORT |
NO |
NC |
| 1 |
Exhaust |
Pressure |
| 3 |
Pressure |
Exhaust |
| COM |
Out |
Out |
Coil resistance vs input voltage range
| Resistance [Ω] |
Suitable input voltage range [V] |
| 4 |
6 - 9 |
| 9 |
12 - 14 |
| 12 |
14 - 16 |
| 23 |
18 - 21
|
