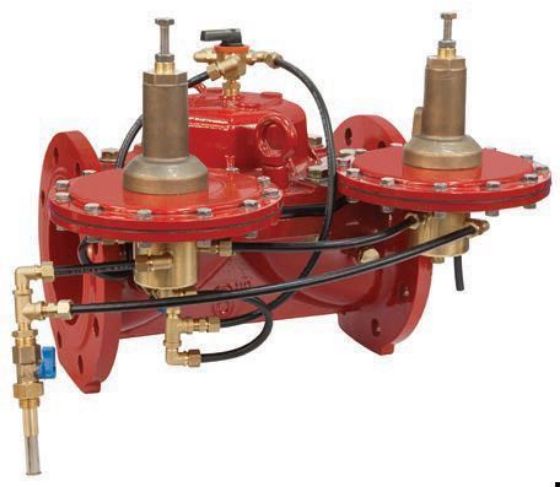

Bi-Level Altitude Controlled Valve 600 series

Bi-Level Altitude Controlled Valve

Be the first to review this product

Bi-Level Altitude Controlled Valve controls the water volume without float in an elevated tank.

Connection

:

Flanged - Threaded - Grooved End

Material

:

GG25 - GGG40

Coating

:

Epoxy

Temperature

:

-10 to 80 °C

Max Operating Pressure

:

10 - 16 - 25 bar

Made in

:

Turkey

848,00 €

Manufacturer: Armas Valves & Filters

SKU: 600-Series-ALT-B

Shipping

Delivery date 3-10 business days

Ship to

*

*

Shipping Method

Name

Estimated Delivery

Price

No shipping options

600 Series Valve Connection Type: *

Grooved End

Not available
Flanged

Not available

Grooved End Valve Size: *

Grooved End Valve Max Pressure: *

Flanged Valve Size: *

Flanged Valve Max Pressure: *

Qty:

+ -

Armas 600 Series - Bi-Level Altitude Controlled Valves

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

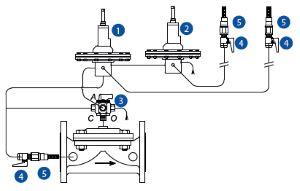

Bi-Level Altitude Controlled Valves 600 series parts

ARMAS 600 Series Bi-Level Altitude Controlled Valves

Armas Bi-Level Altitude Controlled Valves is an automatic, high sensitive double pilot controlled, level control valve, activated by the static pressure of the tank tower. The high sensitive pilot valves opens or close the main valve in response to the static pressure of water level in tank. The pilot valves located outside the tank tower. There is no need any floats. One of the pilot valve control the main valve according to minimum water level. The other one control the main valve according to maximum water level.

COMPONENTS:

Altitude Pilot
Altitude Pilot
3- Way Selector Valve
Ball Valves
In-line Finger Filters

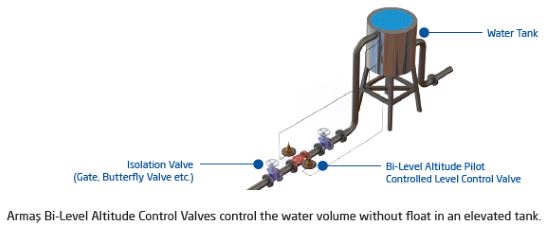

ARMAS 600 Series Bi-Level Altitude Controlled Valves Sample Application

Bi-Level Altitude Controlled Valves 600 series sample

Armas 600 Series - Bi-Level Altitude Controlled Valves

Applications

Irrigation
Industrial

FEATURES

The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
such as stem, bearing and seat exist in main valve body.
The valve position will be controlled by a hand operated selector valve.
Valve size same as main line or one size smaller.
Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
Made in Turkey

Bi-Level Altitude Controlled Valves 600 series parts

ARMAS 600 Series Bi-Level Altitude Controlled Valves

Armas Bi-Level Altitude Controlled Valves is an automatic, high sensitive double pilot controlled, level control valve, activated by the static pressure of the tank tower. The high sensitive pilot valves opens or close the main valve in response to the static pressure of water level in tank. The pilot valves located outside the tank tower. There is no need any floats. One of the pilot valve control the main valve according to minimum water level. The other one control the main valve according to maximum water level.

COMPONENTS:

Altitude Pilot
Altitude Pilot
3- Way Selector Valve
Ball Valves
In-line Finger Filters

ARMAS 600 Series Bi-Level Altitude Controlled Valves Sample Application

Bi-Level Altitude Controlled Valves 600 series sample
