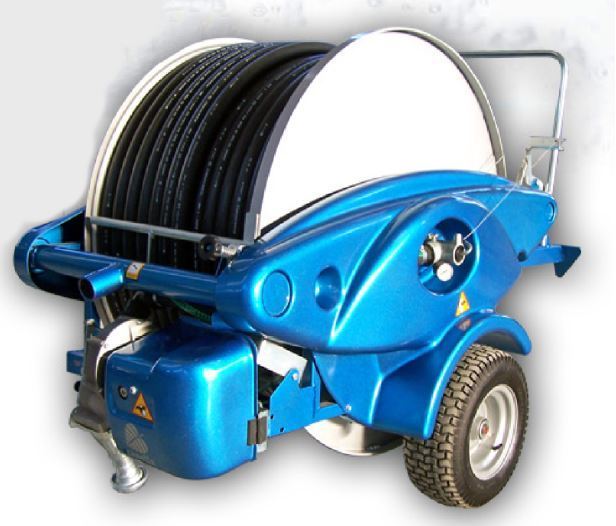

Casella Garden 50/160 Hard Hose Irrigator

1 review(s) | Add your review

Compact, easy to use small hard hose irrigator perfect for hobby farms and horse arenas.

Hose Length

160 m

Hose Diameter

50 mm

Hose Thickness

4.3 mm

Working Pressure

45 - 90 psi

Water Flow

90 - 280 l/min

Effective Spray Width (Diameter)

36 - 50 m

Total Irrigated Area

195 X 350 m = 68,250 m² (6.8 Hectare) in 7 days

Sprinkler

DuCaR Atom 28

Weight

285 kg

Mechanism

Gear Box directly integrated to turbine

Rewind Speed

10 - 40 m/h

Call for pricing

Manufacturer: Casella

SKU: Garden 50/160

Availability:

Out of stock

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

+ -

CASELLA Garden 50/160 Hard Hose Irrigator

Applications

Agriculture: Small crops and hobby farms

Turf Irrigation: Golf, race courses, playing fields and gardens

Dust Control: Mining and construction sites

FEATURES

Heavy duty design
Sprinkler trolley with quick unhooking mechanism
Travel shut-off mechanism
Highly efficient turbine and gear-box
Minimum pressure required 3.5 Bar, maximum 8 Bar.
Sensitive speed control between 10 to 40 m/h
Coaxial reducer to rewind the hose with hydraulic turbine.
Trolley with 2 rubber wheels
Compact dimensions, optimum weight balancing on wheels
Adjustable sector irrigator with nozzles of different diameters
Automatic stop at the end of the work
Water Flow : 90 - 280 l/min
Comes with DuCar Atom 28 Sprinkler Head
Excellent Water Uniformity
Long Life & Simple Maintenance : The units are built from long life components and require a minimum of maintenance. Spare parts and backup service available.
Easy and safe operation
Very low labour requirement : The Casella Garden 50/160 can easily be operated by one man and the labour consists mostly of driving a 4-wheeled bike.
Made in Italy

Download Catalog

Download Casella Quality Comparison Document

Download Casella Hard Hose Irrigators Rainfall Chart

Technical Specifications of DuCaR Atom 28 Sprinkler Head

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
10	.39	2	29	19	62	86,7	6,5	23	1134	0,28	4,6
10	.39	3	44	21	69	107	7,8	28	1385	0,34	4,6
10	.39	4	56	23	75	123	9,1	33	1661	0,41	4,5
10	.39	5	70	23,5	77	236	10,5	46	1734	0,43	5,2
12	.47	2	29	21,0	69	152	9,0	41	1385	0,34	6,7
12	.47	3	44	23,0	75	182	11,2	49	1661	0,41	6,7
12	.47	4	56	25,5	84	211	13,0	57	2042	0,50	6,4
12	.47	5	70	26,5	87	236	14,2	63	2205	0,54	5,2
14	.55	2	29	22,0	72	195	12,0	53	1520	0,38	8,4
14	.55	3	44	23,5	77	239	14,1	64	1734	0,43	8,4
14	.55	4	56	27,0	89	277	16,5	74	2289	0,57	7,4
14	.55	5	70	28,0	92	309	18,8	83	2462	0,61	7,7
