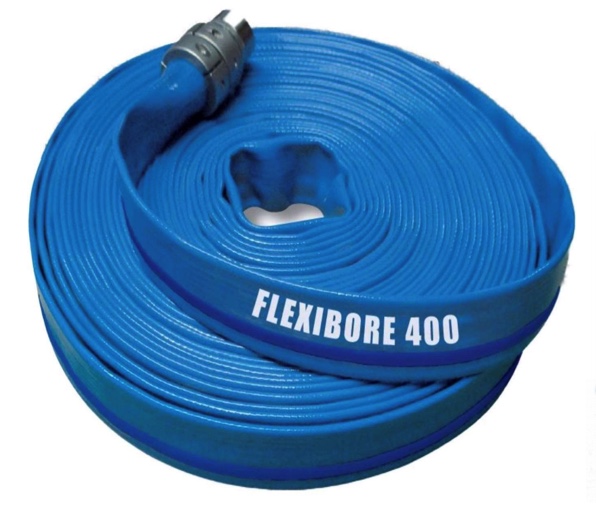

Flexibore 400 Layflat Bore Hose

A high quality layflat bore hose that can be used for deep ground water pumping up to 400m and can swell up to 10%, making it extremely efficient in reducing pumping costs and friction loss.


Inside Diameter Range
:
3" (76 mm) - 6" (152 mm)

Max. flow rate
:
18 - 90 litre/sec

Weight per Meter
:
1.5 - 3.5 kg

Burst Pressure Range
:
1350 - 1650 psi (90 - 110 Bar)


Australian Made
£74.00
£80.00
Manufacturer: Crusader Hose
SKU: Flexibore 400
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*

*Indicated prices are per metre. Please select a hose size to update the price above.

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

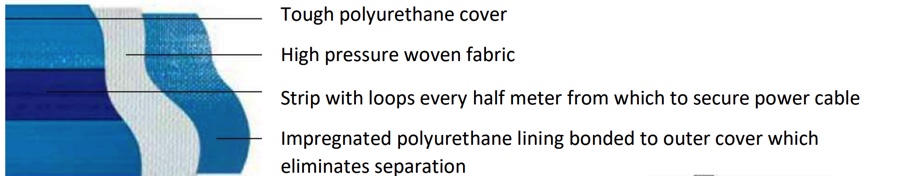

Flexibore® 400 is a high quality layflat hose for use inside boreholes and is manufactured by weaving a textile reinforcement of high-tensile polyester and encasing it with hydrolysis-resistant polyurethane. The woven polyester fabric gives the hosea high burst pressure for deep well pumping. It is also designed to handle the weight of the pump plus water up to 300m inside the bore.

Flexibore® 400 can swell up to 10% making it extremely efficient in reducing pumping costs and friction loss. By dilating under pressure, no internal build-up of iron bacteria occurs as seen with rigid pipe use such as polypipe or fibreglass.

It is made to suit deep bore water pumping applications and is manufactured in a large range of diameters, ranging from 76mm to 152mm. The hose can be available in a continuous length of up to 400m and each roll is fully tested prior to despatch. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore® 400 world's best quality features including:

  • Ultra deep deep ground water pumping up to 400m
  • Ultra-high pressure
  • High tensile for very large submersible pumps
  • Flexible so can be rolled up
  • Swells so no internal build-up
  • Rogorously tested
  • Secure coupling

It is ideal for:

  • Deep water bore pumping
  • Low cost pumping
  • Ease of installation and rapid retrieval
  • Continuous length

Technical Specifications


Other specifications:
  • Water pH range: 3 to 9
  • Maximum operating temperature: 60° C
  • Maximum diametric swell: 10%
  • Maximum extension: 0.5%
  • Safety factor: 2:1



COUPLING SET - 316 S/S

Two sets required per hose assembly

One set = one coupling and two clamps



JOINER SET 316 S/S

One set = one joiner and four clamps

Simplified Bore Water Retrieval

Bore water retrieval can be a difficult task and only recently, it has been simplified with modern flexible hose technology. Our revolutionary Flexibore® flexible rising main ensures simple and effective bore water retrieval. This layflat bore hose can be installed and retrieved with great ease compared to rigid pipes.

Flexibore® 400 is a high quality layflat hose for use inside boreholes and is manufactured by weaving a textile reinforcement of high-tensile polyester and encasing it with hydrolysis-resistant polyurethane. The woven polyester fabric gives the hosea high burst pressure for deep well pumping. It is also designed to handle the weight of the pump plus water up to 300m inside the bore.

Flexibore® 400 can swell up to 10% making it extremely efficient in reducing pumping costs and friction loss. By dilating under pressure, no internal build-up of iron bacteria occurs as seen with rigid pipe use such as polypipe or fibreglass.

It is made to suit deep bore water pumping applications and is manufactured in a large range of diameters, ranging from 76mm to 152mm. The hose can be available in a continuous length of up to 400m and each roll is fully tested prior to despatch. Secure couplings can be easily attached on site. A strip with intermittent loops every meter runs along the length of the hose. This allows the secure attachment of the electrical power cable to the hose and prevents possible rubbing against the bore casing.

Flexibore® 400 world's best quality features including:

  • Ultra deep deep ground water pumping up to 400m
  • Ultra-high pressure
  • High tensile for very large submersible pumps
  • Flexible so can be rolled up
  • Swells so no internal build-up
  • Rogorously tested
  • Secure coupling

It is ideal for:

  • Deep water bore pumping
  • Low cost pumping
  • Ease of installation and rapid retrieval
  • Continuous length

Technical Specifications


Other specifications:
  • Water pH range: 3 to 9
  • Maximum operating temperature: 60° C
  • Maximum diametric swell: 10%
  • Maximum extension: 0.5%
  • Safety factor: 2:1



COUPLING SET - 316 S/S

Two sets required per hose assembly

One set = one coupling and two clamps



JOINER SET 316 S/S

One set = one joiner and four clamps
