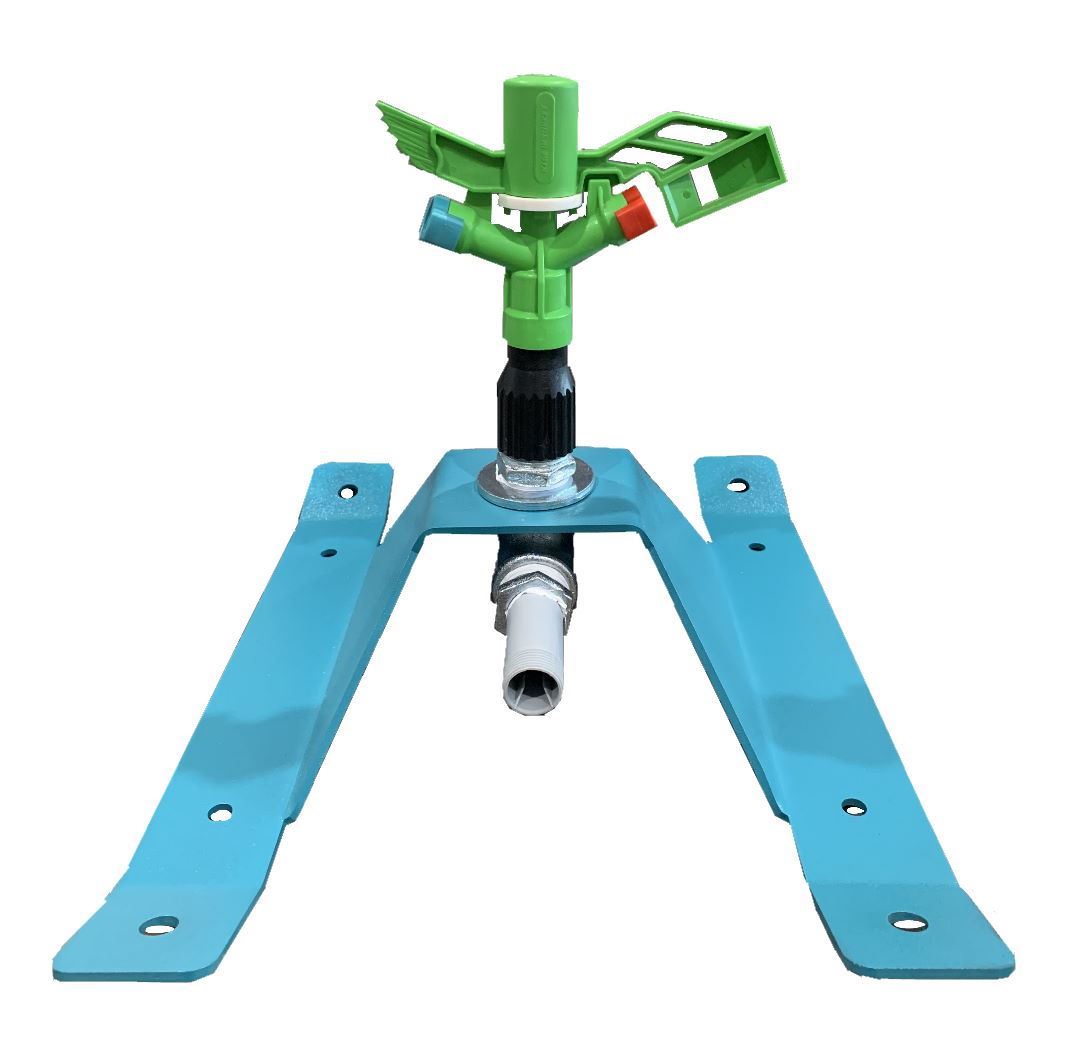

DuCaR Atom 15 FC LOW Flow Sprinkler with 1" Skid Base

Perfect for golf courses and residential areas, the new skid base can be easily dragged and suitable for any garden hoses!


Water Input
:
1" Female BSP

Working Pressure
:
29 - 64 psi

Water Flow
:
16 - 42.5 l/min

Shooting Radius
:
13 - 16.5 m

Nozzles
:
End Plug, 2.5 mm (Secondary); 4, 4.5, 5 mm

Body Angle
:
22° & 27°

Weight
:
4 kg

Operation
:
Full Circle

Skid Water Inlet
:
3/4" Male BSP

Made in
:
Turkey
£49.00
Manufacturer: DuCaR Sprinklers
SKU: ATMFCLF-SB1
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox presents NEW DuCar Atom 15 FC LOW Flow Sprinkler with 1" Skid Base! It can be easily dragged along your paddock! Thanks to its heavy duty design, it provides great stability for high pressure irrigation applications. The skid base has been designed for sprinklers with 1" female bsp inlet and 3/4" garden hoses. This powder coated skid base is perfect for golf courses, hobby gardens and residential irrigation applications!



Some unique benefits of DuCaR 1" Skid Base:



  • Allows for quick and easy transportation
  • Works with a large range of sprinkler heads
  • The standard 1" male sprinkler connection fittigs can be replaced with smaller fittings for smaller sprinkler heads
  • 3/4" male water inlet fitting contains special turbulence stopping blades
  • Suitable for any type of garden hose with 3/4" female bsp fitting
  • Length: 42.5 cm
  • Width: 33.5 cm
  • Height: 13.5 cm
  • Weight: 3.7 kg





ONE sprinkler does the same job that TWO different sprinklers do. World's first plastic low volume impact sprinkler with SWITCHABLE ARM!

The atom 15 FC low flow sprinklers, small and medium discharge, operate over a full 360 degrees. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for low flow rate and pressure fixed irrigation installation and over-tree irrigation of orchards, vineyards and nurseries.

Comes with 3 NOZZLES (End Plug - 2.5 - 5 mm) and a jet breaker.

The Atom 15 FC LFsprinkler is most commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers.

By using the body angle of 270, optimum irrigation can be ensured. Thanks to its nozzle used as a blind plug, your sprinkler head can be also used with only one trajectory. In windy regions, the arm can be switched easily and water outlet of 220 can be used as a driver trajectory. Thanks to this, it will spray the water from a lower point and so, the impact of wind will be the minimum.

This sprinkler has a medium flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. “It is a male rotor 1” circular farm, made of engineering plastic and has two references depending on the angle of mounting.

The Atom 15FC low flow sprinkler can work with one or two nozzle. The main nozzle is 27° inclination to the horizontal plane and the secondary 22°.

These nozzles can be used in four combinations to suit the different working conditions.

1) Main nozzle 27°, second nozzle 22° for standard conditions.

2) Main nozzle 22°, second nozzle 27° for windy conditions.

3) Main nozzle 27°, second nozzle closed for standard low water applications.

4) Main nozzle 22°, second nozzle closed for windy low water applications.



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 1 NOZZLE)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm Shape atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4.0 2.0 29 13.0 43 15.0 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.4 6.2 707 0.17 2.0
5 2 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5 2.5 36 15.5 49 24.3 1.46 6.4 707 0.17 2.1
5 3 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 2 NOZZLES)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm Shape atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4mm x 2,5mm 3 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm x 2,5mm 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4mm x 2,5mm 2.0 29 13 43 18,3 1.10 4.8 531 0.13 2.1
4mm x 2,5mm 3.5 50 14.6 48 27.5 1.65 7.3 669 0.17 2.5
4mm x 2,5mm 4.5 64 15.0 49 30.3 1.82 8.0 707 0.17 2.6
4mm x 2,5mm 2.0 29 13.0 43 25.8 1.55 6.8 531 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm x 2,5mm 2.5 36 13.5 44 28.3 1.70 7.5 572 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 30.3 1.82 8.0 660 0.16 2.8
4.5mm x 2,5mm 3.5 50 15.0 49 34.2 2.05 9 707 0.17 2.9
4.5mm x 2,5mm 4.5 64 15.5 51 37.5 2.25 9.9 754 0.19 3.0
5mm x 2,5mm 2 29 14.0 46 29.2 1.75 7.7 615 0.15 2.8
5mm x 2,5mm 2.5 36 15.0 49 32.5 1.95 8.6 707 0.17 2.8
5mm x 2,5mm 3 43 15.5 51 35.8 2.15 9.5 754 0.19 2.9
5mm x 2,5mm 3.5 50 16.0 52 38.3 2.3 10.1 804 0.20 2.9
5mm x 2,5mm 4.5 64 16.5 54 42.5 2.55 11.2 855 0.21 3

IrrigationBox presents NEW DuCar Atom 15 FC LOW Flow Sprinkler with 1" Skid Base! It can be easily dragged along your paddock! Thanks to its heavy duty design, it provides great stability for high pressure irrigation applications. The skid base has been designed for sprinklers with 1" female bsp inlet and 3/4" garden hoses. This powder coated skid base is perfect for golf courses, hobby gardens and residential irrigation applications!



Some unique benefits of DuCaR 1" Skid Base:



  • Allows for quick and easy transportation
  • Works with a large range of sprinkler heads
  • The standard 1" male sprinkler connection fittigs can be replaced with smaller fittings for smaller sprinkler heads
  • 3/4" male water inlet fitting contains special turbulence stopping blades
  • Suitable for any type of garden hose with 3/4" female bsp fitting
  • Length: 42.5 cm
  • Width: 33.5 cm
  • Height: 13.5 cm
  • Weight: 3.7 kg





ONE sprinkler does the same job that TWO different sprinklers do. World's first plastic low volume impact sprinkler with SWITCHABLE ARM!

The atom 15 FC low flow sprinklers, small and medium discharge, operate over a full 360 degrees. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for low flow rate and pressure fixed irrigation installation and over-tree irrigation of orchards, vineyards and nurseries.

Comes with 3 NOZZLES (End Plug - 2.5 - 5 mm) and a jet breaker.

The Atom 15 FC LFsprinkler is most commonly used for agricultural spray irrigation of grains including wheat, barley or corn, alfalfa, beets, potatoes, legumes and tubers.

By using the body angle of 270, optimum irrigation can be ensured. Thanks to its nozzle used as a blind plug, your sprinkler head can be also used with only one trajectory. In windy regions, the arm can be switched easily and water outlet of 220 can be used as a driver trajectory. Thanks to this, it will spray the water from a lower point and so, the impact of wind will be the minimum.

This sprinkler has a medium flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. “It is a male rotor 1” circular farm, made of engineering plastic and has two references depending on the angle of mounting.

The Atom 15FC low flow sprinkler can work with one or two nozzle. The main nozzle is 27° inclination to the horizontal plane and the secondary 22°.

These nozzles can be used in four combinations to suit the different working conditions.

1) Main nozzle 27°, second nozzle 22° for standard conditions.

2) Main nozzle 22°, second nozzle 27° for windy conditions.

3) Main nozzle 27°, second nozzle closed for standard low water applications.

4) Main nozzle 22°, second nozzle closed for windy low water applications.



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 1 NOZZLE)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm Shape atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4.0 2.0 29 13.0 43 15.0 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.4 6.2 707 0.17 2.0
5 2 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5 2.5 36 15.5 49 24.3 1.46 6.4 707 0.17 2.1
5 3 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5 3.5 50 16 52 28.7 1.72 7.6 804 0.20 2.1



Technical Specifications (DuCaR Atom 15 FC LOW Flow with 2 NOZZLES)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm Shape atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4mm x 2,5mm 3 43 14.2 47 17.5 1.05 4.6 633 0.16 1.7
4mm x 2,5mm 2.5 36 13.5 44 16.0 0.96 4.2 572 0.14 1.7
4mm x 2,5mm 2.0 29 13 43 18,3 1.10 4.8 531 0.13 2.1
4mm x 2,5mm 3.5 50 14.6 48 27.5 1.65 7.3 669 0.17 2.5
4mm x 2,5mm 4.5 64 15.0 49 30.3 1.82 8.0 707 0.17 2.6
4mm x 2,5mm 2.0 29 13.0 43 25.8 1.55 6.8 531 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5mm x 2,5mm 2.5 36 13.5 44 28.3 1.70 7.5 572 0.13 2.9
4.5mm x 2,5mm 3 43 14.5 48 30.3 1.82 8.0 660 0.16 2.8
4.5mm x 2,5mm 3.5 50 15.0 49 34.2 2.05 9 707 0.17 2.9
4.5mm x 2,5mm 4.5 64 15.5 51 37.5 2.25 9.9 754 0.19 3.0
5mm x 2,5mm 2 29 14.0 46 29.2 1.75 7.7 615 0.15 2.8
5mm x 2,5mm 2.5 36 15.0 49 32.5 1.95 8.6 707 0.17 2.8
5mm x 2,5mm 3 43 15.5 51 35.8 2.15 9.5 754 0.19 2.9
5mm x 2,5mm 3.5 50 16.0 52 38.3 2.3 10.1 804 0.20 2.9
5mm x 2,5mm 4.5 64 16.5 54 42.5 2.55 11.2 855 0.21 3
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full
Minimum Required Pressure 29 psi (2 bar)
Maximum Working Pressure 64 psi (4.5 bar)
Minimum Required Water Flow 22 l/min
Maximum Water Flow 45 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
