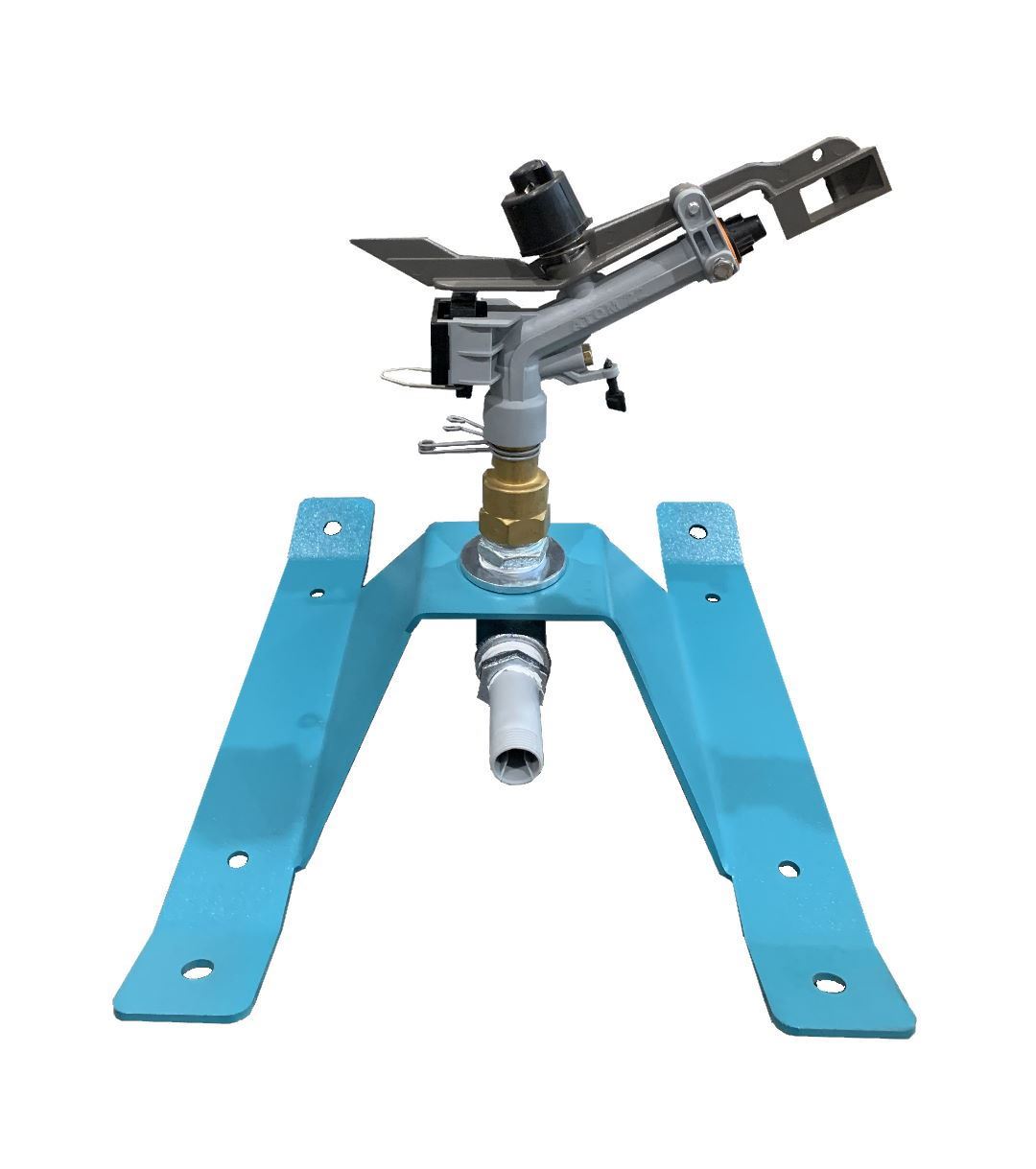

DuCaR Atom 22 Sprinkler with 1" Skid Base

SKU: ATM22-SB1
Delivery date: 2-3 business days
Manufacturer: DuCaR Sprinklers

Perfect for hobby gardens and small acreages, the new skid base allows for quick and easy transportation!


Water Input
:
1" Female BSP

Working Pressure
:
21 - 56 psi

Water Flow
:
46 - 144 l/min

Shooting Radius
:
15 - 21 m

Free Nozzles
:
6, 8, 10 mm

Body Angle
:
30°

Box Dimensions
:
45x35x12 cm

Weight
:
4.3 kg

Skid Water Inlet
:
3/4" Male BSP

Sprinkler Housing
:
Brass
£71.00

IrrigationBox presents NEW DuCar Atom 22 Sprinkler with 1" Skid Base! It can be easily dragged along your paddock! Thanks to its heavy duty design it provides great stability for high pressure irrigation applications. The skid base has been designed for sprinklers with 1" female bsp inlet and 3/4" garden hoses. This powder coated skid base is perfect for golf courses, hobby gardens and residential irrigation applications!

Some unique benefits of DuCaR 1" Skid Base:

  • Allows for quick and easy transportation
  • Works with a large range of sprinkler heads
  • The standard 1" male sprinkler connection fittings can be replaced with smaller fittings for smaller sprinkler heads
  • 3/4" male water inlet fitting contains special turbulence stopping blades
  • Suitable for any type of garden hose with 3/4" female bsp fitting
  • Length: 42.5 cm
  • Width: 33.5 cm
  • Height: 13.5 cm
  • Weight: 3.7 kg



Ducar ATOM 22 is the introductory model of our low-mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 22 sprinkler:

  • Comes with 3 different nozzles (6 mm, 8 mm, 10mm)
  • Runs on pressure range between 21 to 56 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 42m diameter
  • Lays down 2.5 to 8.6 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Unlike the other impact type sprinklers, it does not have a jet breaker attached to nozzle, so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
  • Great for any field crops and vegetables
  • Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel



Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
6 0.236 2 29 15.0 49 46 2.8 12 707 0.17 4.0
6 0.236 3 44 17.0 56 56 3.4 15 907 0.22 3.7
6 0,236 4 56 18.0 59 65 3.9 17 1017 0.25 3.8
8 0.31 1.5 29 14.5 48 61 3.7 16 660 0.16 5.6
8 0.31 2 44 16.5 54 71 4.3 19 855 0.21 5.0
8 0.31 3 56 18.0 59 86 5.2 23 1017 0.25 5.1
8 0.31 4 70 19.0 62 100 6.0 26 1134 0.28 5.3
10 0.39 2 29 17.0 56 102 6.1 27 907 0.22 6.7
10 0.39 3 44 19.5 64 124 7.4 33 1194 0.29 6.2
10 0.39 4 56 21.0 69 144 8.6 38 1385 0.34 6.2

IrrigationBox presents NEW DuCar Atom 22 Sprinkler with 1" Skid Base! It can be easily dragged along your paddock! Thanks to its heavy duty design it provides great stability for high pressure irrigation applications. The skid base has been designed for sprinklers with 1" female bsp inlet and 3/4" garden hoses. This powder coated skid base is perfect for golf courses, hobby gardens and residential irrigation applications!

Some unique benefits of DuCaR 1" Skid Base:

  • Allows for quick and easy transportation
  • Works with a large range of sprinkler heads
  • The standard 1" male sprinkler connection fittings can be replaced with smaller fittings for smaller sprinkler heads
  • 3/4" male water inlet fitting contains special turbulence stopping blades
  • Suitable for any type of garden hose with 3/4" female bsp fitting
  • Length: 42.5 cm
  • Width: 33.5 cm
  • Height: 13.5 cm
  • Weight: 3.7 kg



Ducar ATOM 22 is the introductory model of our low-mid volume sprinklers which provides long shooting range with perfectly even distribution at a great price!

Some unique benefits of DuCaR ATOM 22 sprinkler:

  • Comes with 3 different nozzles (6 mm, 8 mm, 10mm)
  • Runs on pressure range between 21 to 56 psi
  • Full and part (angle-adjusted) circle irrigation
  • Irrigates up to 42m diameter
  • Lays down 2.5 to 8.6 tons of water per hour
  • Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
  • Unlike the other impact type sprinklers, it does not have a jet breaker attached to nozzle, so when the water pushes the arm out of the stream the sprinkler is allowed to throw full distance un-diffused
  • Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
  • Secondary nozzle enables you to irrigate bottom area of the sprinkler even in low pressure & volume applications
  • Great for any field crops and vegetables
  • Lower Body Rotation Mechanism: BRASS housing, Teflon and stainless steel



Technical Specifications

Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mminchatmpsimfeetl/minm3/hG.P.Mm2acremm/h
6 0.236 2 29 15.0 49 46 2.8 12 707 0.17 4.0
6 0.236 3 44 17.0 56 56 3.4 15 907 0.22 3.7
6 0,236 4 56 18.0 59 65 3.9 17 1017 0.25 3.8
8 0.31 1.5 29 14.5 48 61 3.7 16 660 0.16 5.6
8 0.31 2 44 16.5 54 71 4.3 19 855 0.21 5.0
8 0.31 3 56 18.0 59 86 5.2 23 1017 0.25 5.1
8 0.31 4 70 19.0 62 100 6.0 26 1134 0.28 5.3
10 0.39 2 29 17.0 56 102 6.1 27 907 0.22 6.7
10 0.39 3 44 19.5 64 124 7.4 33 1194 0.29 6.2
10 0.39 4 56 21.0 69 144 8.6 38 1385 0.34 6.2
Products specifications
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full & Part
Minimum Required Pressure 21 psi (1.5 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 40 l/min
Maximum Water Flow 180 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
Box Dimension 19.5x 20x45 cm
