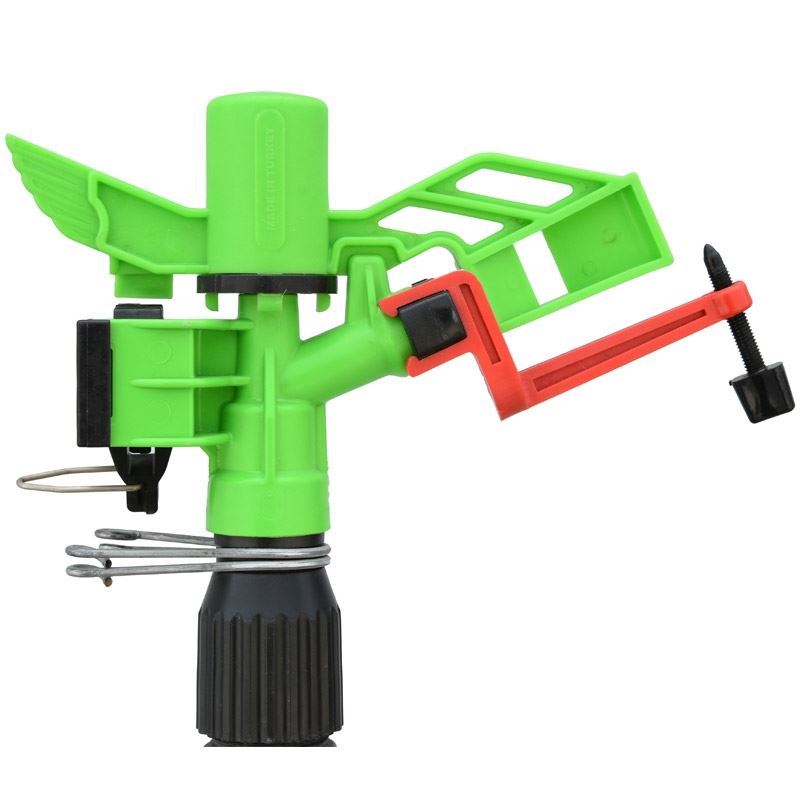

DuCaR Atom 15PC LOW Flow

UV resistant, perfect uniformity, plastic, impact part circle sprinkler. Suitable for residential irrigation.


Water Input
:
1" Female BSP

Working Pressure
:
29 - 50 psi

Water Flow
:
15 - 28.7 l/min

Shooting Radius
:
13 - 16 m

Suitable Nozzles
:
4, 4.5, 5 mm

Body Angle
:
23°

Weight
:
0.25 kg

Operation
:
Full & Part Circle

Material
:
Plastic

Made in
:
Turkey
£10.00
Manufacturer: DuCaR Sprinklers
SKU: Atom15PC-LF
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

IrrigationBox proudly presents revolutionary new generation low volume DuCar Atom 15 PC LOW FLOW sprinkler!

We guarantee 100% satisfaction!

The Atom 15 PC LOW FLOW sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a low flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It has a 1" female pastic BSP threaded inlet and comes with 4.5 mm (black) nozzle.



Technical Specifications (DuCaR Atom 15 PC LOW FLOW)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm Shape atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4.0 2.0 29 13.0 43 15 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 105 4.6 633 0.16 1.7
4.0 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3.0 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.40 6.2 707 0.17 2.0
5.0 2.0 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5.0 2.5 36 15.0 49 24.3 1.46 6.4 707 0.17 2.1
5.0 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5.0 3.5 50 16.0 52 28.7 1.72 7.6 804 0.20 2.1

IrrigationBox proudly presents revolutionary new generation low volume DuCar Atom 15 PC LOW FLOW sprinkler!

We guarantee 100% satisfaction!

The Atom 15 PC LOW FLOW sprinklers, small and medium discharge, operate over a full 360 degrees or adjusted angle. It is equipped with various interchangeable nozzles and an adjustable jet breaker. This model, made from engineering plastics, is long lasting with optimum efficiency. It is ideal for fixed installation and over-tree irrigation of orchards, vineyards and nurseries.

The Atom 15 PC LOW FLOW sprinkler is most commonly used for residential and vegi garden spray irrigation.

By using the body angle of 230, optimum irrigation can be ensured

This sprinkler has a low flow sprayer, specifically designed to operate at different angles and under extreme temperature conditions. It has a 1" female pastic BSP threaded inlet and comes with 4.5 mm (black) nozzle.



Technical Specifications (DuCaR Atom 15 PC LOW FLOW)



Nozzle Diameter Pressure Jet Length Capacity Values for a single sprinkler
Irrigated Area Rainfall per hour
mm Shape atm psi m feet l/min m3/h G.P.M m2 acre mm/h
4.0 2.0 29 13.0 43 15 0.9 4.0 531 0.13 1.7
4.0 2.5 36 13.5 44 16 0.96 4.2 572 0.14 1.7
4.0 3.0 43 14.2 47 17.5 105 4.6 633 0.16 1.7
4.0 3.5 50 14.6 48 20.8 1.25 5.5 669 0.17 1.9
4.5 2.0 29 13.0 43 17.5 1.05 4.6 531 0.13 2.0
4.5 2.5 36 13.5 44 19.7 1.18 5.2 572 0.14 2.1
4.5 3.0 43 14.5 48 21.5 1.29 5.7 660 0.16 2.0
4.5 3.5 50 15.0 49 23.3 1.40 6.2 707 0.17 2.0
5.0 2.0 29 14.0 46 22.5 1.35 5.9 615 0.15 2.2
5.0 2.5 36 15.0 49 24.3 1.46 6.4 707 0.17 2.1
5.0 3.0 43 15.5 51 26.5 1.59 7.0 754 0.19 2.1
5.0 3.5 50 16.0 52 28.7 1.72 7.6 804 0.20 2.1
Products specifications
Attribute name Attribute value
Body Angle Medium Body Angle (23 ° to 30 °)
Water Input 1"
Circle Full & Part
Minimum Required Pressure 21 psi (1.5 bar)
Maximum Working Pressure 59 psi (4 bar)
Minimum Required Water Flow 22 l/min
Maximum Water Flow 45 l/min
Minimum Shooting Range 13 - 15 m
Maximum Shooting Range 20 - 25 m
