DuCaR B 30

2 review(s) | Add your review

Double-nozzle system, long throw, brass housing, A+ uniformity, clean water irrigation sprinkler.

Water Input

1.5" Female BSP

Working Pressure

29 - 85 psi

Water Flow

100 - 391 l/min

Shooting Radius

17 - 31 m

Free Nozzles

8, 10, 12, 14 mm

Body Angle

27°

Box Dimensions

40x25x6 cm

Weight

1.5 kg

Sprayers

Material

Cast-Iron, Aluminium, Brass & Plastic

Made in

Turkey

Price: 92,00 €

Old price: 111,00 €

Manufacturer: DuCaR Sprinklers

SKU: B30

Shipping

Delivery date 2-3 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 1.5" Quick-Connect Fittings for Impact or Gear Drive Sprinklers [+30,00 €]
DuCaR 1.5" Wheeled Sprinkler Cart [+203,00 €]
DuCaR 1.5" 4-Legged Pro Connection Stand [+185,00 €]

Qty:

+ -

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

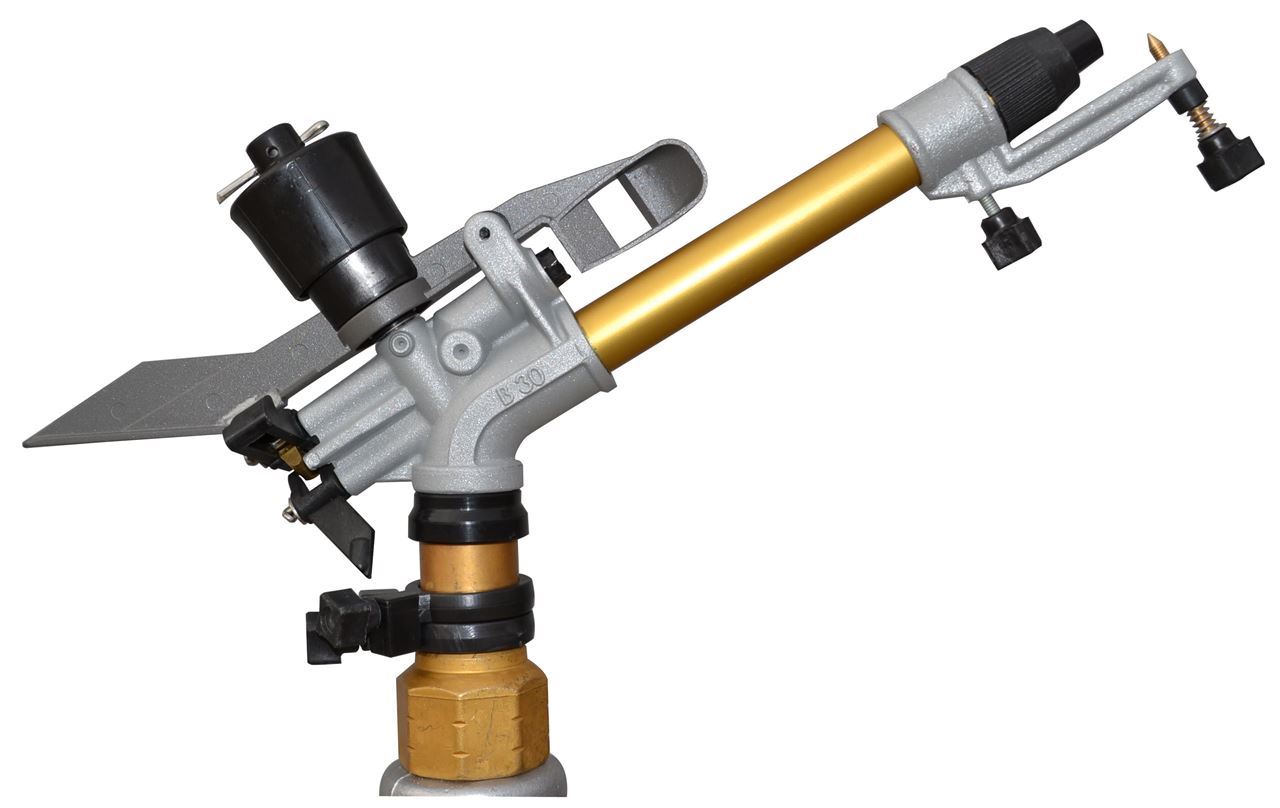

Ducar B 30 is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR B 30 sprinkler:

Comes with 4 different nozzles (12, 14, 16, 18 mm)
2 Trajectories (Small one drives the sprinkler)
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 62m diameter!
Lays down 6 to 23.5 tons of water per hour
Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
8	.31	2	29	17	56	100	6,00	26	907	0,22	6,6
8	.31	3	44	19	62	120,8	7,25	32	1134	0,28	6,4
8	.31	4	56	21	69	141,7	8,50	37	1385	0,34	6,1
10	.39	2	29	18	59	130	7,80	34	1017	0,25	7,7
10	.39	3	44	21	69	160	9,60	42	1385	0,34	6,9
10	.39	4	56	22,5	74	185	11,10	49	1590	0,39	7,0
10	.39	5	70	24,5	80	208,3	12,50	55	1885	0,47	6,6
12	.47	2	29	19	62	168,3	10,10	44	1134	0,28	8,9
12	.47	3	44	22	72	206,7	12,40	55	1520	0,38	8,2
12	.47	4	56	25	82	241,7	14,50	64	1963	0,48	7,4
12	.47	5	70	27	89	270	16,20	71	2289	0,57	7,1
14	.55	2	29	21	69	216,7	13,00	57	1385	0,34	9,4
14	.55	3	44	24	79	266,7	16,00	70	1809	0,45	8,8
14	.55	4	56	26	85	308,3	18,50	81	2123	0,52	8,7
14	.55	5	70	28,5	93	350	21,00	92	2550	0,63	8,2
14	.55	6	85	31	102	391,7	23,50	103	3018	0,75	7,8

Comes with 4 different nozzles (12, 14, 16, 18 mm)
2 Trajectories (Small one drives the sprinkler)
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 62m diameter!
Lays down 6 to 23.5 tons of water per hour
Its 27° body angle reduces the effects of the wind more than 30° and 33° versions; conveniently used for any type of irrigation.
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
8	.31	2	29	17	56	100	6,00	26	907	0,22	6,6
8	.31	3	44	19	62	120,8	7,25	32	1134	0,28	6,4
8	.31	4	56	21	69	141,7	8,50	37	1385	0,34	6,1
10	.39	2	29	18	59	130	7,80	34	1017	0,25	7,7
10	.39	3	44	21	69	160	9,60	42	1385	0,34	6,9
10	.39	4	56	22,5	74	185	11,10	49	1590	0,39	7,0
10	.39	5	70	24,5	80	208,3	12,50	55	1885	0,47	6,6
12	.47	2	29	19	62	168,3	10,10	44	1134	0,28	8,9
12	.47	3	44	22	72	206,7	12,40	55	1520	0,38	8,2
12	.47	4	56	25	82	241,7	14,50	64	1963	0,48	7,4
12	.47	5	70	27	89	270	16,20	71	2289	0,57	7,1
14	.55	2	29	21	69	216,7	13,00	57	1385	0,34	9,4
14	.55	3	44	24	79	266,7	16,00	70	1809	0,45	8,8
14	.55	4	56	26	85	308,3	18,50	81	2123	0,52	8,7
14	.55	5	70	28,5	93	350	21,00	92	2550	0,63	8,2
14	.55	6	85	31	102	391,7	23,50	103	3018	0,75	7,8

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	100 l/min
Maximum Water Flow	400 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	30 - 40 m
Box Dimension	25x40x6 cm
Nozzles	12, 14, 16, 18 mm
Weight	1.5 kg
