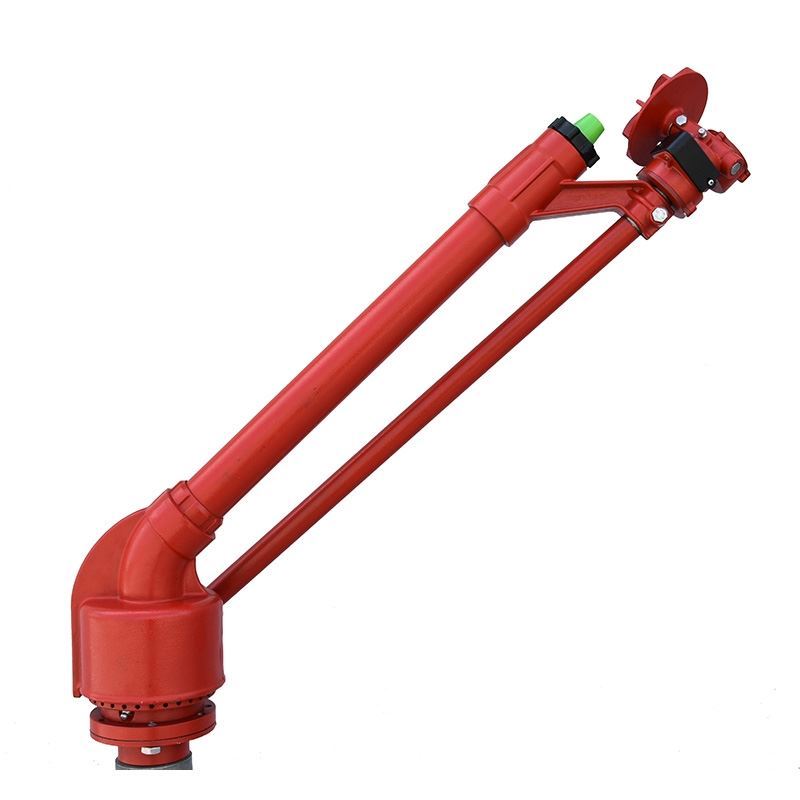

DuCaR Dust JET

1 review(s) | Add your review

Mining - Dust Supression Rain Gun Sprinkler

Water Input

2" Female BSP

Working Pressure

44 - 100 psi

Water Flow

250 - 967 l/min

Shooting Radius

27 - 47 m

Free Nozzles

12, 14, 16, 18, 20, 22, 24 mm

Body Angle

43°

Box Dimensions

20x20x89 cm

Weight

9 kg

Made in

Turkey

548,00 €

Manufacturer: DuCaR Sprinklers

SKU: DSTJET

Availability:

In stock

Shipping

Delivery date 3-5 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2" Wheeled Cart with Extendable Legs [+234,00 €]
DuCaR 2" 4-Legged Connection Stand with Quick Coupling [+216,00 €]
DuCaR 2" Inlet/Outlet Quick Coupling [+43,00 €]
DuCaR 2" Wheeled Cart with Hose Reel [+277,00 €]

Qty:

+ -

Special design, gear drive dust control and suppression sprinkler allows irrigation and humidification of large lands with minimum water consumption.

Replaceable water breaker and gear drive mechanism ensure the droplets are spread over the working area in a form of mist screen. As the gear drive dust control sprinkler moves constantly, it ensures uninterrupted dust suppression. It has excellent and same forward and reverse speed. The Dust Jet is resistant to light to medium degree chemical.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M
Nozzle Diameter		Pressure		Jet Length		Capacity
14	.55	3	44	27,5	90	250	15	66
14	.55	4	56	30,5	100	287	17,2	76
14	.55	5	70	32,5	107	322	19,3	85
14	.55	6	85	34	112	343	20,6	91
16	.62	3	44	30,5	100	313	18,8	83
16	.62	4	56	33,5	110	358	21,5	95
16	.62	5	70	35	115	403	24,2	107
16	.62	6	85	37,5	123	425	25,5	112
18	.70	4	56	35,5	116	467	28	123
18	.70	5	70	37,5	123	493	29,6	130
18	.70	6	85	40	131	543	32,6	144
20	.78	3	44	33,5	110	462	27,7	122
20	.78	4	56	37	121	553	33,2	146
20	.78	5	70	39,5	130	608	36,5	161
20	.78	6	85	42	138	632	37,9	167
22	.86	3	44	35	115	873	34,4	151
22	.86	4	56	38,5	126	658	59,5	174
22	.86	5	70	41	134	733	44	194
22	.86	6	85	43	141	767	46	203
24	.94	4	56	39	128	788	47,3	208
24	.94	5	70	41,5	136	818	49,1	216
24	.94	6	85	45	148	902	51,1	238
24	.94	7	100	47	154	967	58	255

Special design, gear drive dust control and suppression sprinkler allows irrigation and humidification of large lands with minimum water consumption.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M
Nozzle Diameter		Pressure		Jet Length		Capacity
14	.55	3	44	27,5	90	250	15	66
14	.55	4	56	30,5	100	287	17,2	76
14	.55	5	70	32,5	107	322	19,3	85
14	.55	6	85	34	112	343	20,6	91
16	.62	3	44	30,5	100	313	18,8	83
16	.62	4	56	33,5	110	358	21,5	95
16	.62	5	70	35	115	403	24,2	107
16	.62	6	85	37,5	123	425	25,5	112
18	.70	4	56	35,5	116	467	28	123
18	.70	5	70	37,5	123	493	29,6	130
18	.70	6	85	40	131	543	32,6	144
20	.78	3	44	33,5	110	462	27,7	122
20	.78	4	56	37	121	553	33,2	146
20	.78	5	70	39,5	130	608	36,5	161
20	.78	6	85	42	138	632	37,9	167
22	.86	3	44	35	115	873	34,4	151
22	.86	4	56	38,5	126	658	59,5	174
22	.86	5	70	41	134	733	44	194
22	.86	6	85	43	141	767	46	203
24	.94	4	56	39	128	788	47,3	208
24	.94	5	70	41,5	136	818	49,1	216
24	.94	6	85	45	148	902	51,1	238
24	.94	7	100	47	154	967	58	255

Products specifications

Attribute name	Attribute value
Body Angle	High Body Angle (43 °)
Water Input	2.5"
Circle	Full & Part
Minimum Required Pressure	44 psi (3 bar)
Maximum Working Pressure	100 psi (7bar)
Minimum Required Water Flow	250 l/min
Maximum Water Flow	1000 l/min
Minimum Shooting Range	26 - 30 m
Maximum Shooting Range	41 - 50 m
Box Dimension	20x20x89 cm
Nozzles	12, 14, 16, 18, 20, 22, 24 mm
Weight	9 kg
