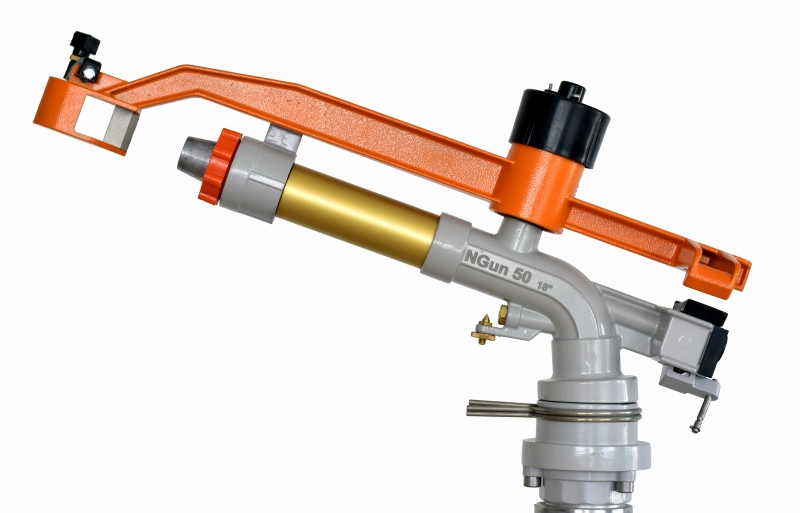

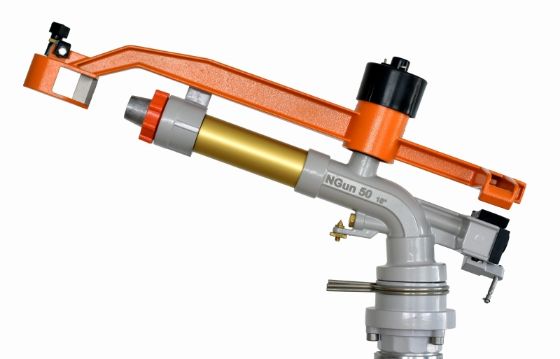

DuCaR NGun 50 - Pivot End Gun

Be the first to review this product

An impact sprinkler used as End gun in pivot irrigation.

Water Input

2" Female BSP

Working Pressure

25 - 65 psi

Water Flow

170 - 750 l/min

Shooting Radius

20 - 36 m

Nozzles

14, 16, 18, 20, 22, 24 mm

Body Angle

18°

Weight

2.5 kg

Operation

Full & Part Circle

Material

Cast-Iron, Aluminium, Brass

Made in

Turkey

£340.00

Manufacturer: DuCaR Sprinklers

SKU: AtomNGun50

Availability:

In stock

Shipping

Delivery date 3-5 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2" Wheeled Cart with Extendable Legs [+£194.00]
DuCaR 2" Wheeled Cart with Hose Reel [+£398.00]
DuCaR Quick Coupling 4-legged Stand 2" Inlet [+£180.00]

Qty:

+ -

DuCar Atom NGun 50

We guarantee 100% satisfaction!

It is designed to be used as END GUN on pivot systems. Highly durable, long range, low body angle impact sprinkler head.

Because of our special design and experiences against swing arm models, it’s a highly efficient end gun for pivot systems.

Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	1,75	25	20,00	66	170	10,2	45	1256	0,31	8,1
14	0.55	2	29	21,50	71	195	11,7	52	1451	0,36	8,1
14	0.55	3	44	25,00	82	239	14,3	63	1963	0,48	7,3
14	0.55	4	56	26,00	85	277	16,6	73	2123	0,52	7,8
16	0.63	1,75	25	23,00	75	226	13,6	60	1661	0,41	8,2
16	0.63	2	29	23,50	77	247	14,8	65	1734	0,43	8,5
16	0.63	3	44	26,00	85	303	18,2	80	2123	0,52	8,6
16	0.63	4	56	27,5	90	351	21,1	93	2375	0,59	8,9
18	0.71	2,5	37	26,00	85	345	20,7	91	2123	0,52	9,8
18	0.71	3	44	27,50	90	378	22,7	100	2375	0,59	9,6
18	0.71	4	56	29,50	97	436	26,2	115	2733	0,67	9,6
18	0.71	4	56	29,50	97	436	26,2	115	2733	0,67	9,6
20	0.79	2,5	37	27,00	89	390	23,5	103	2289	0,57	10,3
20	0.79	3	44	29,50	97	460	27,6	122	2733	0,67	10,1
20	0.79	4	56	33,00	108	532	31,9	141	3419	0,84	9,3
22	0.86	3	44	31,00	102	583	35	154	3018	0,75	11,6
22	0.86	4	56	32,50	107	610	36,6	161	3317	0,82	11,0
22	0.86	5	65	34,00	112	650	39	172	3630	0,90	10,7
24	0.95	3	44	32,50	107	667	40	176	3317	0,82	12,1
24	0.95	3,5	50	33,50	110	705	42,3	186	3524	0,87	12,0
24	0.95	4	56	36,00	118	750	45	198	4069	1,01	11,1

DuCar Atom NGun 50

We guarantee 100% satisfaction!

It is designed to be used as END GUN on pivot systems. Highly durable, long range, low body angle impact sprinkler head.

Because of our special design and experiences against swing arm models, it’s a highly efficient end gun for pivot systems.

Thanks to its 18° body angle, it is fully compatible with portable or fixed systems in windy areas and where you need to irrigate at low altitudes.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
14	0.55	1,75	25	20,00	66	170	10,2	45	1256	0,31	8,1
14	0.55	2	29	21,50	71	195	11,7	52	1451	0,36	8,1
14	0.55	3	44	25,00	82	239	14,3	63	1963	0,48	7,3
14	0.55	4	56	26,00	85	277	16,6	73	2123	0,52	7,8
16	0.63	1,75	25	23,00	75	226	13,6	60	1661	0,41	8,2
16	0.63	2	29	23,50	77	247	14,8	65	1734	0,43	8,5
16	0.63	3	44	26,00	85	303	18,2	80	2123	0,52	8,6
16	0.63	4	56	27,5	90	351	21,1	93	2375	0,59	8,9
18	0.71	2,5	37	26,00	85	345	20,7	91	2123	0,52	9,8
18	0.71	3	44	27,50	90	378	22,7	100	2375	0,59	9,6
18	0.71	4	56	29,50	97	436	26,2	115	2733	0,67	9,6
18	0.71	4	56	29,50	97	436	26,2	115	2733	0,67	9,6
20	0.79	2,5	37	27,00	89	390	23,5	103	2289	0,57	10,3
20	0.79	3	44	29,50	97	460	27,6	122	2733	0,67	10,1
20	0.79	4	56	33,00	108	532	31,9	141	3419	0,84	9,3
22	0.86	3	44	31,00	102	583	35	154	3018	0,75	11,6
22	0.86	4	56	32,50	107	610	36,6	161	3317	0,82	11,0
22	0.86	5	65	34,00	112	650	39	172	3630	0,90	10,7
24	0.95	3	44	32,50	107	667	40	176	3317	0,82	12,1
24	0.95	3,5	50	33,50	110	705	42,3	186	3524	0,87	12,0
24	0.95	4	56	36,00	118	750	45	198	4069	1,01	11,1

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2"
Circle	Full & Part
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	73 psi (5 bar)
Minimum Required Water Flow	185 l/min
Maximum Water Flow	550 l/min
Minimum Shooting Range	21 - 25 m
Maximum Shooting Range	30 - 40 m
Nozzles	14, 16, 18, 20, 22, 24 mm
