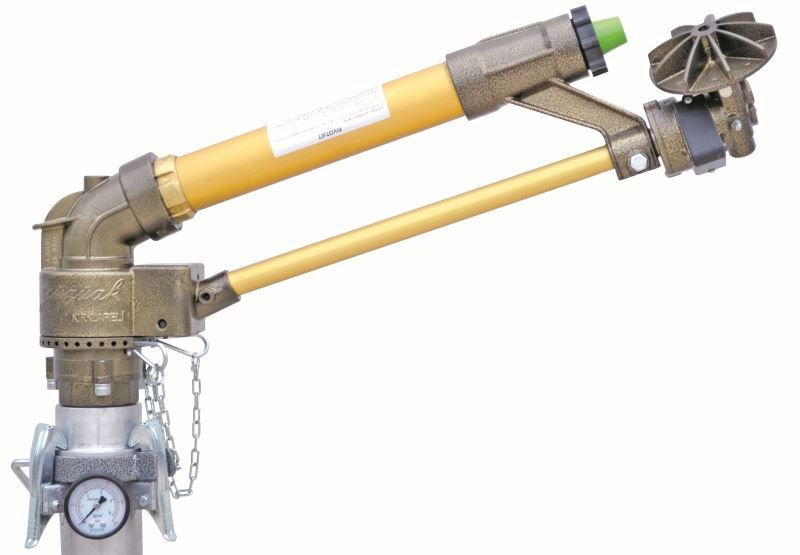

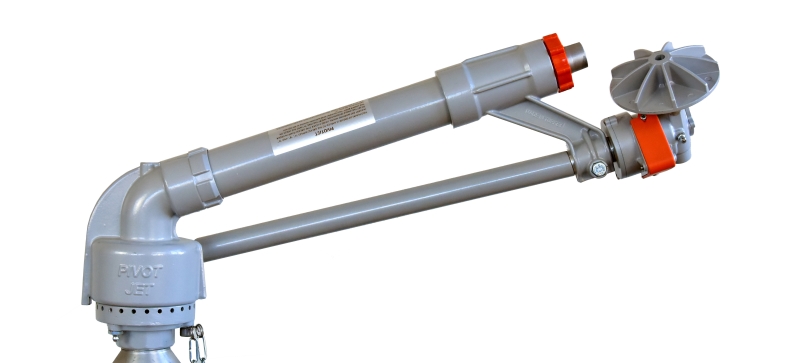

DuCaR Pivot JET

3 review(s) | Add your review

Low volume pivot end gun sprinkler on sale now!

Water Input

1.5" BSP Threaded

Working Pressure

25 - 70 psi

Water Flow

117 - 470 l/min

Shooting Radius

17 - 32 m

Free Nozzles

12, 14, 16, 18 mm

Body Angle

18°

Box Dimensions

20x20x75 cm

Weight

7 kg

Made in

Turkey

Price: £413.00

Old price: £493.00

Manufacturer: DuCaR Sprinklers

SKU: PVTJET

Availability:

In stock

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Qty:

+ -

The World's First Gear Drive End-Gun for Center Pivot systems

Gear drive, medium pressure (2 – 6 atm) and high capacity sprinkler head.

Slow reverse rotation allows it to rotate full and semi circle in the same speed.

Excellent and unique water distribution

Body angle of 18° is quite appropriate for portable or stationary systems at windy areas and at locations which requires irrigation from low level.

Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.

No clog nozzle makes it appropriate for use as END-GUN at the portable irrigation machines and Center pivots.

Pivot Jet comes with 2" BSP female threaded inlet to flange connection adapter.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	0,47	1,75	25	17	54	117	7	31	855	0,21	8,2
12	0,47	2	29	19	61	133	8	35	1075	0,27	7,4
12	0,47	2,5	37	20	66	162	9,7	43	1256	0,31	7,7
12	0,47	3	44	22	71	177	10,6	47	1451	0,36	7,3
12	0,47	4	56	24	77	203	12,2	54	1734	0,43	7,0
14	0,47	1,75	25	18	59	168	10,1	44	1017	0,25	9,9
14	0,47	2	29	20	66	192	11,5	51	1256	0,31	9,2
14	0,55	2,5	37	22	71	220	13,2	58	1451	0,36	9,1
14	0,55	3	44	24	77	233	14	62	1734	0,43	8,1
14	0,55	4	56	26	85	270	16,2	71	2123	0,52	7,6
16	0,62	2	29	23	75	242	14,5	64	1661	0,41	8,7
16	0,62	2,5	37	25	82	267	16	70	1963	0,48	8,2
16	0,62	3	44	26	85	297	17,8	78	2123	0,52	8,4
16	0,62	4	56	28	90	342	20,5	90	2375	0,59	8,6
18	0,70	2,5	37	25	82	350	21	92	1963	0,48	10,7
18	0,70	3	44	28	92	375	22,5	99	2462	0,61	9,1
18	0,70	4	56	29	95	438	26,3	116	2641	0,65	10,0
18	0,70	5	70	32	105	470	28,2	124	3215	0,79	8,8

The World's First Gear Drive End-Gun for Center Pivot systems

Gear drive, medium pressure (2 – 6 atm) and high capacity sprinkler head.

Slow reverse rotation allows it to rotate full and semi circle in the same speed.

Excellent and unique water distribution

Body angle of 18° is quite appropriate for portable or stationary systems at windy areas and at locations which requires irrigation from low level.

Equipped with new type one-hole nozzle. Thus it operates with less water and minimize nozzle clogging problem arising from foul water.

No clog nozzle makes it appropriate for use as END-GUN at the portable irrigation machines and Center pivots.

Pivot Jet comes with 2" BSP female threaded inlet to flange connection adapter.

Technical Specifications

mm	inch	kg/cm²	lbs/inch	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	0,47	1,75	25	17	54	117	7	31	855	0,21	8,2
12	0,47	2	29	19	61	133	8	35	1075	0,27	7,4
12	0,47	2,5	37	20	66	162	9,7	43	1256	0,31	7,7
12	0,47	3	44	22	71	177	10,6	47	1451	0,36	7,3
12	0,47	4	56	24	77	203	12,2	54	1734	0,43	7,0
14	0,47	1,75	25	18	59	168	10,1	44	1017	0,25	9,9
14	0,47	2	29	20	66	192	11,5	51	1256	0,31	9,2
14	0,55	2,5	37	22	71	220	13,2	58	1451	0,36	9,1
14	0,55	3	44	24	77	233	14	62	1734	0,43	8,1
14	0,55	4	56	26	85	270	16,2	71	2123	0,52	7,6
16	0,62	2	29	23	75	242	14,5	64	1661	0,41	8,7
16	0,62	2,5	37	25	82	267	16	70	1963	0,48	8,2
16	0,62	3	44	26	85	297	17,8	78	2123	0,52	8,4
16	0,62	4	56	28	90	342	20,5	90	2375	0,59	8,6
18	0,70	2,5	37	25	82	350	21	92	1963	0,48	10,7
18	0,70	3	44	28	92	375	22,5	99	2462	0,61	9,1
18	0,70	4	56	29	95	438	26,3	116	2641	0,65	10,0
18	0,70	5	70	32	105	470	28,2	124	3215	0,79	8,8

Products specifications

Attribute name	Attribute value
Body Angle	Low Body Angle (18 °)
Water Input	1.5"
Circle	Full & Part
Minimum Required Pressure	21 psi (1.5 bar)
Maximum Working Pressure	73 psi (5 bar)
Minimum Required Water Flow	150 l/min
Maximum Water Flow	850 l/min
Minimum Shooting Range	16 - 20 m
Maximum Shooting Range	30 - 40 m
Box Dimension	20x20x75 cm
Nozzles	12, 14, 16, 18, 20, 22, 24 mm
Weight	7.3 kg
