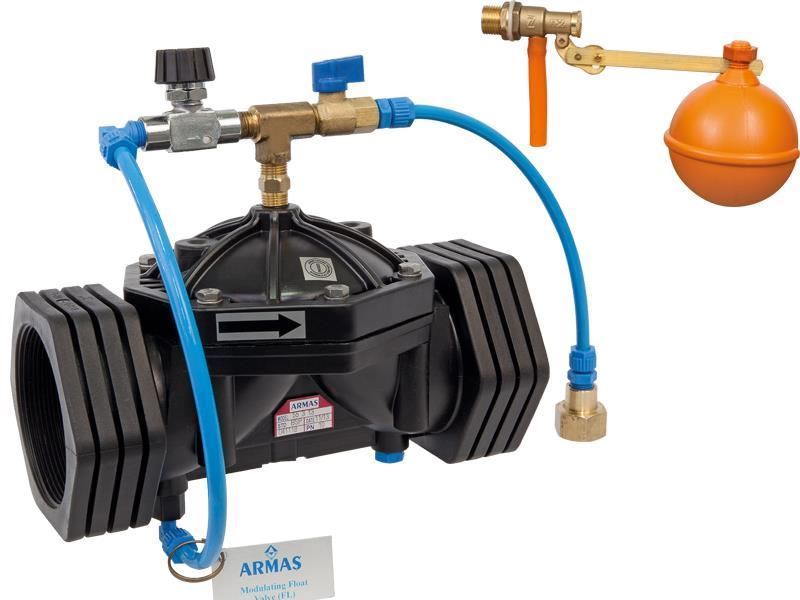

Float Level Plastic Control Valve

SKU: 500-Series-FL
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

It controls water level in reservoirs and tanks. Main valve is controlled by 2-way modulating type float pilot valve or manually.

Easy to use
Low cost
Operation in wide pressure range (PN10)
Perfect modulation even in lower flow rates
Anti-surge closing and opening with flexible diaphragm
Glass Reinforced Poly-amide material
£124.00
*

Armas Float Level Plastic Control Valve

Applications

  • Irrigation
  • Industrial
  • for when the water level reduce to minimum level, main valve opens fully itself and provides the water level at maximum

FEATURES

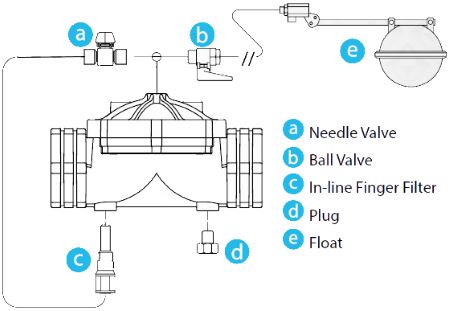

  • Plastic float, needle valve, ball valve, polytethylene plastic tubing system and nylon fittings
  • Made in Turkey



Armas float level plastic control valve

ARMAS 500 Series Float Level Plastic Control Valve

Armas float level control valve is the hydraulic control valve designed to control water level in reservoirs and tanks continuously. Main valve is controlled by 2-way modulating type float pilot valve or manually. Main valve mounted on upstream of a reservoir or tank is closed as fully sealed without causing surge when water level reaches to maximum level. Valve opening/closing speed may be adjusted. It can be used in the system by mounting in horizontal or vertical orientations.

Armas Float Level Plastic Control Valve

Applications

  • Irrigation
  • Industrial
  • for when the water level reduce to minimum level, main valve opens fully itself and provides the water level at maximum

FEATURES

  • Plastic float, needle valve, ball valve, polytethylene plastic tubing system and nylon fittings
  • Made in Turkey



Armas float level plastic control valve

ARMAS 500 Series Float Level Plastic Control Valve

Armas float level control valve is the hydraulic control valve designed to control water level in reservoirs and tanks continuously. Main valve is controlled by 2-way modulating type float pilot valve or manually. Main valve mounted on upstream of a reservoir or tank is closed as fully sealed without causing surge when water level reaches to maximum level. Valve opening/closing speed may be adjusted. It can be used in the system by mounting in horizontal or vertical orientations.
