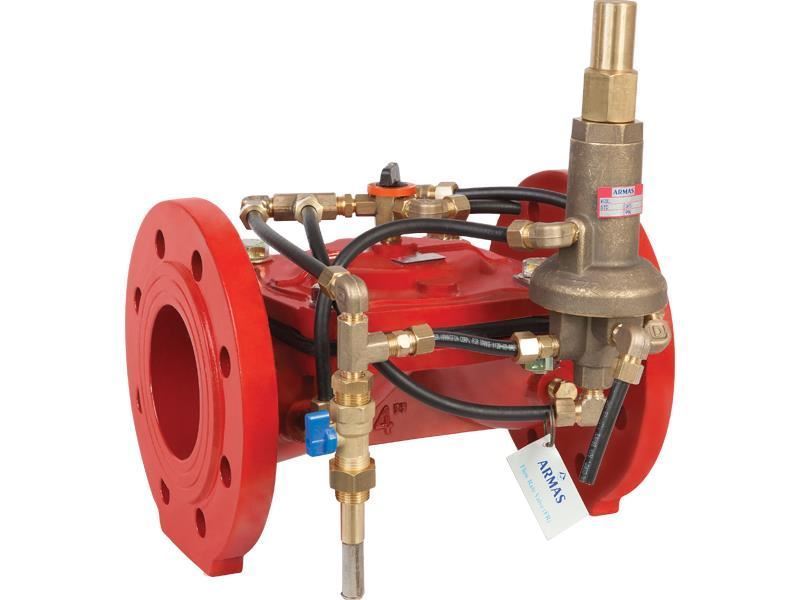

Flow Rate Control Valve

SKU: 600-Series-FR
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Flow Rate Control Valves limit desired flow rate automatically and keeps it fixed.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
£157.00
*
  • Threaded
    Threaded
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*
*
*

Armas 600 Series - Flow Rate Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Flow rate control valve 600 series parts

ARMAS 600 Series Flow Rate Control Valve

Armas Flow Rate Control Valve is designed to limit desired flow rate. The orifice on main valve upstream creates pressure difference and 3/way differential pressure set pilot mounted in control chamber of valve senses this pressure difference and ensures that main valve opens in desired flow rate. Valve thereby limits desired flow rate automatically and keeps it fixed. It eliminates over flow by preventing excessive flow during reverse washing in filtration systems.

COMPONENTS:

  1. 3- Way Selector Valve
  2. Ball Valve
  3. In-line Finger Filter
  4. Plug
  5. Flow Rate Control Pilot Valve
  6. Orifice Plate

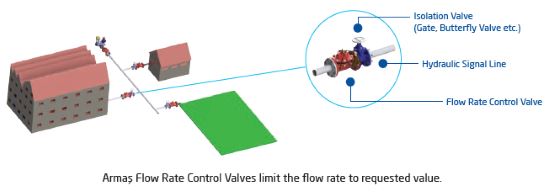

ARMAS 600 Series Flow Rate Control Valve Sample Application

Flow rate control valve 600 series sample

Armas 600 Series - Flow Rate Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Flow rate control valve 600 series parts

ARMAS 600 Series Flow Rate Control Valve

Armas Flow Rate Control Valve is designed to limit desired flow rate. The orifice on main valve upstream creates pressure difference and 3/way differential pressure set pilot mounted in control chamber of valve senses this pressure difference and ensures that main valve opens in desired flow rate. Valve thereby limits desired flow rate automatically and keeps it fixed. It eliminates over flow by preventing excessive flow during reverse washing in filtration systems.

COMPONENTS:

  1. 3- Way Selector Valve
  2. Ball Valve
  3. In-line Finger Filter
  4. Plug
  5. Flow Rate Control Pilot Valve
  6. Orifice Plate

ARMAS 600 Series Flow Rate Control Valve Sample Application

Flow rate control valve 600 series sample
