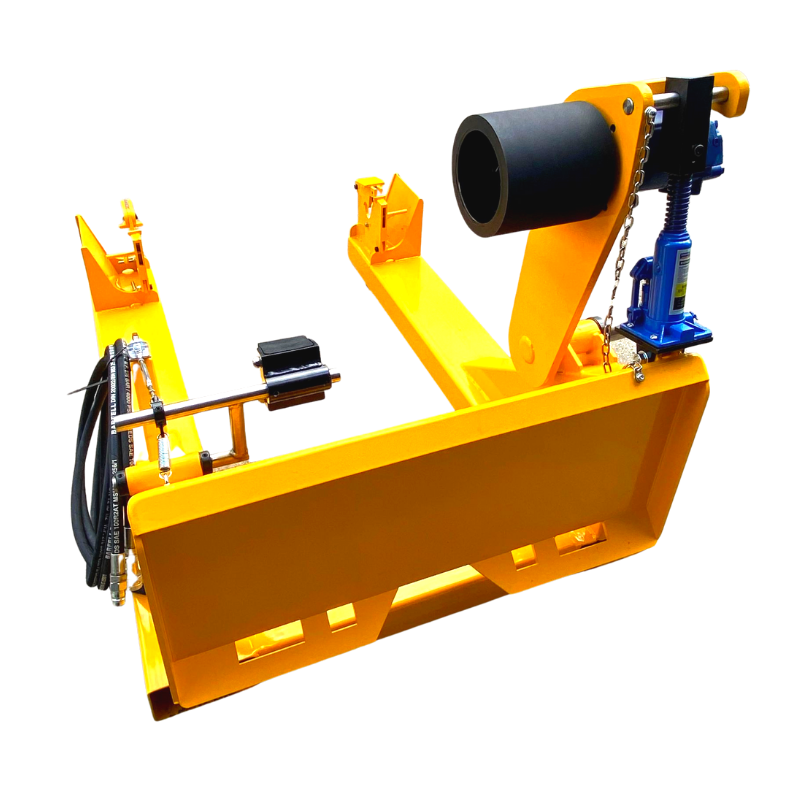

Hamersley Reel Drive Unit Model v2 1800 Series Layflat Hose Reel

Hamersley Reel System

The Hamersley Reel System is a popular choice for rapid dewatering in mines handling layflat hose. It is the simplest, fastest and most compact system
available for delivering laylfat hose in the field. The interchangeable spools makes it quick and easy to handle multiple lengths of layflat hose.
Storage and transport is simple.

Proudly manufactured in Australia.

Features:

• Hard wearing natural rubber compound drive wheel
• Protective mesh surrounding pinch points
• Heavy duty frame, certified to carry up to 200m of 12” ID hose
• Superior powder coating with Zincshield, giving an excellent corrosion resistance
• Hydraulic safety latches
• Hydraulic cylinder, engaging drive wheel, with heavy duty spring to protect sudden impact
• Sequential hydraulic valves to prevent unwanted detachment of reels during operation
• High torque geared hydraulic motor
• Cross port reliefs to prevent over pressurisation
• Quick connect hydraulic couplings providing quick machine attachment

Ideal for:

• Emergency dewatering
• Low manpower requirements
• Minimising OH&S issues
• Desired low environmental impact

Rapid Dewatering Equipment

• Complements the Waterlord® hose system
• Suitable for emergency dewatering & industrial applications
• Connect multiple lengths of hose efficiently
• Hamersley unit drive
• Reels available for 4”, 6”, 8” & 10”, 12” hose diameters; up to 200m
• Safe and reliable

Two Reel sizes available:

•  4”, 6”, 8” hose
• 10” & 12” hose

Max. Length (m)
4” @ 400m
5” @ 250m
6” @ 250m
8” @ 200m
10” @ 200m
12” @ 200m

Dimensions (cm) 60 x 245 x 245 cm

Rating (tonnes) 1.5t

** AVAILABILITY: Approximately 4 weeks from the date of order
