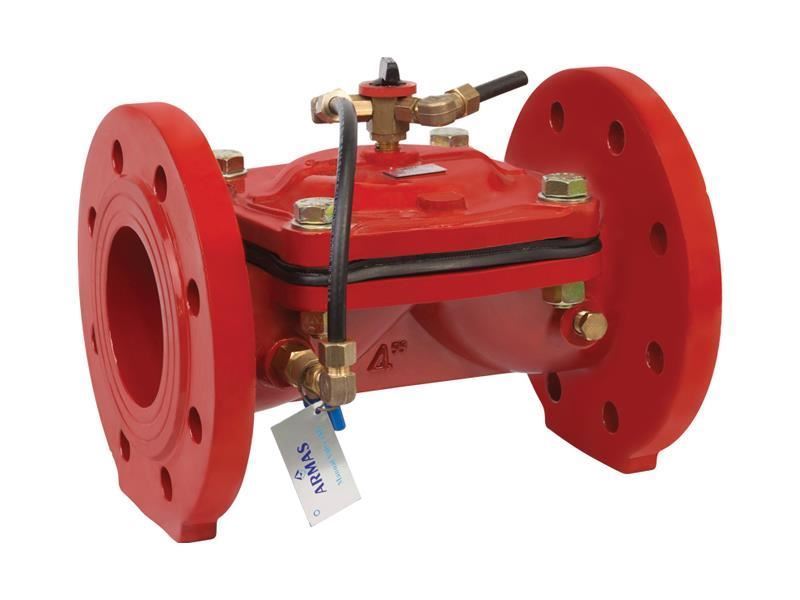

Manual Hydraulic Control Valve

SKU: 600-Series-M
Delivery date: 3-10 business days
Manufacturer: Armas Valves & Filters

Manual hydraulic control valve operated by line pressure and designed to ensure opening/closing process by means of a 3-way selector valve.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
£84.00
*
  • Threaded
    Threaded
  • Grooved End
    Grooved End
  • Flanged
    Flanged
*
*
*
*
*
*

Armas 600 Series Manual - Hydraulic Control Valve

Applications

  • Irrigation
  • Industrial
  • Local operation of hydraulic valve by a manual command.

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Armas 600 series Manual hydraulic control valve

ARMAS 600 Series Manual Control Valve

Armas manual hydraulic control valve is operated by line pressure and designed to ensure opening/closing process by means of 3-way selector valve. Minimum opening pressure of valve is 0.7 bar. Thanks to its flexible diaphragm, it makes easy and fast control process in high pressure applications and is closed as full tightness without causing surge. It can be used in different applications by adding different pilot valves on its main body.

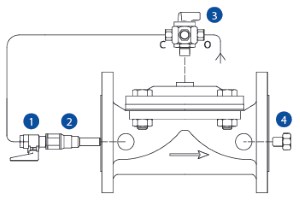

COMPONENTS:

  1. Ball Valve
  2. In-line Finger Filter
  3. 3-Way Selector Valve
  4. Plug

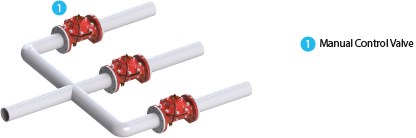

ARMAS 600 Series Manual Control Valve Sample Application

Armas 600 series Manual hydraulic control valve sample

Armas 600 Series Manual - Hydraulic Control Valve

Applications

  • Irrigation
  • Industrial
  • Local operation of hydraulic valve by a manual command.

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey



Armas 600 series Manual hydraulic control valve

ARMAS 600 Series Manual Control Valve

Armas manual hydraulic control valve is operated by line pressure and designed to ensure opening/closing process by means of 3-way selector valve. Minimum opening pressure of valve is 0.7 bar. Thanks to its flexible diaphragm, it makes easy and fast control process in high pressure applications and is closed as full tightness without causing surge. It can be used in different applications by adding different pilot valves on its main body.

COMPONENTS:

  1. Ball Valve
  2. In-line Finger Filter
  3. 3-Way Selector Valve
  4. Plug

ARMAS 600 Series Manual Control Valve Sample Application

Armas 600 series Manual hydraulic control valve sample
