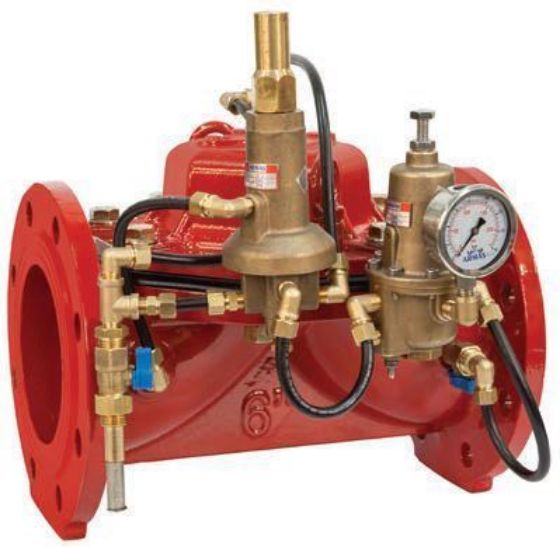

Pressure Reducing and Flow Rate Control Valve

Pressure Reducing and Flow Rate Control Valve is a combined hydraulic control valves which controls pressure and flow rate parameters.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
£465.00
Manufacturer: Armas Valves & Filters
SKU: 600-Series-FRPR
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
+ -

Armas 600 Series - Pressure Reducing and Flow Rate Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Valve size same as main line or one size smaller.
  • Maximum flow speed for continuous operation 5.5 m/sec (18 ft/sec).
  • Made in Turkey

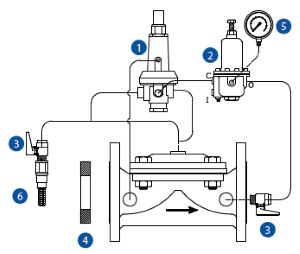

Pressure Reducing and Flow Rate Control Valve 600 series parts

ARMAS 600 Series Pressure Reducing and Flow Rate Control Valve

Armas Pressure Reducing and Flow Rate Control Valves, independently provides two functions. Flow control being provided with 3 way differential pilot valve on the main valve which works line pressure without any energy, pressure reducing pilot valve control the downstream pressure of main valve. Flow rate control and pressure reducing valves decrease the valve number on lines used flow and pressure control to economize.

COMPONENTS:

  1. Flow Rate Control Pilot
  2. Pressure Reducing Pilot
  3. Ball Valves
  4. Orifice
  5. Pressure Gauge
  6. In-line Finger Filter

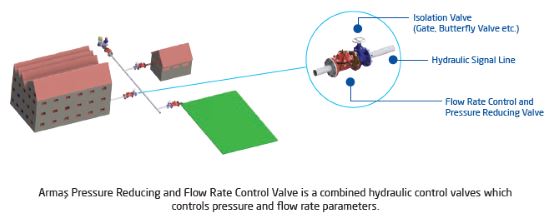

ARMAS 600 Series Pressure Reducing and Flow Rate Control Valve Sample Application

Pressure Reducing and Flow Rate Control Valve 600 series sample
