Pressure Reducing and Sustaining Control Valve

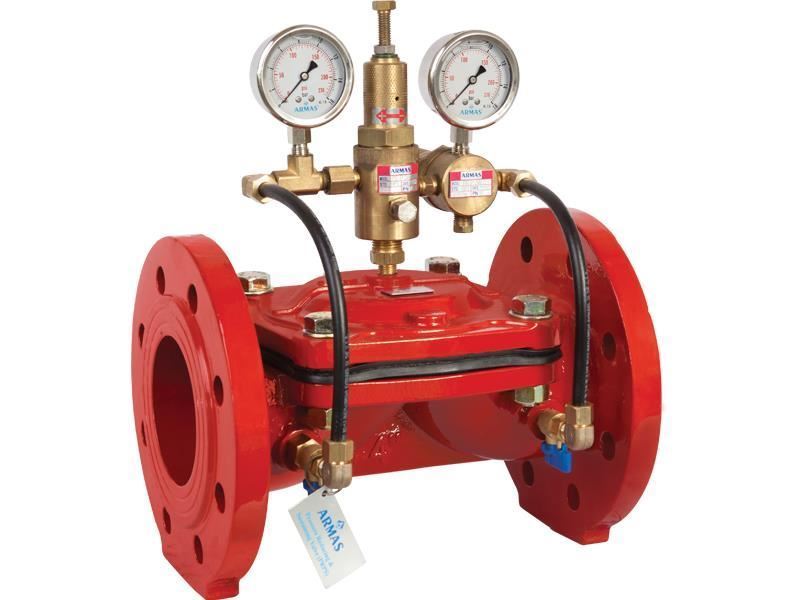

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve

Armas Pressure Reducing and Sustaining Control Valve reduces valve downstream pressure to desired value by sustaining upstream pressure. Two pilot valves exist on valve. Pilot valve on upstream side is the pressure sustaining pilot valve and sustains upstream pressure. Other pilot valve is pressure reducing pilot valve and keeps downstream pressure constant by reducing it to desired value. It controls upstream and downstream pressure continuously and keeps them within constant values.

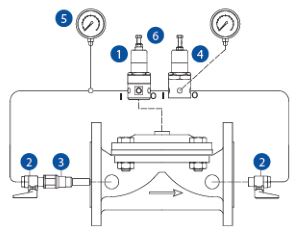

COMPONENTS:

1. Pressure Sustaining Pilot Valve
2. Ball Valves
3. In-line Finger Filter
4. Pressure Reducing Pilot Valve
5. Pressure Gauges
6. Adjustment Bolt

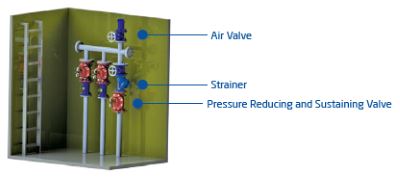

ARMAS 600 Series Pressure Reducing and Sustaining Control Valve Sample Application
