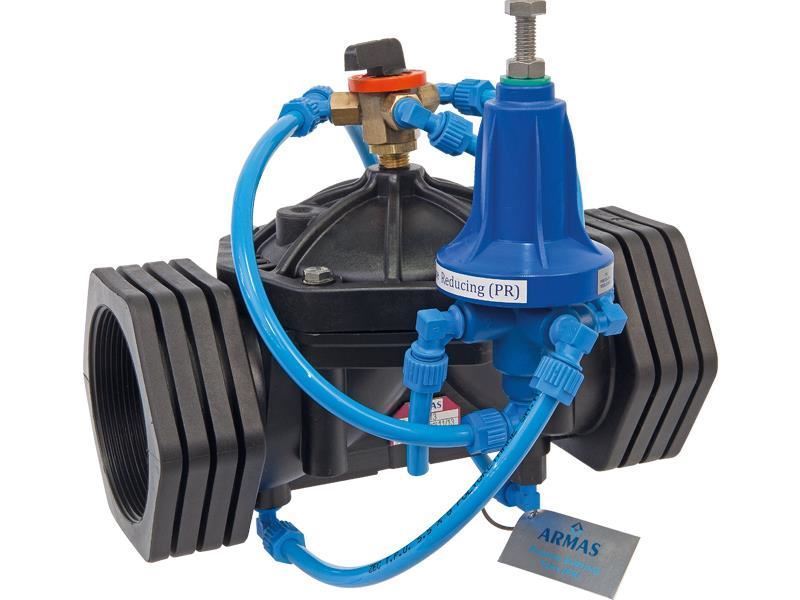

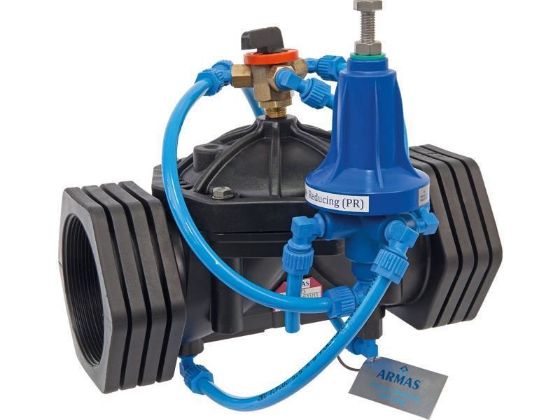

Pressure Reducing Plastic Control Valve

Pressure reducer control valve continuously controls downstream pressure value and maintains it without being affected by flow rate and upstream pressure values.

Easy to use
Low cost
Operation in wide pressure range (PN10)
Perfect modulation even in lower flow rates
Anti-surge closing and opening with flexible diaphragm
Glass Reinforced Poly-amide material
Made in Turkey
£77.00
Manufacturer: Armas Valves & Filters
SKU: 500-Series-PR
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Armas Pressure Reducing Plastic Control Valve

Applications

  • Irrigation
  • Industrial
  • Water distribution and filtration systems

FEATURES

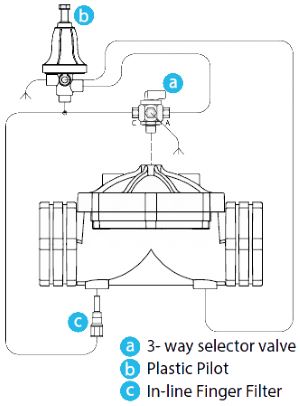

  • 3-way plastic pressure reducing pilot, polytethylene plastic tubing system and nylon fittings
  • Optional 3-way selector valve
  • Standard pressure adjustment: 2.5 bar.
  • Made in Turkey



Armas pressure reducing control valve

ARMAS 500 Series Pressure Reducing Plastic Control Valve

Armas “Pressure Reducing Control Valve” model is the hydraulic control valve which reduces high upstream pressure value to desired lower pressure value by means of built-in pressure reducing pilot valves.

It is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to very low and stable preset downstream pressure regardless of fluctuating demand, or varying upstream pressure. It has a special pilot specifically for extreme accuracy and stability when working with low pressure tape products. When no flow exists in the system, it closes itself automatically. When valve upstream pressure value, it is fully opened by itself. Valve can be used in vertical or horizontal positions in the system.

Armas Pressure Reducing Plastic Control Valve

Applications

  • Irrigation
  • Industrial
  • Water distribution and filtration systems

FEATURES

  • 3-way plastic pressure reducing pilot, polytethylene plastic tubing system and nylon fittings
  • Optional 3-way selector valve
  • Standard pressure adjustment: 2.5 bar.
  • Made in Turkey



Armas pressure reducing control valve

ARMAS 500 Series Pressure Reducing Plastic Control Valve

Armas “Pressure Reducing Control Valve” model is the hydraulic control valve which reduces high upstream pressure value to desired lower pressure value by means of built-in pressure reducing pilot valves.

It is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to very low and stable preset downstream pressure regardless of fluctuating demand, or varying upstream pressure. It has a special pilot specifically for extreme accuracy and stability when working with low pressure tape products. When no flow exists in the system, it closes itself automatically. When valve upstream pressure value, it is fully opened by itself. Valve can be used in vertical or horizontal positions in the system.
