Remote Control Valves are activated by a remote pressure signal.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
£155.00
Manufacturer: Armas Valves & Filters
SKU: 600-Series-RC
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
+ -

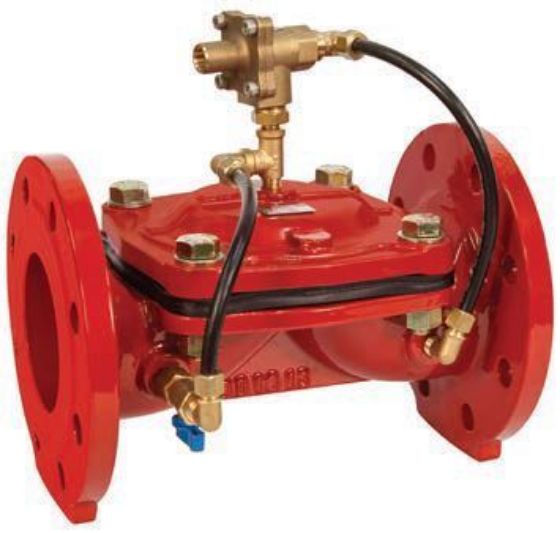

Armas 600 Series - Remote Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Deep-well Pump control valve is mounted on network in TE configuration since it is a electric activated release valve.
  • Since valve’s function is to release, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter.
  • Made in Turkey

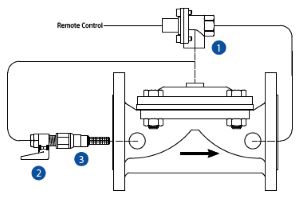

Remote Control Valve 600 series parts

ARMAS 600 Series Remote Control Valve

Armas Excessive Flow Shut-off Control Valve is activated by the line pressure. The valve is a hydraulic control valve closes drip tight when flow rate exceeds the set value. The valve is fully open when flow rate is below the set rate. A differantial 3 way pilot valve and orifis are on valve which immediately closes drip tihgt itself when flow rate exceeds the set value. This feature allows prevent waste water such as burst pipe damage. The valve is open manual after auto closing. It is set auto after the fully opening will be provided.

COMPONENTS:

  1. Flow Rate Control Pilot
  2. Ball Valve
  3. 3- Way Selector Valve
  4. Limit Switch Assemble
  5. Orifice
  6. In-line Finger Filter

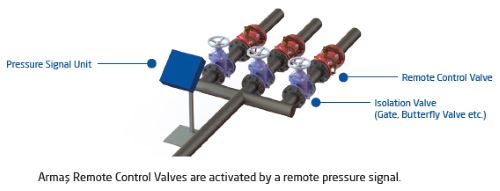

ARMAS 600 Series Remote Control Valve Sample Application

Remote Control Valve 600 series sample

Armas 600 Series - Remote Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Deep-well Pump control valve is mounted on network in TE configuration since it is a electric activated release valve.
  • Since valve’s function is to release, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter.
  • Made in Turkey



Remote Control Valve 600 series parts

ARMAS 600 Series Remote Control Valve

Armas Excessive Flow Shut-off Control Valve is activated by the line pressure. The valve is a hydraulic control valve closes drip tight when flow rate exceeds the set value. The valve is fully open when flow rate is below the set rate. A differantial 3 way pilot valve and orifis are on valve which immediately closes drip tihgt itself when flow rate exceeds the set value. This feature allows prevent waste water such as burst pipe damage. The valve is open manual after auto closing. It is set auto after the fully opening will be provided.

COMPONENTS:

  1. Flow Rate Control Pilot
  2. Ball Valve
  3. 3- Way Selector Valve
  4. Limit Switch Assemble
  5. Orifice
  6. In-line Finger Filter

ARMAS 600 Series Remote Control Valve Sample Application

Remote Control Valve 600 series sample
