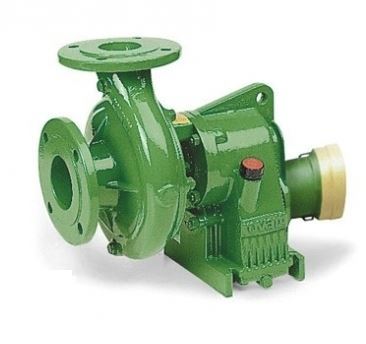

Rovatti Single Stage T Series PTO Pumps

Best price gurantee on wide range of world's leading pump brand Rovatti

Capacity
:
30-90 m³/h
Head
:
40-127 m
Working Temperature
:
-10 º C - + 140 º C
Minimum Tractor Power
:
25-75 HP
PTO RPM X Gear Ratio
:
550x7 - 501x6.38
Inlet Range
:
65 - 80 mm
Outlet Range
:
40 - 65 mm
1.666,00 €
Manufacturer: Rovatti Pompe
SKU: Rovatti-T-PTO
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Rovatti single-stage centrifugal pumps with overgear driven by cardan shaft of PTO. Axial inlet and scroll outlet.

Rovatti T series of horizontal centrifugal CELAN WATER pumps are fitted with an over gear transmission box to be driven from a tractor or similar with a PTO outlet via the use of a cardan shaft. Also available with a 3 point linkage or on a 2 wheeled trolley. These pumps are highly suited for irrigation and washdown systems. A large range of single and multistage pumps to choose from with flows up to 90 m3/h and heads up to 127 m.

Features
■ Robust cast iron construction
■ Equipped with tested overgear water circulation cooling device
■ Available both with mechanical seal or packed gland
■ Application flexibility
■ Available with trolleys and threepoint linkage



 Download Rovatti T Series PTO Pump Technical Spacifications



Rovatti T Series Technical Specifications

Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
Gear Box
Size
m³/h 12 15 18 21 24 27 30 36 42 48 54 60 75
l/min 200 250 300 350 400 450 500 600 700 800 900 1000 1250
l/s 3.3 4.1 5 5.8 6.6 7.5 8.3 10 11.6 13.3 15 16.6 20.8

T1-40E

25 550 x 7 65 X 40 1 Head (m) 105.5 105 104 103.5 102 101 98.5

T1-50E

35 545 x 7 65 X 50 1 Head (m)   91 91 91 90.3 89.3 88 86 84

T2-65E

45 545 x 6.43 65 X 50 2 Head (m)   111.8 111 110.4 107.8 103 95



Pump Model Min. Tractor
Power (HP)
PTO min-1
X Gear ratio
Inlet X Outlet
(mm)
Gear Box
Size
m³/h 36 42 48 54 60 75 90 105 120
l/min 600 700 800 900 1000 1250 1500 1750 2000
l/s 10 11.6 13.3 15 16.6 20.8 25 29.1 33.3

T1-80E

35 545 x 6.43 80 X 65 1 Head (m) 68.7 68.2 68 67.5 67 65 61

T2-85E

55 545 x 6.43 80 X 65 2 Head (m) 84.2 84.3 84.2 84.2 84 83 81 77.5 72

T3-80AE

75 545 x 7 80 X 65 3 Head (m) 118.9 119 119 118.9 118.5 117.5 110



Rovatti T-TK Series PTO performance table
