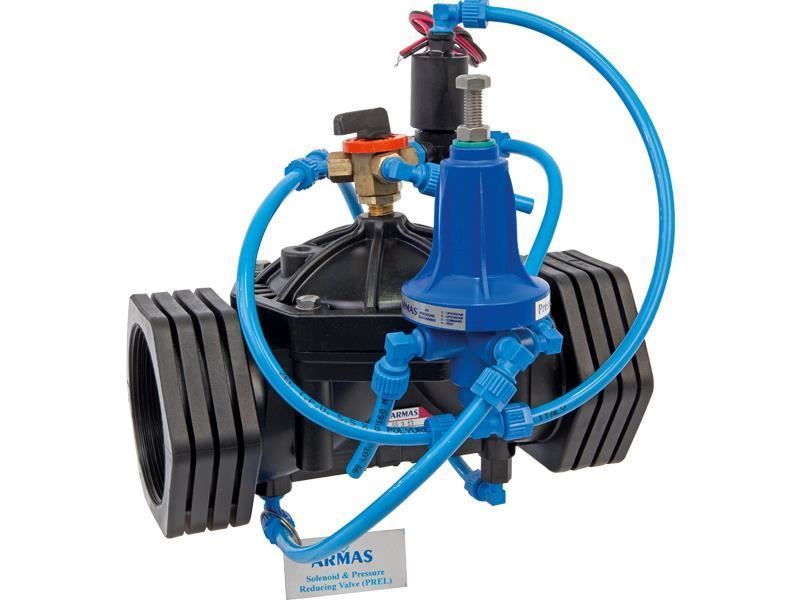

Solenoid Controlled Pressure Reducing Plastic Valve

Be the first to review this product

BACCARA G75 Solenoid valve controlled pressure reducer control valve continuously controls downstream pressure value and maintains it without being affected by flow rate and upstream pressure values.

Easy to use

Low cost

Operation in wide pressure range (PN10)

Perfect modulation even in lower flow rates

Anti-surge closing and opening with flexible diaphragm

Glass Reinforced Poly-amide material

Made in Turkey

£125.00

Manufacturer: Armas Valves & Filters

SKU: 500-Series-PREL/B

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Valve Size: *

Valve Option:

3-way selector valve [+£30.00]

Qty:

+ -

Armas Solenoid Controlled Pressure Reducing Plastic Valve

Applications

Irrigation
Industrial
Water distribution, where downstream pressure should be reduced the valve is
the commanded to open

FEATURES

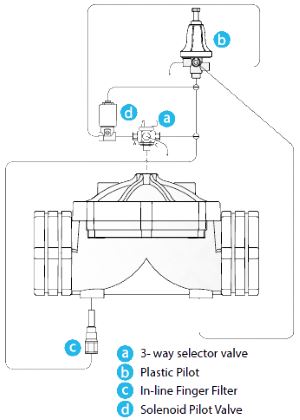

3-way plastic pressure reducing pilot, Baccara G75 solenoid valve 24V AC N.O., polytethylene plastic tubing system and nylon fittings
3-way selector valve
Standard pressure adjustment: 2.5 bar
Made in Turkey

Download Baccara G75 1/8" Solenoid Valves Technical Specifications

Armas solenoid pressure reducing control valve

ARMAS 500 Series Baccara Solenoid Controlled Pressure Reducing Plastic Valve

Armas “Solenoid Controlled Pressure Reducing” model pressure reducing valve is the hydraulic control valve which reduces high upstream pressure value into desired lower pressure value. Control of main valve is achieved by means of built-in solenoid pilot valves. Electric signal for solenoid pilot valves is ensured by means of a control device, time relay, main switch and PLC control units etc. Automated control can be easily ensured by this way in application systems.

Armas Solenoid Controlled Pressure Reducing Plastic Valve

Applications

Irrigation
Industrial
Water distribution, where downstream pressure should be reduced the valve is
the commanded to open

FEATURES

3-way plastic pressure reducing pilot, Baccara G75 solenoid valve 24V AC N.O., polytethylene plastic tubing system and nylon fittings
3-way selector valve
Standard pressure adjustment: 2.5 bar
Made in Turkey

Download Baccara G75 1/8" Solenoid Valves Technical Specifications

ARMAS 500 Series Baccara Solenoid Controlled Pressure Reducing Plastic Valve
