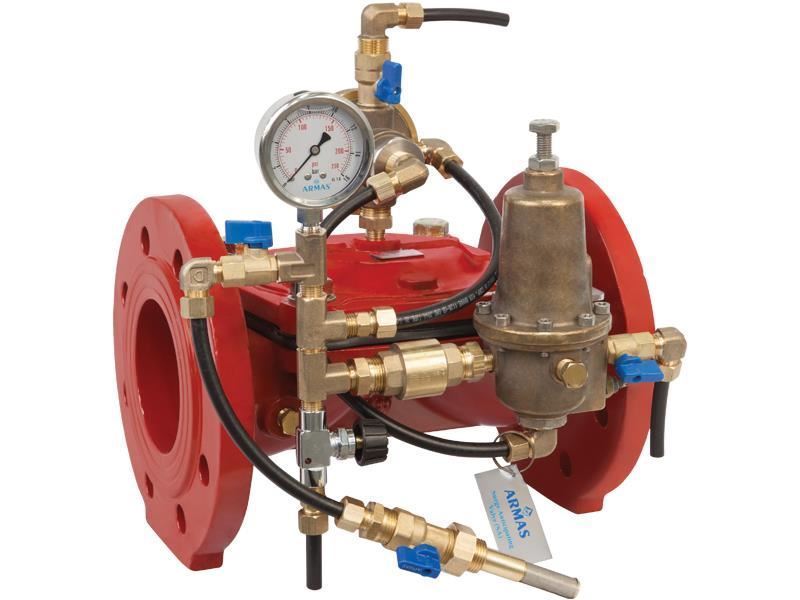

Surge Anticipating Control Valve

Surge Anticipating Valves protect pipe-line against to impacts due to water hammer and unexpected pump shut-off.

Connection
:
Flanged - Threaded - Grooved End
Material
:
GG25 - GGG40
Coating
:
Epoxy
Temperature
:
-10 to 80 °C
Max Operating Pressure
:
10 - 16 - 25 bar
Made in
:
Turkey
£515.00
Manufacturer: Armas Valves & Filters
SKU: 600-Series-SA
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
  • Grooved End
    Grooved End
    Not available
  • Flanged
    Flanged
    Not available
*
*
*
*
+ -

Armas 600 Series - Surge Anticipating Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Surge Anticipating valve is mounted on network in TE configuration.
  • Since valve’s function is to release pressure, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter.
  • Valve closing time is proportional with pipe length. As system pipe length increases, valve closing time should be increased.
  • Made in Turkey

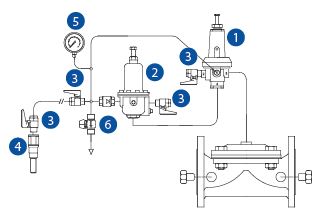

Surge Anticipating Control Valve Valve 600 series parts

ARMAS 600 Series Surge Anticipating Control Valve

Armas Surge Anticipating Control Valve is the safety control valve designed to protect system in relatively longer water supply network elevating line by damping energy waves formed by energy interruptions in pumping systems and by releasing water-hammers which are caused from sudden changes in water flow rate to atmosphere automatically and quickly. Valve is opened quickly by sensing diminished pressure wave previously by means of pressure signal tube it owned. When line pressure reached normal level, it is closed slowly and automatically as wholly sealed.

COMPONENTS:

  1. Low Pressure Pilot Valve
  2. High Pressure Pilot Valve
  3. Ball Valves
  4. In-line Finger Filter
  5. Pressure Gauge
  6. Needle Valve

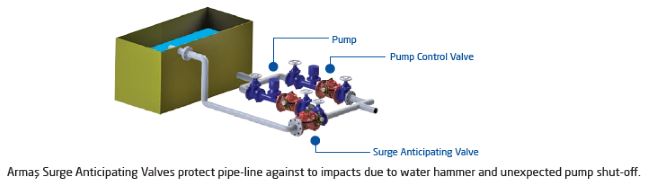

ARMAS 600 Series Surge Anticipating Control Valve Sample Application

Surge Anticipating Control Valve 600 series sample

Armas 600 Series - Surge Anticipating Control Valve

Applications

  • Irrigation
  • Industrial

FEATURES

  • The valve will be direct diaphragm closing automatic hydraulic control valve which works with line pressure. No wearable parts
    such as stem, bearing and seat exist in main valve body.
  • The valve position will be controlled by a hand operated selector valve.
  • Surge Anticipating valve is mounted on network in TE configuration.
  • Since valve’s function is to release pressure, valve diameter may be selected as equal to or in closest smaller size than main pipe diameter. Valve diameter should be selected as smaller than main pipe diameter.
  • Valve closing time is proportional with pipe length. As system pipe length increases, valve closing time should be increased.
  • Made in Turkey



Surge Anticipating Control Valve Valve 600 series parts

ARMAS 600 Series Surge Anticipating Control Valve

Armas Surge Anticipating Control Valve is the safety control valve designed to protect system in relatively longer water supply network elevating line by damping energy waves formed by energy interruptions in pumping systems and by releasing water-hammers which are caused from sudden changes in water flow rate to atmosphere automatically and quickly. Valve is opened quickly by sensing diminished pressure wave previously by means of pressure signal tube it owned. When line pressure reached normal level, it is closed slowly and automatically as wholly sealed.

COMPONENTS:

  1. Low Pressure Pilot Valve
  2. High Pressure Pilot Valve
  3. Ball Valves
  4. In-line Finger Filter
  5. Pressure Gauge
  6. Needle Valve

ARMAS 600 Series Surge Anticipating Control Valve Sample Application

Surge Anticipating Control Valve 600 series sample
