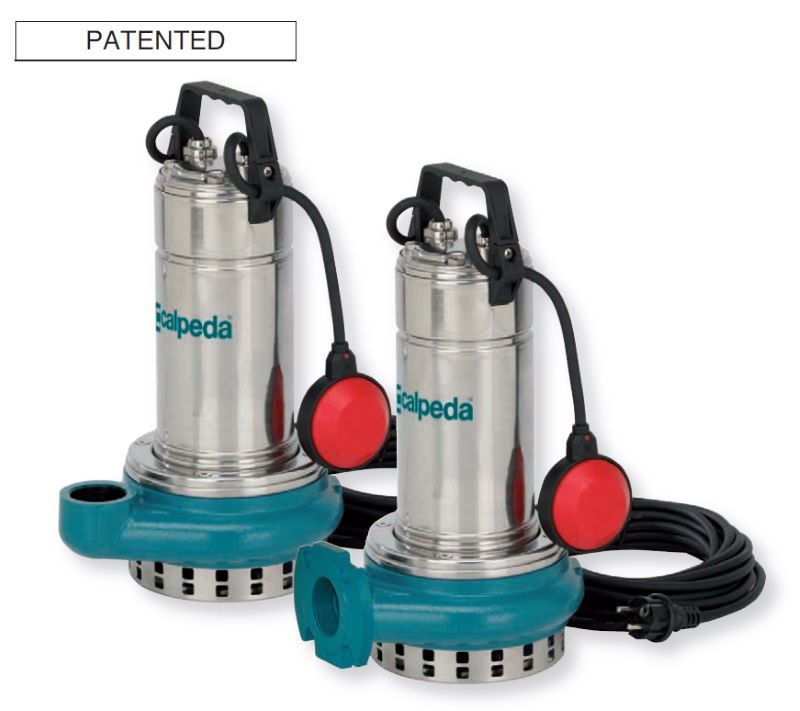

Calpeda GQRM Submersible Drainage & Sewage Pump

Premium quality patented submersible drainage pump with open impeller

Motor Range
:
0.55 KW (0.75 HP) - 1.5 KW (2 HP)
Impeller
:
Cast iron
Body
:
Chrome-nickel steel
Maximum immersion depth
:
5 m
Minimum immersion depth
:
205 mm
624,00 €
785,00 €
Manufacturer: Calpeda Pumps
Delivery date 2-3 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
*
+ -

Construction

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GQR: with vertical threaded delivery port (G 1 1/2).
  • Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
  • Made in Italy
  • GQRM: built-in thermal protector, float switch, 10m cable, incorporated capacitor

Applications

  • For clean water containing solids up to 10 mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.

Operating Conditions

  • Liquid temperature up to 35 oC
  • Maximum immerson depth: 5m
  • Minimum immerson depth: 205 mm
  • Continuous duty (with submerged motor).

Motor:

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • Single-phase 230 V, with float switch and thermal protector.
  • Incorporated capacitor.
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Triple impregnation humidity-proof dry winding.

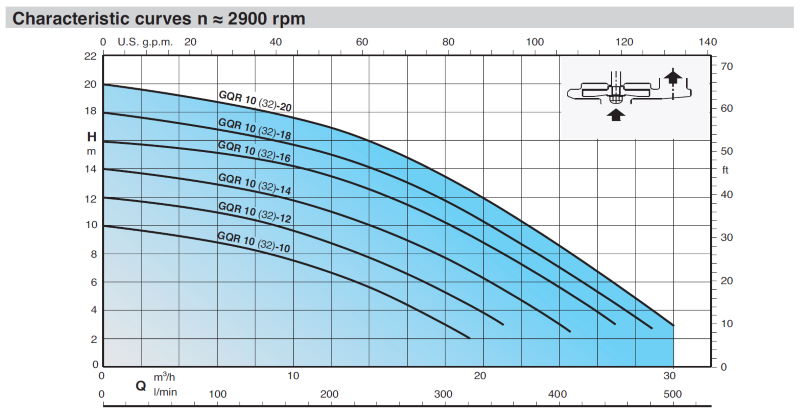

Calpeda-GQR-Performance-Curves

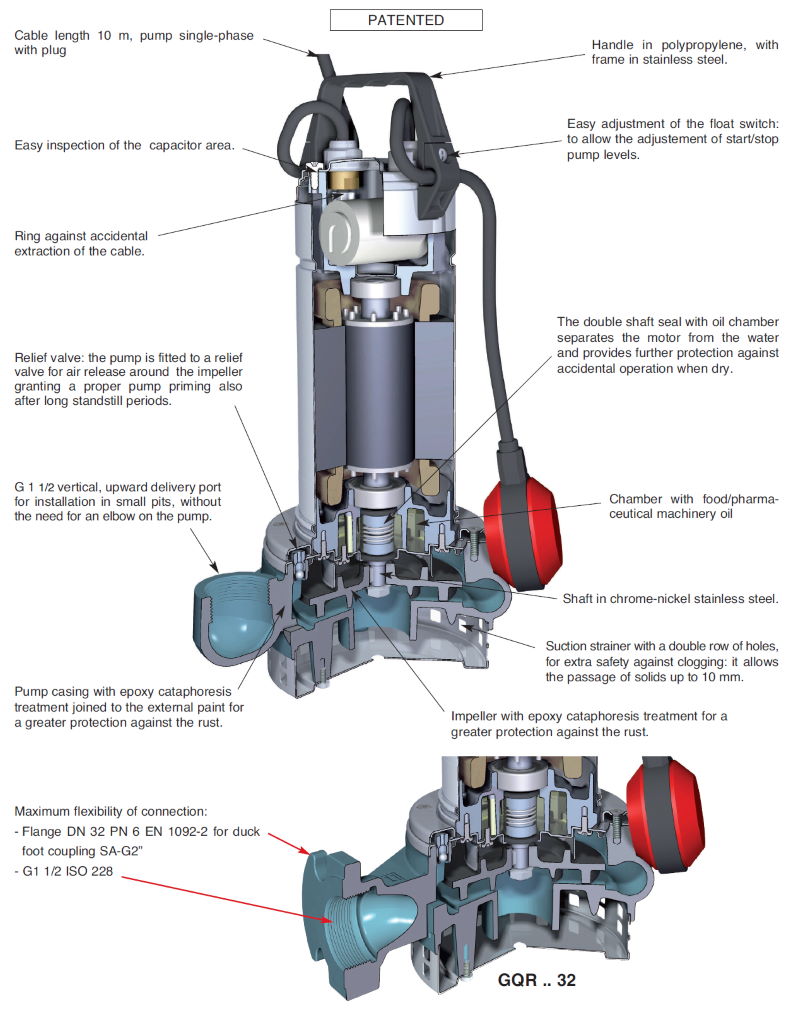

Calpeda-GQR-Features

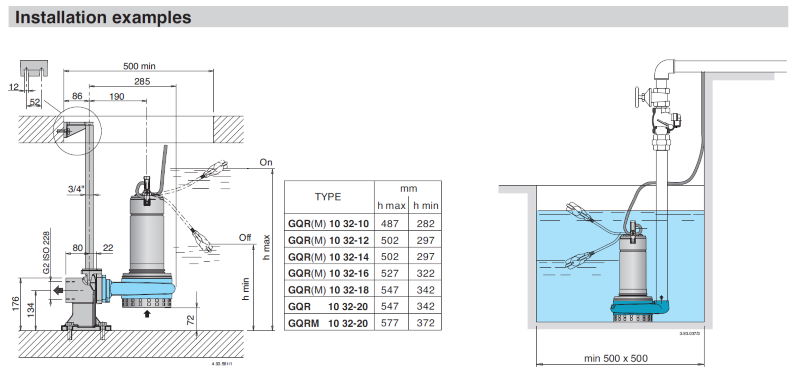

Calpeda-GQR-Installation

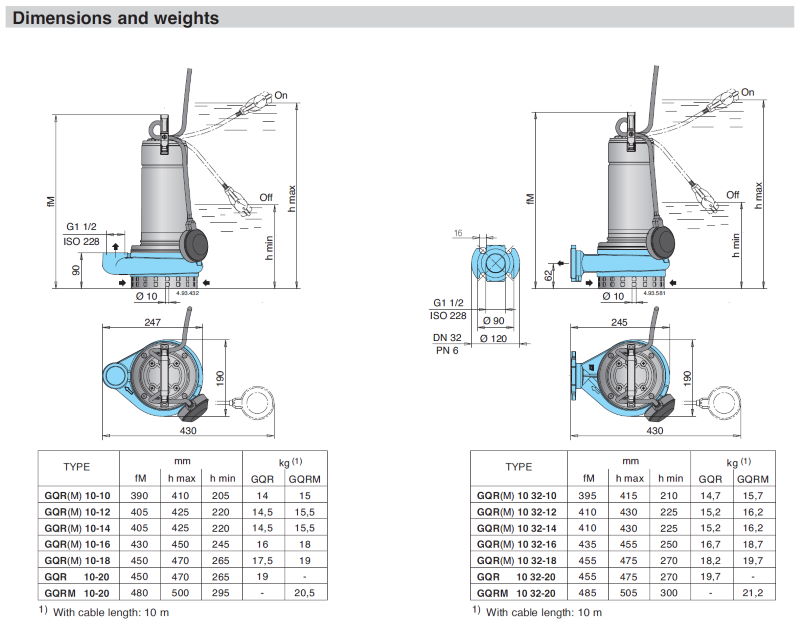

Calpeda-GQR-Dimensions

Construction

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GQR: with vertical threaded delivery port (G 1 1/2).
  • Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
  • Made in Italy
  • GQRM: built-in thermal protector, float switch, 10m cable, incorporated capacitor

Applications

  • For clean water containing solids up to 10 mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.

Operating Conditions

  • Liquid temperature up to 35 oC
  • Maximum immerson depth: 5m
  • Minimum immerson depth: 205 mm
  • Continuous duty (with submerged motor).

Motor:

  • 2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
  • Single-phase 230 V, with float switch and thermal protector.
  • Incorporated capacitor.
  • Insulation class F.
  • Protection IP X8 (for continuous immersion)
  • Triple impregnation humidity-proof dry winding.





Calpeda-GQR-Performance-Curves
Calpeda-GQR-Features
Calpeda-GQR-Installation
Calpeda-GQR-Dimensions
