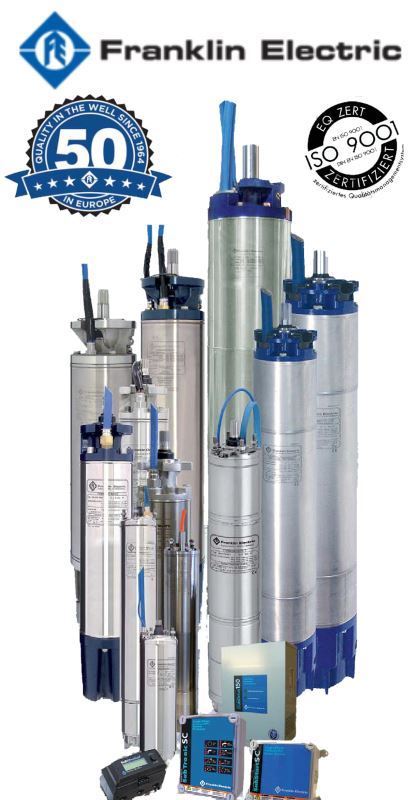

Franklin Electric 4" Submersible Motors

These motors are built for dependable operation in 4 inch diameter or larger water wells.

Casting
:
304 SS Over Iron or 316 SS
Single-Phase
:
230 V 50 Hz
Three-Phase
:
380-415 V 50 Hz
Power
:
0.5 - 10 HP
Well Dimension
:
4"
Call for pricing
Manufacturer: Franklin Electric
Delivery date 3-10 business days
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
+ -

Franklin Electric 4" Encapsulated Submersible Motors

Built in ISO 9001/14001 certified facilities for outstanding performance in 4" or larger water wells.

The single phase PSC motor has been electrically optimized to offer reliable pump starting over a wide range of incoming voltages. It should ideally be combined to the Franklin Electric SubStart/ SubTronicSC control boxes for maximum system performance, protection and warranty.

Standard Motor Design Specifications:

  • Hermeticallysealedstator.Antitrack,selfhealingstatorresinpreventsmotorburnout, mechanically supports the winding and provides fast heatdissipation.
  • High efficiency electrical design (low operation cost, cool runningwinding)
  • Removable water bloc leadconnector
  • Cable material according to drinking water regulations (VDE / ACS / KTWapproved)
  • No-wear, water lubricated radial and thrust bearings for 100% maintenance freeoperation
  • Non-contaminating FES 93 fillingliquid
  • Various agency approvals for use in drinkingwater

Pollution Recovery Motor Version Specifications:

  • Fluorelastomere (Viton®) rubberparts
  • Special Polyuretane (PUR) leadassemblies
  • 304 graded stainless steel as standard, 316SS as anoption

Brackish Water Motor Version Specifications:

  • For use in water that has more salinity than fresh water, but not as much as seawater.
  • The novel Franklin Electric Brackish Water Motor proposes a cost-effective solution wherever standard 4" motors are not giving sufficient service life

Technical specification:

  • PSC motor range: 0,25 – 2,2kW
  • 4" NEMA flange
  • Rotation: CCW facing shaft end (CW upon request)
  • Degree of protection: IP68
  • Insulation: Cl.B
  • Rated ambient temperature: 30°C
  • Required cooling flow: min. 0,08m/s
  • Max. starts/hr.: 20, equally distributed
  • Mounting: vertical to horizontal, shaft upwards
  • Voltage tolerance 50Hz from nominal: -10% / +6%
  • Protection requirements: EN 61947-4-1

Options:

  • Motor cable VDE, KTW approved ( 1,5m; special lengths available)
  • Motors with factory- installed lead in Single Packing
  • Built in lightning arrestors
  • Built in overload protection
  • Alternative material executions
  • Motor sets including control box, lead and splice kit

* PLEASE CHECK BELOW PRODUCT CATALOGUES TO IDENETIFY REQUIRED MOTOR MODEL AND CONTACT US TO GET A QUOTE.

 Franklin Electric 4" Submersible Motors General Catalogue

 Franklin Electric 4" Submersible Super Stainless (304 SS) Motors Catalogue

 Franklin Electric 4" Submersible High Thrust (316 SS) Motors Catalogue

Franklin Electric 4" Encapsulated Submersible Motors

Built in ISO 9001/14001 certified facilities for outstanding performance in 4" or larger water wells.

The single phase PSC motor has been electrically optimized to offer reliable pump starting over a wide range of incoming voltages. It should ideally be combined to the Franklin Electric SubStart/ SubTronicSC control boxes for maximum system performance, protection and warranty.

Standard Motor Design Specifications:

  • Hermeticallysealedstator.Antitrack,selfhealingstatorresinpreventsmotorburnout, mechanically supports the winding and provides fast heatdissipation.
  • High efficiency electrical design (low operation cost, cool runningwinding)
  • Removable water bloc leadconnector
  • Cable material according to drinking water regulations (VDE / ACS / KTWapproved)
  • No-wear, water lubricated radial and thrust bearings for 100% maintenance freeoperation
  • Non-contaminating FES 93 fillingliquid
  • Various agency approvals for use in drinkingwater

Pollution Recovery Motor Version Specifications:

  • Fluorelastomere (Viton®) rubberparts
  • Special Polyuretane (PUR) leadassemblies
  • 304 graded stainless steel as standard, 316SS as anoption

Brackish Water Motor Version Specifications:

  • For use in water that has more salinity than fresh water, but not as much as seawater.
  • The novel Franklin Electric Brackish Water Motor proposes a cost-effective solution wherever standard 4" motors are not giving sufficient service life

Technical specification:

  • PSC motor range: 0,25 – 2,2kW
  • 4" NEMA flange
  • Rotation: CCW facing shaft end (CW upon request)
  • Degree of protection: IP68
  • Insulation: Cl.B
  • Rated ambient temperature: 30°C
  • Required cooling flow: min. 0,08m/s
  • Max. starts/hr.: 20, equally distributed
  • Mounting: vertical to horizontal, shaft upwards
  • Voltage tolerance 50Hz from nominal: -10% / +6%
  • Protection requirements: EN 61947-4-1

Options:

  • Motor cable VDE, KTW approved ( 1,5m; special lengths available)
  • Motors with factory- installed lead in Single Packing
  • Built in lightning arrestors
  • Built in overload protection
  • Alternative material executions
  • Motor sets including control box, lead and splice kit

* PLEASE CHECK BELOW PRODUCT CATALOGUES TO IDENETIFY REQUIRED MOTOR MODEL AND CONTACT US TO GET A QUOTE.

 Franklin Electric 4" Submersible Motors General Catalogue

 Franklin Electric 4" Submersible Super Stainless (304 SS) Motors Catalogue

 Franklin Electric 4" Submersible High Thrust (316 SS) Motors Catalogue
