Previous productDuCaR Atom 42 Dust Suppress...

Next productDuCaR Atom 42 Metal PC

Photos Uploaded by Users:

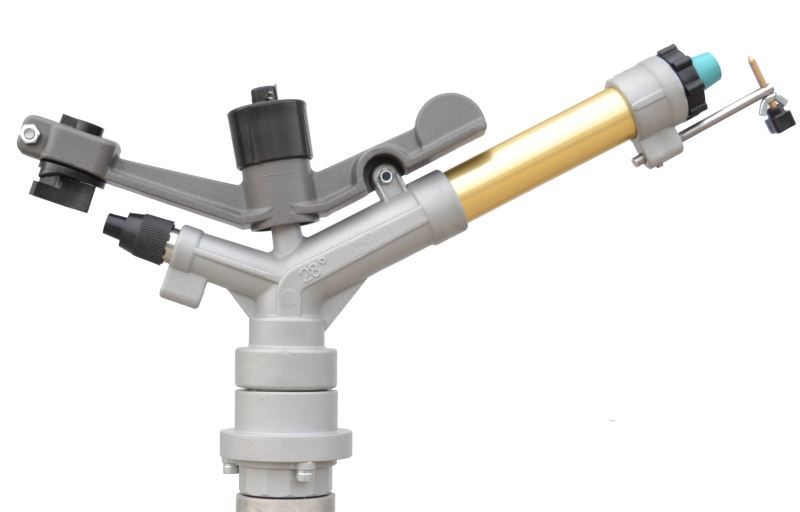

DuCaR Atom 42 Metal

1 review(s) | Add your review

Double-sided, high flow & long throw ranges, full circle irrigation sprinkler.

Water Input

2" Female BSP

Working Pressure

29 - 85 psi

Water Flow

183 - 850 l/min

Shooting Radius

24 - 47 m

Free Nozzles

8 mm (Sec.) 12, 14, 16, 18, 20, 22 mm

Body Angle

28°

Box Dimensions

55x34x12 cm

Weight

3.5 kg

Sprayers

Material

Cast-Iron, Aluminium & Brass

Made in

Turkey

Price: £154.00

Old price: £180.00

Manufacturer: DuCaR Sprinklers

SKU: Atom42

Shipping

Delivery date 3-10 business days

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Make Your Sprinkler Set:

DuCaR 2" Wheeled Cart with Extendable Legs [+£180.00]
DuCaR 2" 4-Legged Connection Stand with Quick Coupling [+£180.00]

Qty:

+ -

IrrigationBox proudly presents DuCaR Sprinklers! As an authorised distributor of DuCaR Sprinklers, we provide wide range of high quality irrigation equipment and guarantee 100% satisfaction!

Ducar ATOM 42 Metal is a NEW model of our mid volume sprinklers which provides long shooting range with perfectly even distribution and uniformity at a great price!

Some unique benefits of DuCaR ATOM 42 Metal sprinkler:

Comes with 12, 14, 16, 18, 20, 22 mm nozzles
2 Trajectories
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 90m diameter!
Lays down 11 to 51 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	.47	2	29	24	79	183,3	11	48	1384	0,34	7,9
12	.47	3	44	29	95	225	13,5	59	1962	0,48	6,9
12	.47	4	58	31	102	258,3	15,5	68	2461	0,61	6,3
14	.55	3	44	30	98	283,3	17	75	2461	0,61	6,9
14	.55	4	58	31	102	325	19,5	86	2826	0,70	6,9
14	.55	5	72	35	115	366,7	22	97	3215	0,79	6,8
16	.62	3	44	32	105	350	21	92	2826	0,70	7,4
16	.62	4	58	35	115	400	24	106	3419	0,84	7,0
16	.62	5	72	39	125	450	27	119	3846	0,95	7,0
18	.70	3	44	33	108	433,3	26	114	3017	0,75	8,6
18	.70	4	58	36	118	508,3	30,5	134	3630	0,90	8,4
18	.70	5	72	40	131	566,7	34	150	4298	1,06	7,9
20	.78	3	44	35	115	500	30	132	3630	0,90	8,3
20	.78	4	58	39	128	608,3	36,5	161	4298	1,06	8,5
20	.78	5	72	43	141	666,7	40	176	5024	1,24	8,0
22	.86	4	58	40	131	683,3	41	181	4298	1,06	9,5
22	.86	5	72	44	144	766,7	46	203	5024	1,24	9,2
22	.86	6	85	47	154	850	51	225	5805	1,43	8,8

Download Catalogue

Comes with 12, 14, 16, 18, 20, 22 mm nozzles
2 Trajectories
Runs on pressure range between 29 to 85 psi
Full and part (angle-adjusted) circle irrigation
Irrigates up to 90m diameter!
Lays down 11 to 51 tons of water per hour
Dynamic or attached jet breakers
Provides perfectly even distribution with its ADJUSTABLE jet breaker from the sprinkler all the way out to the end of the throw
Replaceable nozzle ends and two-hole water outlets allow you to irrigate your field excellently by using minimum water
Great for any field crops and vegetables
Auto BRAKE system for keeping slow rotation speed on high pressure.
Full METAL Body and BRASS housing.

Technical Specifications

mm	inch	atm	psi	m	feet	l/min	m³/h	G.P.M	m²	acre	mm/h
Nozzle Diameter		Pressure		Jet Length		Capacity			Values for a single sprinkler
Nozzle Diameter		Pressure		Jet Length		Capacity			Irrigated Area		Rainfall per hour
12	.47	2	29	24	79	183,3	11	48	1384	0,34	7,9
12	.47	3	44	29	95	225	13,5	59	1962	0,48	6,9
12	.47	4	58	31	102	258,3	15,5	68	2461	0,61	6,3
14	.55	3	44	30	98	283,3	17	75	2461	0,61	6,9
14	.55	4	58	31	102	325	19,5	86	2826	0,70	6,9
14	.55	5	72	35	115	366,7	22	97	3215	0,79	6,8
16	.62	3	44	32	105	350	21	92	2826	0,70	7,4
16	.62	4	58	35	115	400	24	106	3419	0,84	7,0
16	.62	5	72	39	125	450	27	119	3846	0,95	7,0
18	.70	3	44	33	108	433,3	26	114	3017	0,75	8,6
18	.70	4	58	36	118	508,3	30,5	134	3630	0,90	8,4
18	.70	5	72	40	131	566,7	34	150	4298	1,06	7,9
20	.78	3	44	35	115	500	30	132	3630	0,90	8,3
20	.78	4	58	39	128	608,3	36,5	161	4298	1,06	8,5
20	.78	5	72	43	141	666,7	40	176	5024	1,24	8,0
22	.86	4	58	40	131	683,3	41	181	4298	1,06	9,5
22	.86	5	72	44	144	766,7	46	203	5024	1,24	9,2
22	.86	6	85	47	154	850	51	225	5805	1,43	8,8

Download Catalogue

Products specifications

Attribute name	Attribute value
Body Angle	Medium Body Angle (23 ° to 30 °)
Water Input	2"
Circle	Full
Minimum Required Pressure	29 psi (2 bar)
Maximum Working Pressure	85 psi (6 bar)
Minimum Required Water Flow	185 l/min
Maximum Water Flow	850 l/min
Minimum Shooting Range	21 - 25 m
Maximum Shooting Range	41 - 50 m
Box Dimension	55x34x12 cm
Nozzles	12, 14, 16, 18, 20, 22 mm
Weight	3.4 kg
